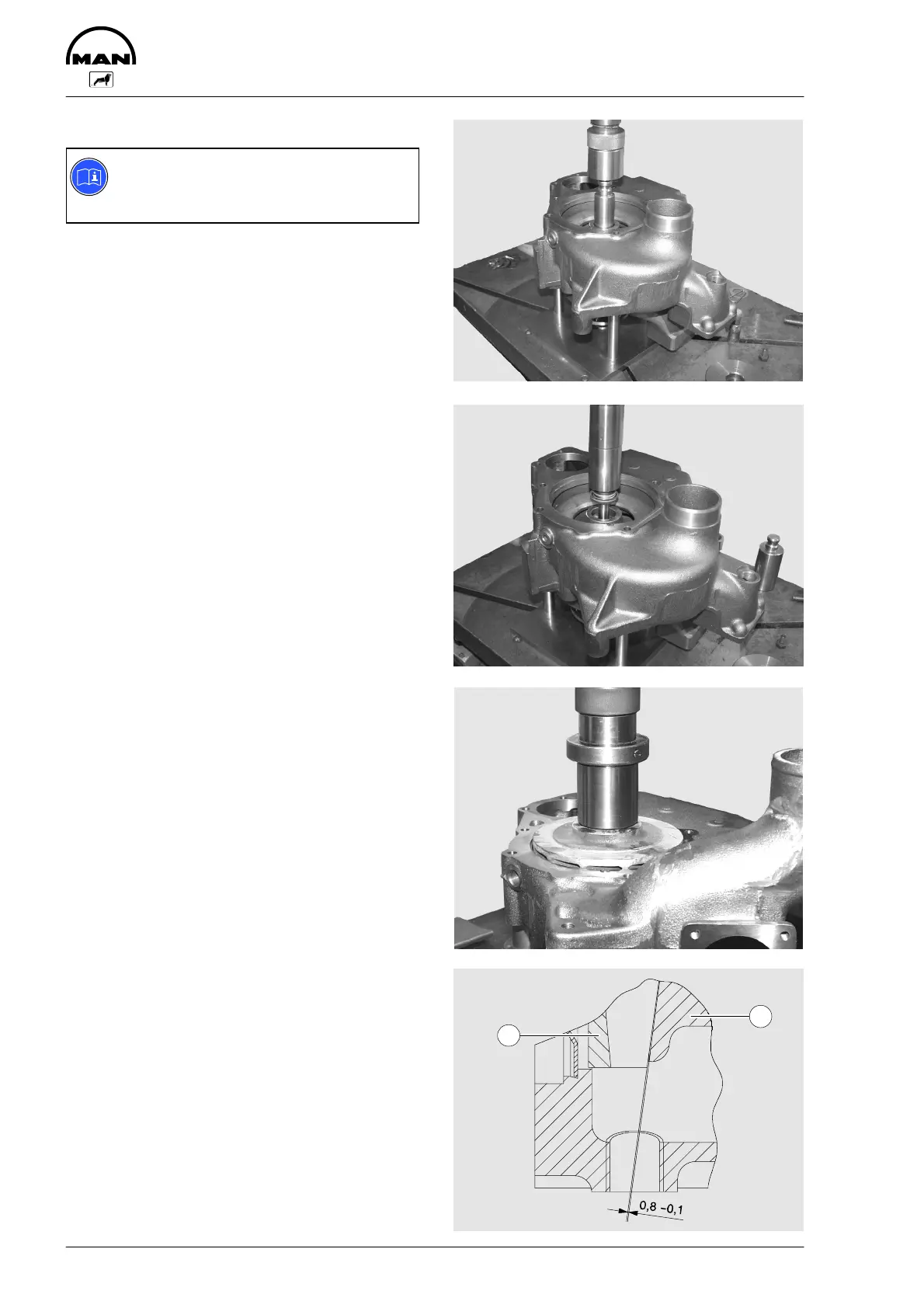

Repairing coolant pump with high-temperature and
low-temperature parts D 2866 LUE 605
52
Fig. 16
Note:
For subsequent steps brace the bearing
shaft.
Press grooved ball bearing 6003 into position using
special tool.
Fig. 17
Press in new mechanical seal (pos.6) with press-
fitting sleeve (special tool) until it stops.
Observe installation note for seal on page, 47.
Fig. 18
Slowly press impeller on to bearing shaft to ensure
correct gap.
Fig. 19
For this purpose an inspection hole closed up with
a screw plug (M16x1.5) is provided on the bottom
of the water pump housing.
1 Impeller
2 Water pump housing
2
1
