Page 15Version 2023-06-15 Fire damper - FDMR
TPM 140/19
■ Design with the communication and supply device BKN
230-24MP and actuator BF 24TL-TN-ST for connection to
MP-Bus.
■ BKN 230-24MP supplies to the intelligent actuators of fire
dampers BF 24TL-TN-ST decentrally needed power supply.
■ In this way can be realize long MP-Bus communications
(up to 800 m).
■ Up to 8 Bus nodes can be parallel connected and
controlled by Master device (DDC with interface).
■ Device can be equipped with an external smoke detector.
Design .62
Communication and supply device BKN 230-24MP
Nominal voltage AC 230 V 50/60Hz
Power consumption 8 W (including actuator)
Dimensioning 10 VA (including actuator)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-30°C … +50°C
-40°C … +80°C
Connection - net
- motor (BF ...-Top)
- net MP
- actuating mechanism (variable)
- Top-Line PC-Tool (via ZIP-RS232)
cable 1 m with EURO plug
4-pole connector
screw terminals 2-pole
screw terminals 2-pole
3-pole connector

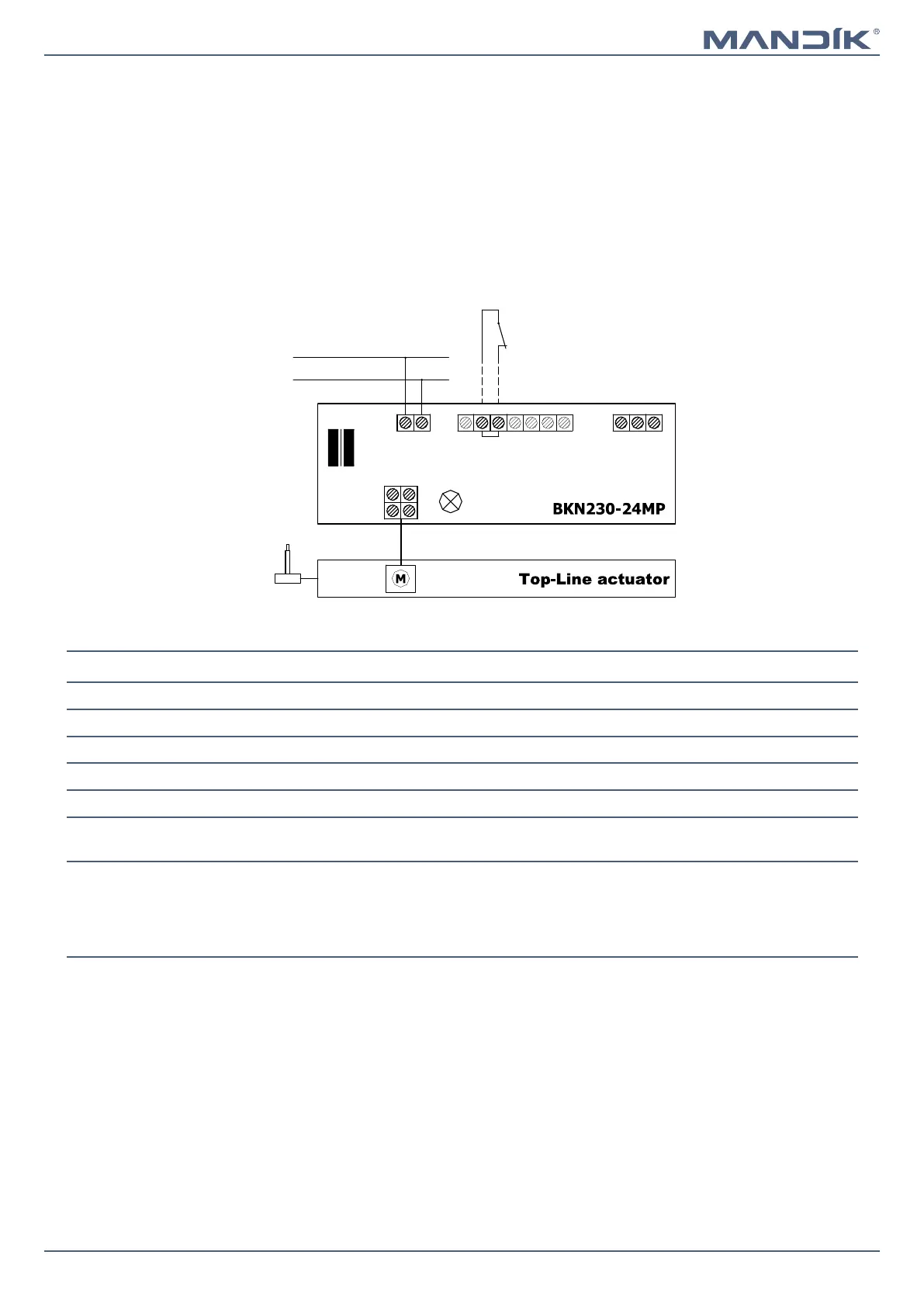

Communication and supply device BKN 230-24MP
PC Tool
1
7
Ya
24VGND
MP
1) 2)
24V
AC230 V
GND
MP
net MP-Bus
additional external conntact,
e.g. fire smoke detector
