Mandik FDMR - Page 32

Fire damper - FDMRPage 32 Version 2023-06-15
TPM 140/19
X
40...130
1 FDMR
2 Solid wall construction
3 Fire-resistant foam HILTI CFS-F FX
4 Stucco plaster
5 Clamp with threaded rod → see pages 87 to 89
6 Duct
■ For connection of following duct → see page 90
■ Installation is limited to DN 200 mm diameter
X
40...130
Ø
D
min. ØD+80
max. ØD+260
≥ 20

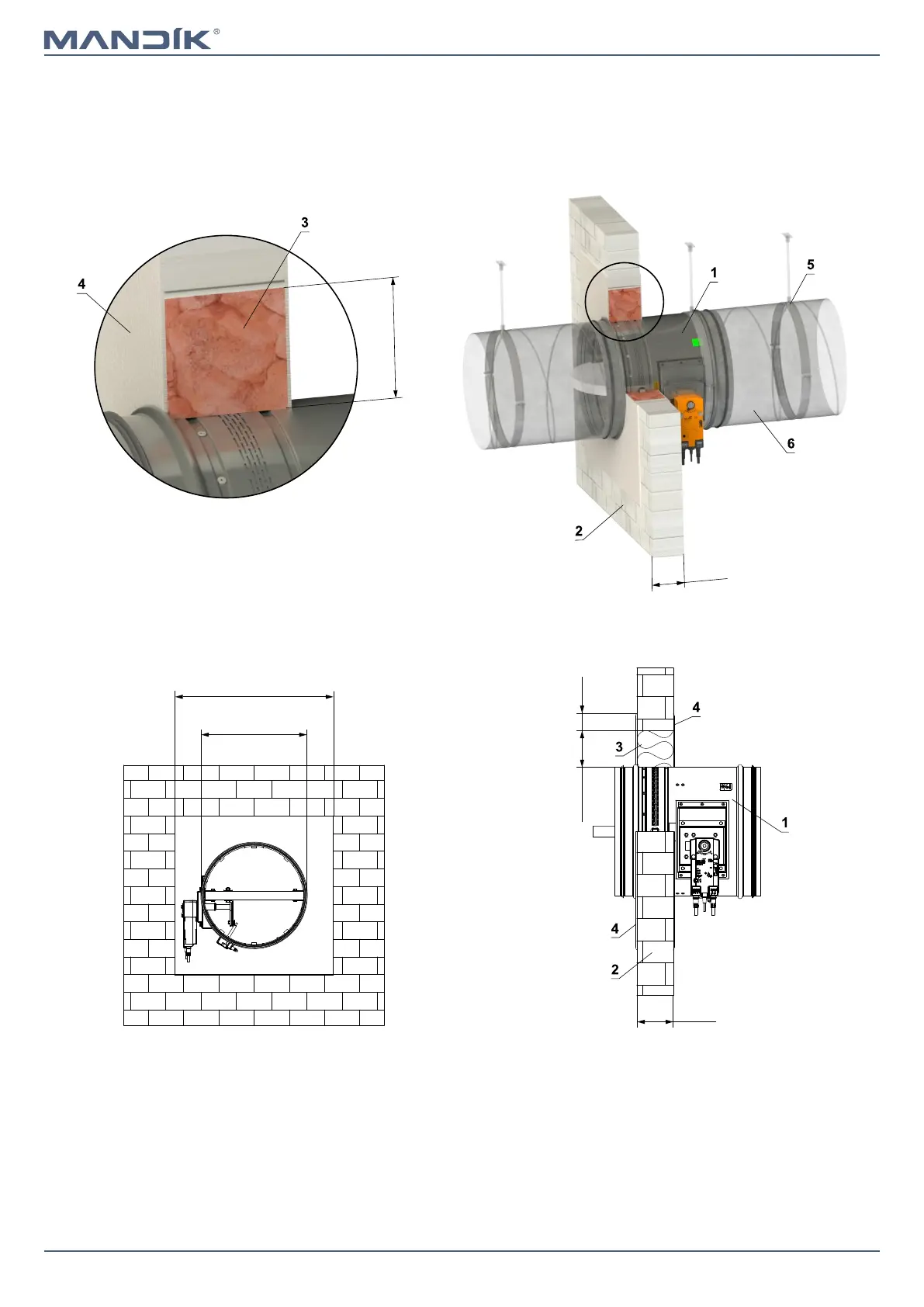

In solid wall construction - fire-resistant foam with stucco plaster
EIS 60
≥ 100
≥ 100
