Page 33Version 2023-06-15 Fire damper - FDMR
TPM 140/19
1 FDMR
2 Solid wall construction
3 Solid ceiling construction
4 Mortar or gypsum
5 Mineral wool board - min. density 140 kg/m
3
(e.g. PROMAPYR-T150, ROCKWOOL HARDROCK / STEPROCK HD)
6 Duct

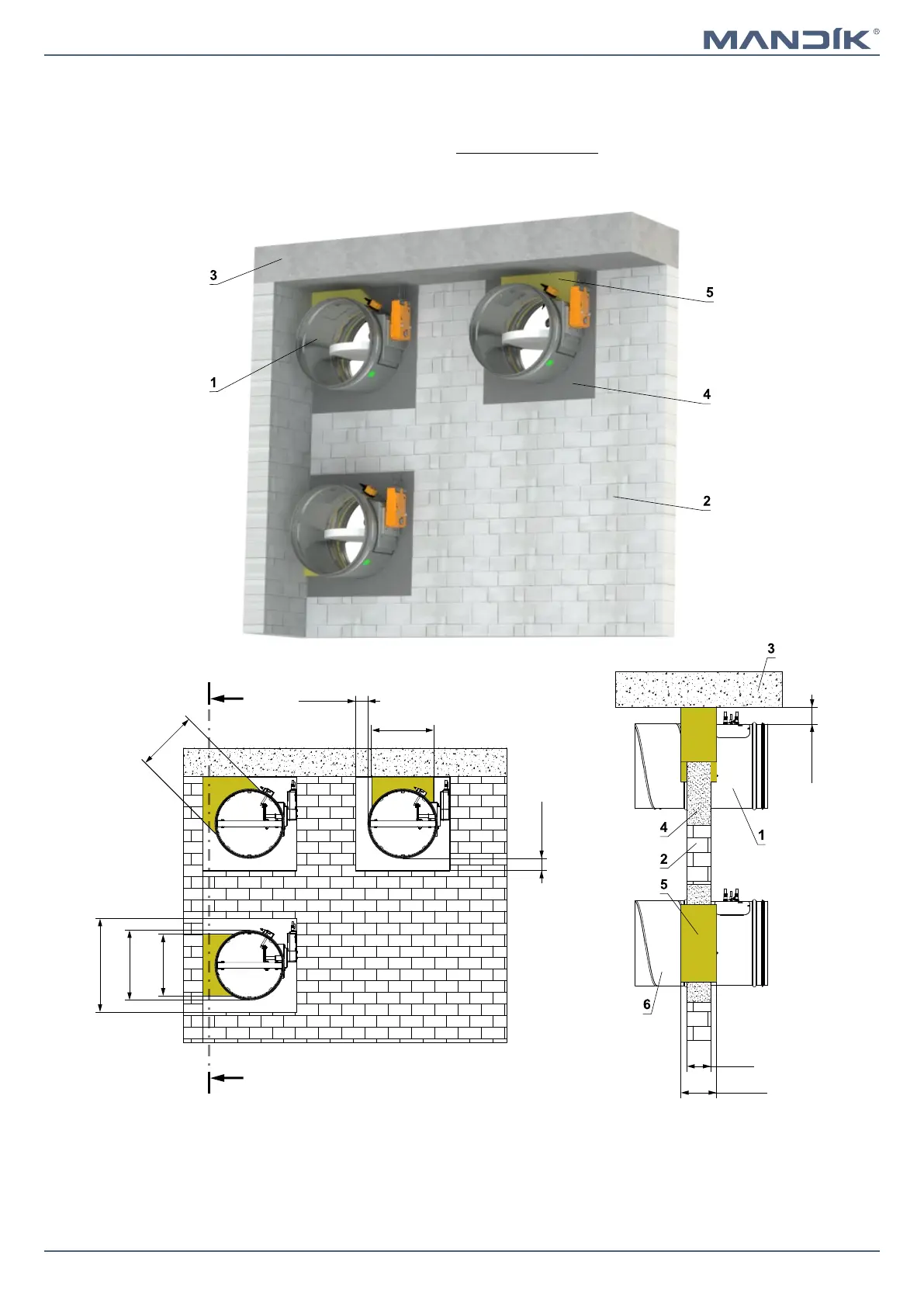

In solid wall construction - installation next to the wall/ceiling - mortar or gypsum + mineral wool
■ For connection of following duct → see page 90
■ Conditions of this installation are also valid for the installation in Solid ceiling construction
■ Penetration is filled with mortar or gypsum + mineral wool (shape, according to the location of the damper). Fix the mineral wool with
glue (e.g. Promat K84 or equivalent) to the construction and damper casing
EIS 90
≥ 100
A-A
35...150
≥ 150
⑤
A
A
35...150
35...150
min. Ø
D+70
max.
Ø
D+300
Ø
D
Ø
D-20
⑤
ØD-20
⑤
ØD-20
⑤
