Page 7Version 2023-06-15 Fire damper - FDMR
TPM 140/19
Actuator BELIMO BFL 230-T
Actuator BELIMO BFL 24-T(-ST)
BELIMO - 4 N.m

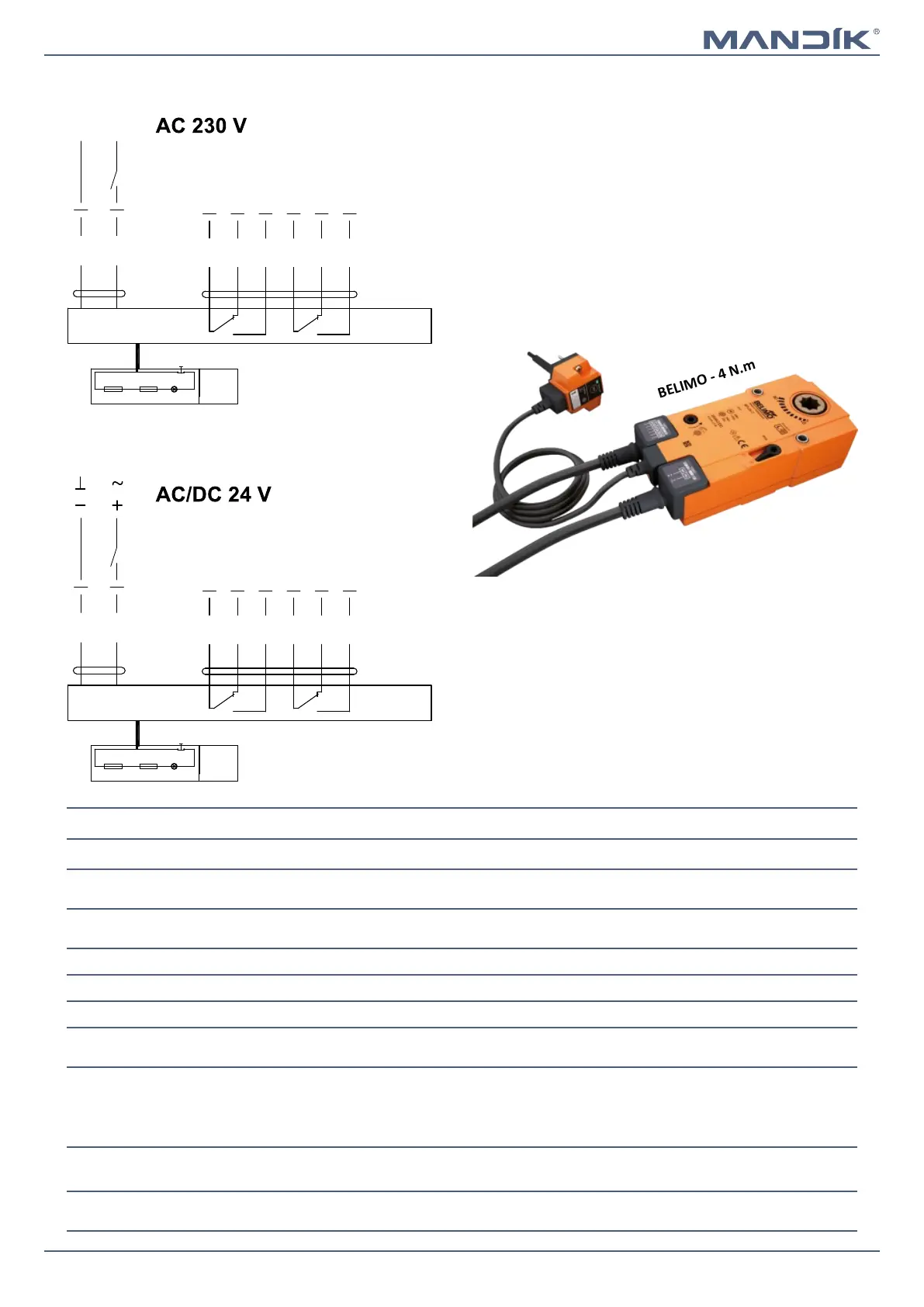

Actuator BELIMO BFL 230-T(-ST), BFL 24-T(-ST)
Actuator BELIMO - 4 Nm/ 3 Nm Spring BFL 230-T(-ST) BFL 24-T(-ST)
Power voltage
AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - in operation
- in rest position
3,5 W
1,1 W
2,5 W
0,8 W
Dimensioning 6,5 VA (Imax 4 A @ 5 ms) 4 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
< 60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +55°C
The safe position will be attained up to max. +75°C
-40°C … +55°C
Connection - supply/control
- auxiliary switch
cable 1 m, 2 x 0,75 mm² (BFL 2xx-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm² (BFL 2xx-T-ST) with 6-pin plug-in connectors
Response temperature thermal fuse
duct outside temperature +72°C
duct inside temperature +72°C
S2S1 S3 S5S4 S6
2
1
<5°
<80°
N L1
BAT
Tf
Tf
LED
S2S1 S3 S5S4 S6
2
1
<5°
<80°
BAT
Tf
Tf
LED
