Fire damper - FDMRPage 8 Version 2023-06-15
TPM 140/19
Actuator BELIMO BFN 24-T(-ST)
BELIMO - 9 N.m
Actuator BELIMO BFN 230-T(-ST), BFN 24-T(-ST)
Actuator BELIMO - 9 Nm/ 7 Nm Spring BFN 230-T(-ST) BFN 24-T(-ST)
Power voltage
AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - in operation
- in rest position
5 W
2,1 W
4 W
1,4 W
Dimensioning 10 VA (Imax 4 A @ 5 ms) 6 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
< 60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +55°C
The safe position will be attained up to max. +75°C
-40°C … +55°C
Connection - supply/control
- auxiliary switch
cable 1 m, 2 x 0,75 mm² (BFN 2xx-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm² (BFN 2xx-T-ST) with 6-pin plug-in connectors
Response temperature thermal fuse
duct outside temperature +72°C
duct inside temperature +72°C

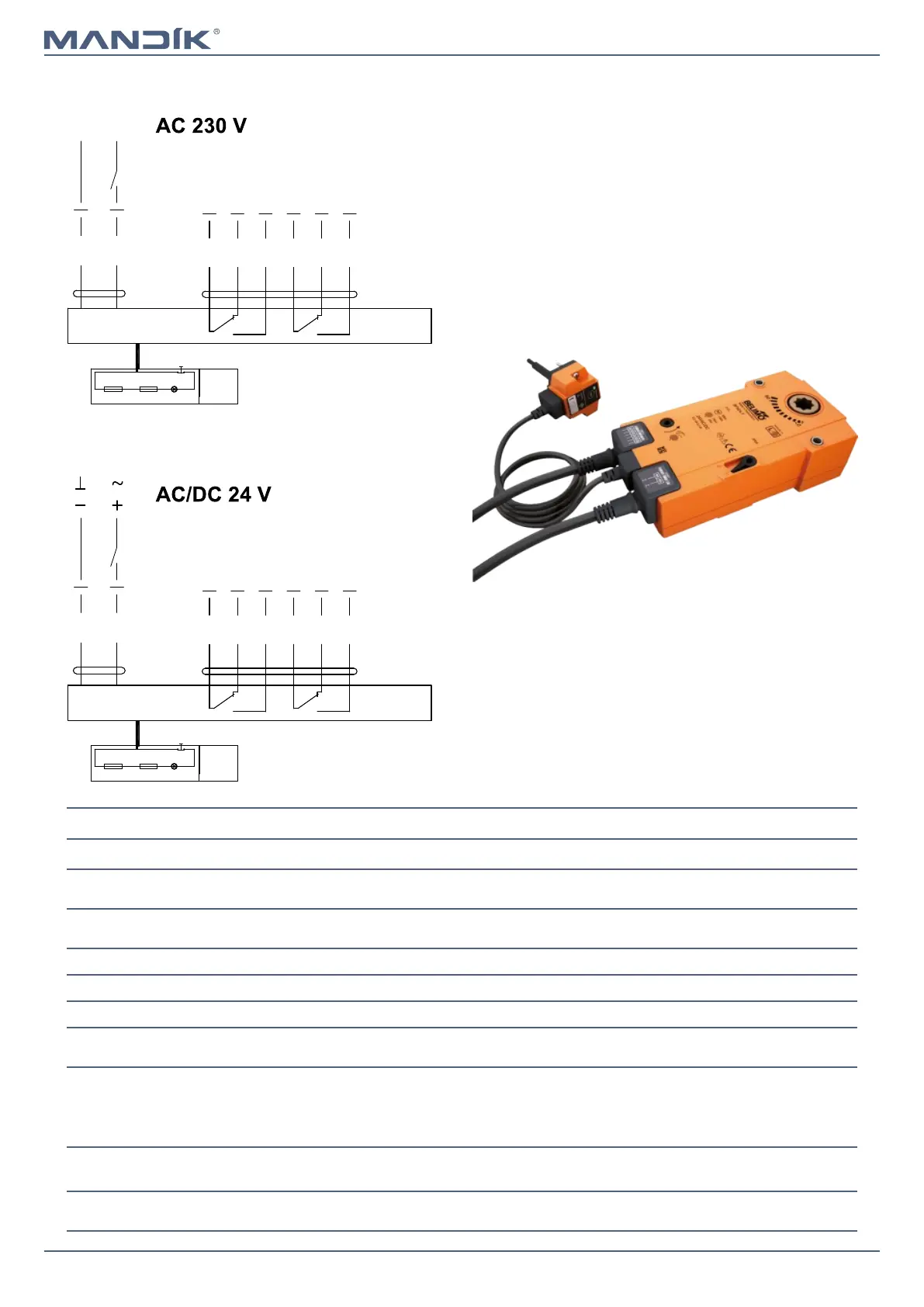

Actuator BELIMO BFN 230-T
S2S1 S3 S5S4 S6
2
1
<5°
<80°
N L1
BAT
Tf
Tf
LED
S2S1 S3 S5S4 S6
2
1
<5°
<80°
BAT
Tf
Tf
LED
