Actuator BELIMO BF 230-TN
Actuator BELIMO BF 230-TN(-ST), BF 24-TN(-ST)
Actuator BELIMO - 18 Nm/ 12 Nm Spring BF 230-TN(-ST) BF 24-TN(-ST)
Power voltage
AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - in operation
- in rest position
8,5 W
3 W
7 W
2 W
Dimensioning 11 VA (Imax 8,3 A @ 5 ms) 10 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
120 s
~ 16 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +50°C
The safe position will be attained up to max. +75°C
-40°C … +50°C
Connection - supply/control
- auxiliary switch
cable 1 m, 2 x 0,75 mm² (BF 2xx-TN-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm² (BF 2xx-TN-ST) with 6-pin plug-in connectors
Response temperature thermal fuse
duct outside temperature +72°C
duct inside temperature +72°C
BELIMO - 18 N.m

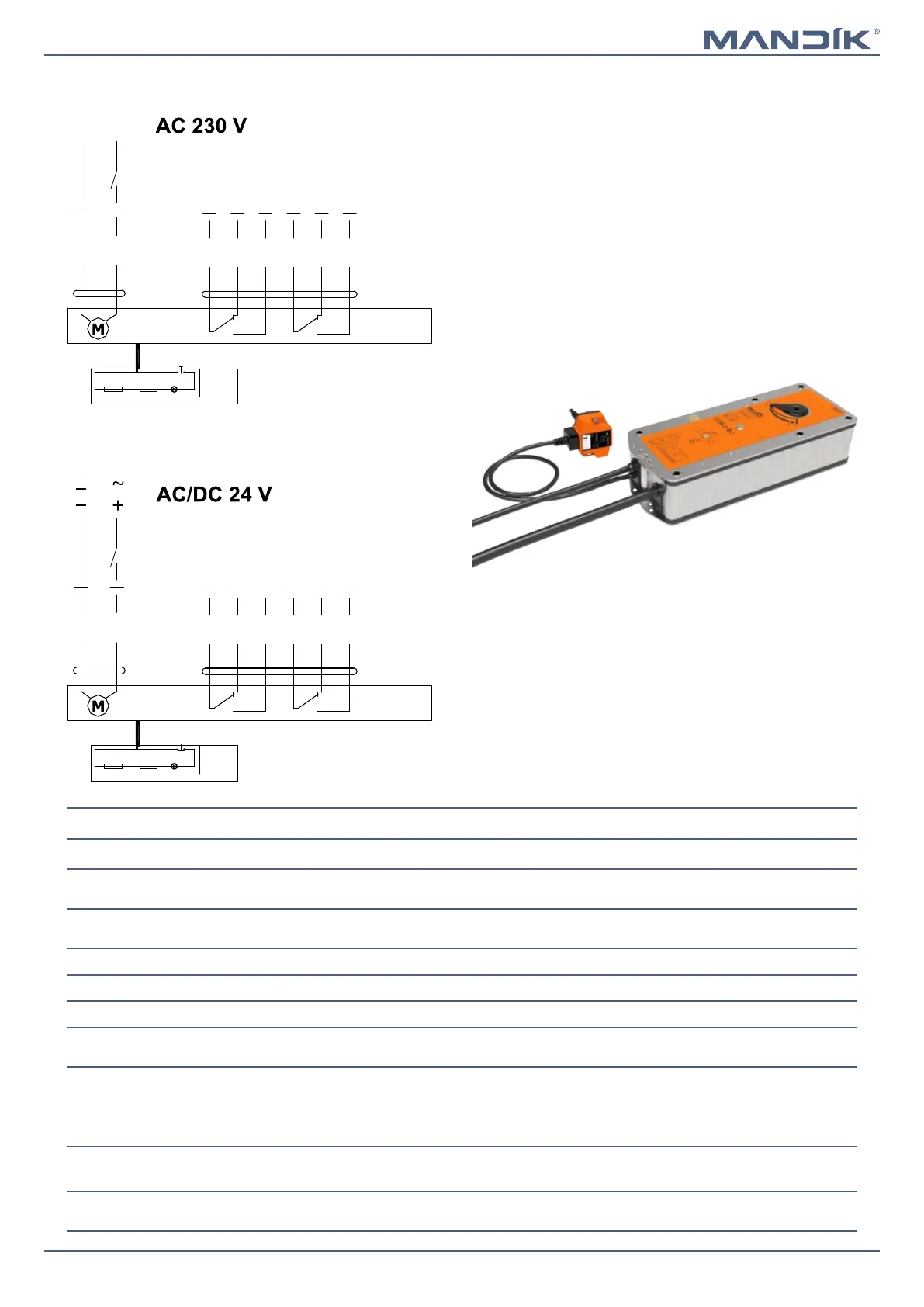

Actuator BELIMO BF 24-TN (-ST)
S2S1 S3 S5S4 S6
2
1
<5°
<80°
N L1
BAT
Tf
Tf
LED
S2S1 S3 S5S4 S6
2
1
<5°
<80°
BAT
Tf
Tf
LED
