E 300 Operator Interface
M&R Printing Equipment, Inc. - Glen Ellyn, Illinois
58
Based on your pre-determined Message and Error
code listing, enter the corresponding code number,
then press the “ENTER” key. Your selections are
now saved in the PLC memory.
The next menu item is “SERVICE DATA”. This menu
item is used by M&R Technical Support Personnel
ONLY and cannot be accessed by the system
Operator. This menu item creates and stores in the
PLC memory a complete operational history of the
system.
DATE/TIME
The next menu item is “DATE/TIME”. In this menu
item you may adjust the on-board clock and calen-
dar for the proper display. The date is displayed as
day of the week, month of the year, date and year. To
adjust the date, press the numerical keys for the
month. For example, for January 12, 1998, first press
the “0” key, then press the “1” key. The display will
change to “01” for the month indication. For the date
press first the “1” key, then press the “2” key. The
display will read “12” for the date indication.
To enter the current year, press the “9” key, then
press the “8” key. Now press the “ENTER” key. The
day of the week will automatically be displayed
based on the information entered for month, date
and year.
To change the time of day, press the “ARROW
DOWN” key. The frame around the time of day dis-
play will start to flash confirming its selection. Use
the numerical keys to enter the current hour and min-
utes of the day, then press the “ENTER” key. Upon
pressing the “ENTER” key, you will be prompted to
select either “AM” or “PM”.
Use the “ARROW UP” or “ARROW DOWN” keys to
select either “AM” or “PM, then press the “ENTER”
key once again. Your selection for the date and time
of day are now saved in the PLC memory. (See
Figure 19 on next page

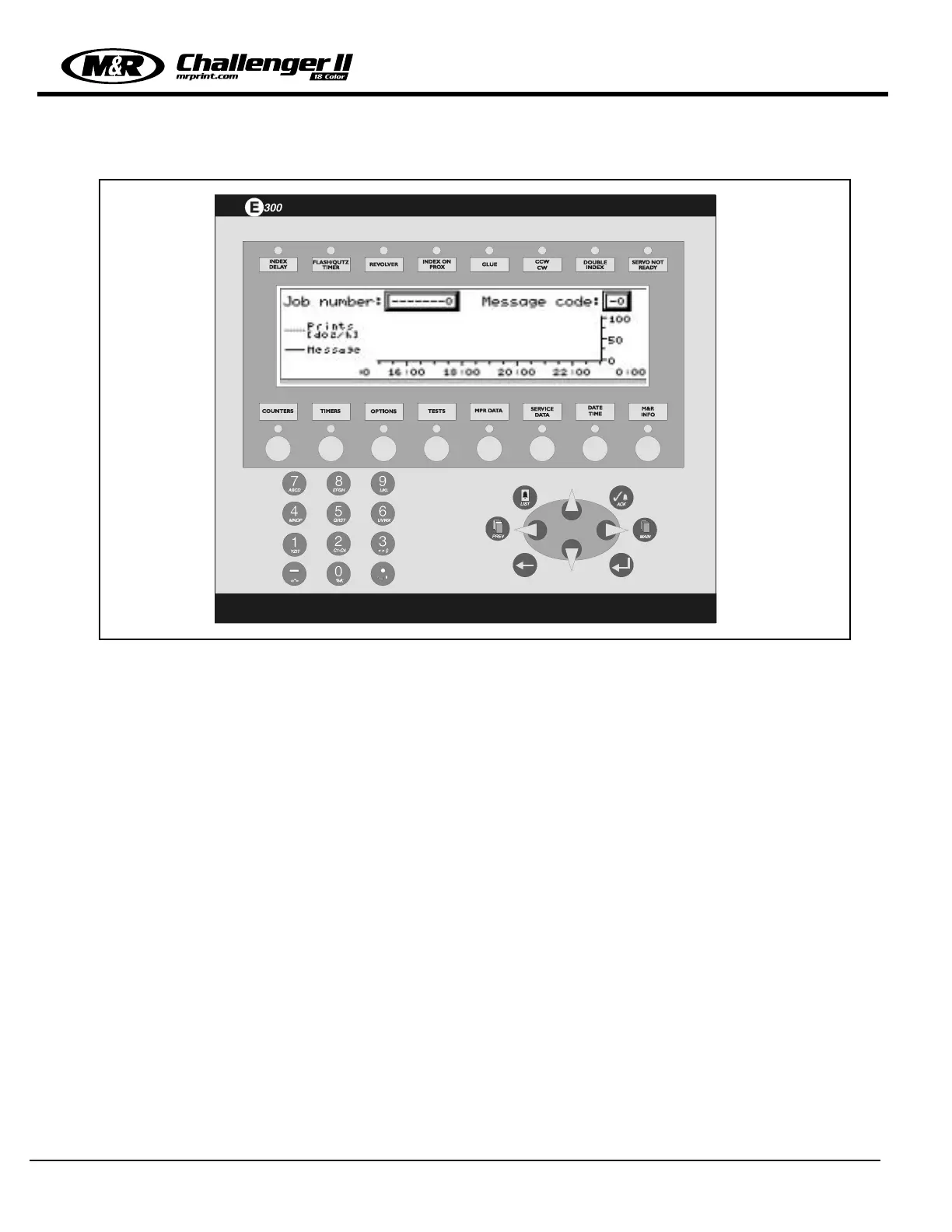

Figure 18
