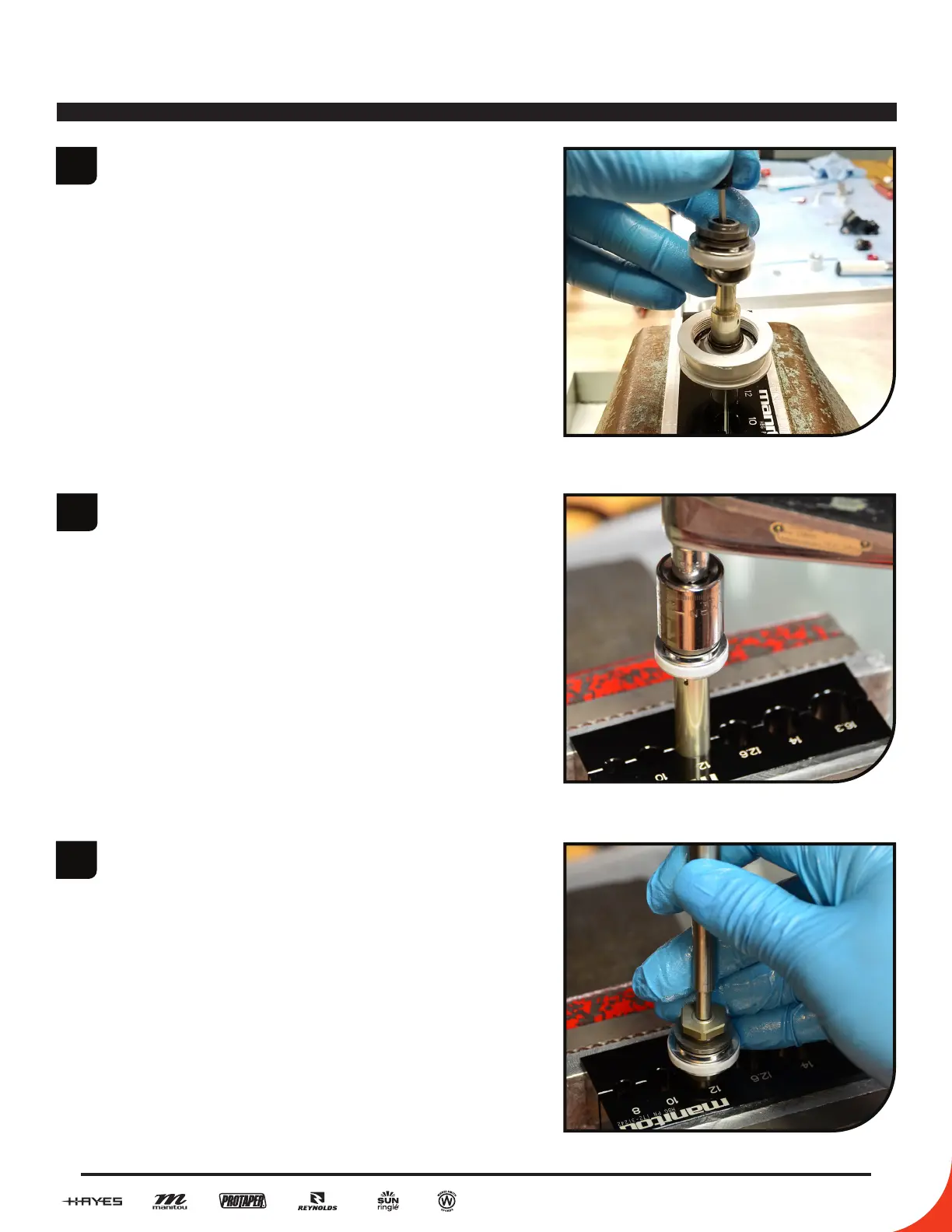

MARA PIGGYBACK SERVICE MANUAL
With a small drop of red
Loctite, replace the main
shock nut on the bottom of the
main shaft. Torque to 5nm
(45in-lb). *Excess Loctite can
contaminate the assembly)
11
12
shaft and air piston assembly
Reinstall the piston and
top shim stack by gently
sliding the tool into the main
shaft. Be careful to maintain
the correct sequence of
components.
10
From the bottom of the main
piston install a new inner shaft
O-Ring. (PN 101-500-100)
