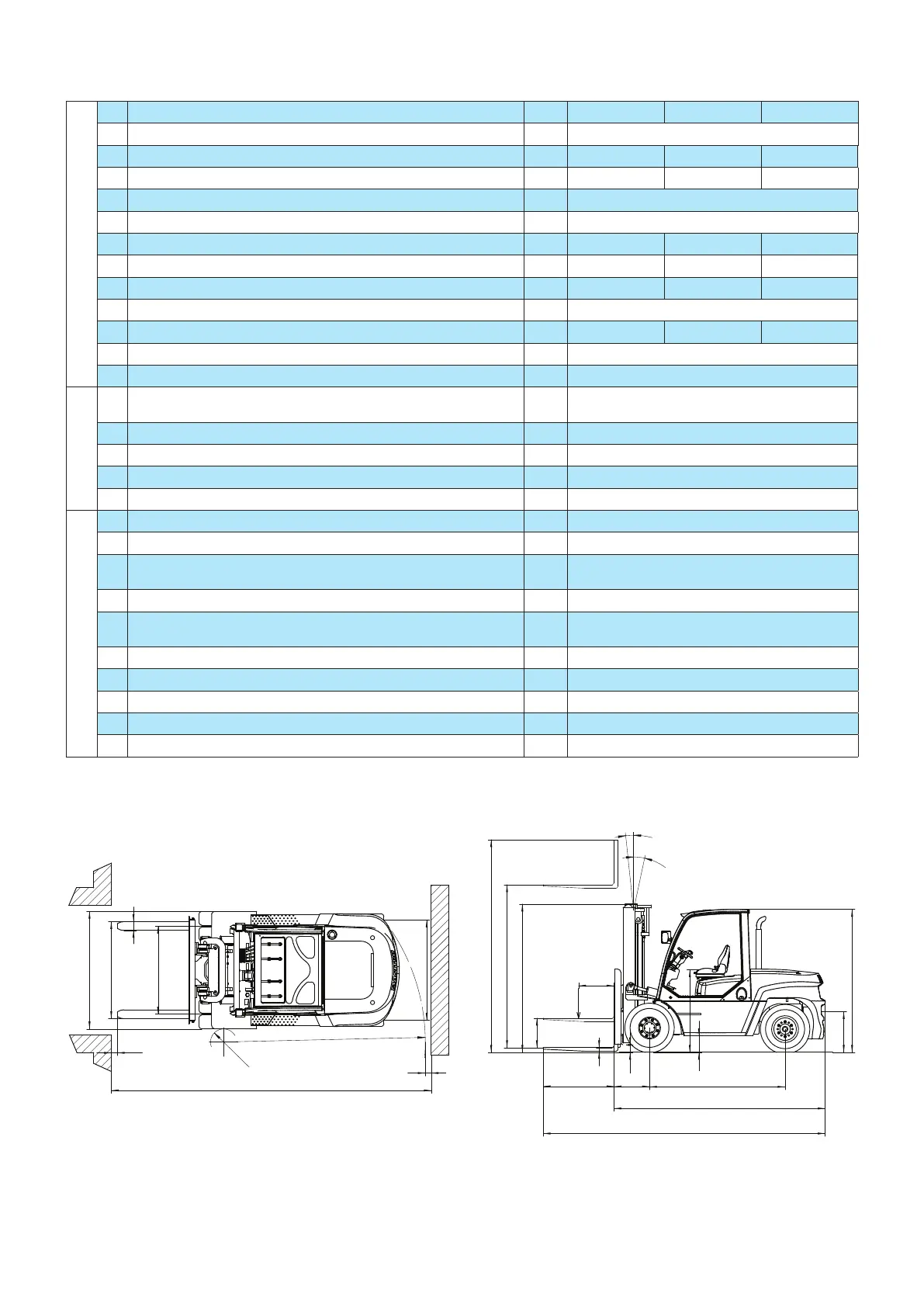

PERFORMANCES
5.1
Speed of travel laden (1st/2nd)
km/h
9.5 / 27 9.5 / 27 9.5 / 26
5.1.1
Speed of travel unladen (1st/2nd)
km/h
9.5 / 29
5.2
Speed of rise laden
m/s
0.47 0.46 0.41
5.2.1
Speed of rise unladen
m/s
0.49 0.49 0.46
5.3
Speed of lowering laden
m/s
0.48
5.3.1
Speed of lowering unladen
m/s
0.42
5.5
Nominal towing power laden
N
65000 65000 68000
5.5.1
Nominal towing power unladen
N
25440 26720 27500
5.7
Slope laden
%
48 43 36
5.7.1
Slope unladen
%
-
5.9
Acceleration time laden
s
5.4 5.5 5.5
5.9.1
Acceleration time unladen
s
-
5.10
Service brake Hydraulics
ENGINE SPECIFICATION
7.1
Engine manufacturer Cummins QSB3.3
7.2
Useful power
kW
74
7.3
Rated speed
rpm
2200
7.4
Number of pistons/Capacity
cm³
4 / 3,300
7.5
Fuel consumption
(according to VDI cycle)
l/h
7.2
MISCELLANEOUS
8.2
Working hydraulic pressure for attachments
Bar
195
8.3
Oil flow rate for attachments
l/min
55
8.4
Measured/guaranteed mean noise level at the ear of the operator
(when travelling) (as per standard EN 12053)
db (A)
88
8.5
Towing hook / DIN type -
-
Average weighted acceleration on driver's body
(as per standard NF EN 13059)
m/s²
0.9
-
Battery
V/Ah
2 x 12 / 90
-
Fuel tank capacity
l
110
-
Transmission manufacturer Hangcha
-
Type Powershift
-
Number of gears (Fwd / Rev) 2 / 2
2-11
b13
Wa
β~
α~
h2
h4
100
b1
e
b3
b10
b11
Ast
100
s
h7
h3
h1
c
h6
m2
m1
l
x
y
l2
l1
h10
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
