Manitou MI-X 50L D C ST3A S2 User Manual

MI . . G S2

IMPORTANT

Dispose of the drain oil in an ecological manner.

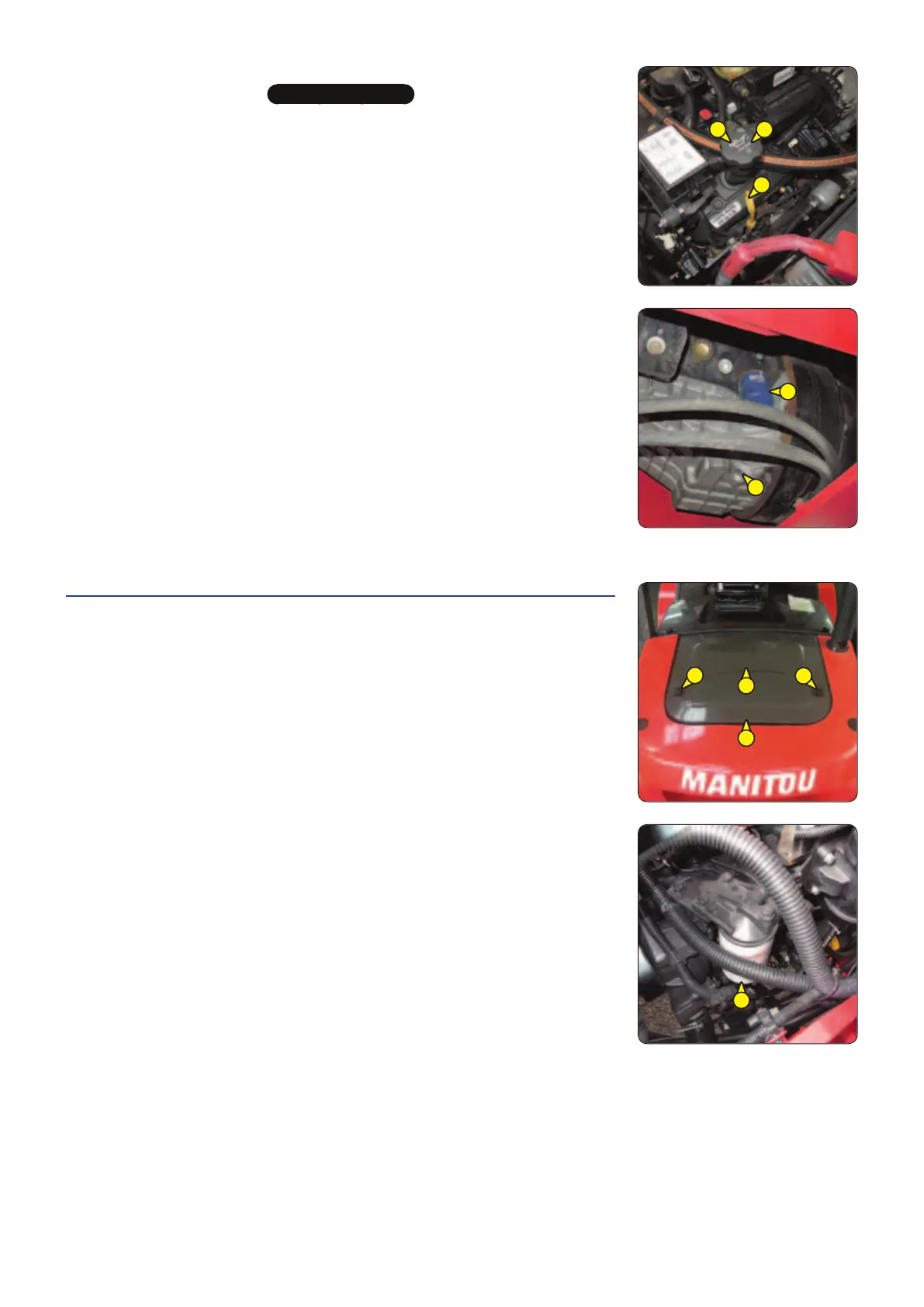

- Open the engine cover ( DESCRIPTION: INSTRUMENTS AND CONTROLS).
- Clean the areas around the plugs and oil filter.
DRAINING THE OIL
- Remove the filler plug 1 to ensure that the oil is drained properly.
- Place a container under drain port 2 and unscrew the plug.
REPLACEMENT OF THE FILTER
- Unscrew and discard the filter 3, together with its seal.
- Clean the filter holder with a clean, lint-free cloth.
- Lightly grease the seal before refitting the new filter (
 FILTER CARTRIDGES AND
BELTS) on its bracket.
- Tighten the oil filter (tightening torque 30N.m).
FILLING WITH OIL
- Refit and tighten the drain plug 2 (tightening torque 30 to 40 N.m).
- Fill up with oil ( LUBRICANTS AND FUEL) through filler port 4.
NOTE: For this operation, we recommend you use a funnel fitted with a hose.
- Wait a few minutes to allow the oil to flow into the sump.
- Start the engine and let it run for a few minutes.
- Check for possible leaks from the drain plug and the oil filter.
- Stop the engine; wait a few minutes
- Check the correct level between the two notches on dipstick 5.
- Top up the level if necessary.
REPLACE MI-X . . D C ST3A S2 Fuel filter
- Switch off the lift truck's ignition.
- Open the engine cover ( DESCRIPTION: INSTRUMENTS AND CONTROLS).
- Unscrew the thumbscrews 1 and remove the housing 2.
- Lift cover 3 to gain access to the fuel filter.
- Carefully clean the outside of the filter and its holder, to prevent dust from getting
into the system.
- Unscrew and discard the filter 1, together with its seal.
- Clean the inside of the filter head using a brush immersed in clean diesel oil.
- Lubricate the seal of the new filter ( FILTER CARTRIDGES AND BELTS).
- Refit the new filter onto its support bracket, hand-tighten it only and lock it with
a quarter-turn.
- Then replace the fuel pre-filter.
1
1
1
2
3
3 - 26
2
3
1
5
4
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
