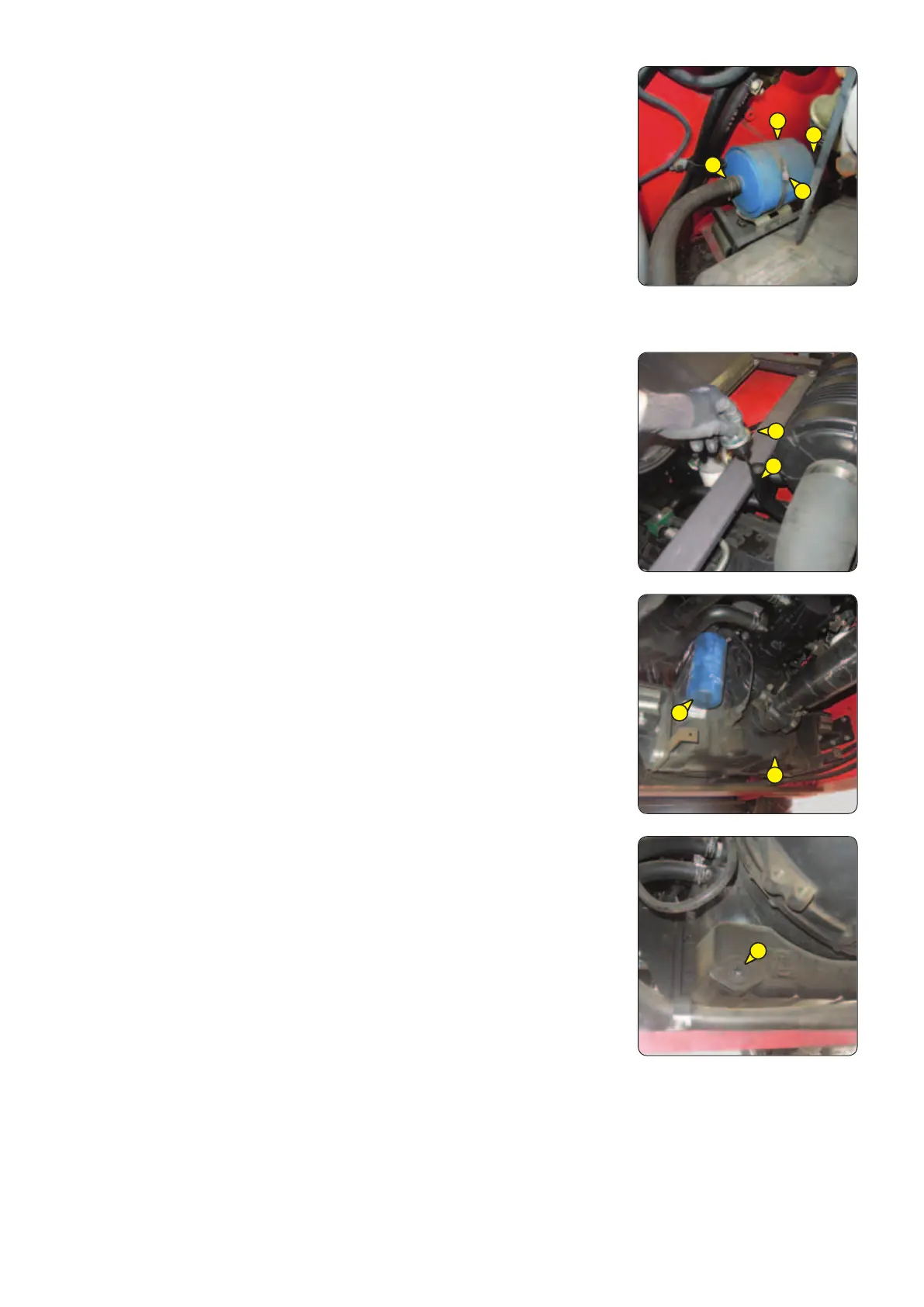

FILLING WITH OIL
- Fill up with oil ( LUBRICANTS AND FUEL) through filler port 8.
- NOTE: For this operation, we recommend you use a funnel fitted with a hose.
- Wait a few minutes to allow the oil to flow into the sump.
- Reinsert dipstick 4 and remove it again.
- Check the correct level between the two marks on the dipstick.
- Start the engine and let it run for a few minutes.
- Check for possible leaks.
- Stop the engine, wait a few minutes and check the level between the two marks.
- Top up the level if necessary.
MI . . D ST3B S2
DRAINING THE OIL
- Remove gauge 1 to ensure proper emptying.
- Place a container under drain plug (2) and unscrew the plug.
REPLACING THE OIL FILTER
- Unscrew and discard the filter 3, together with its seal.
- Lubricate the seal of the new filter (
 FILTER CARTRIDGES AND BELTS).
- Refit the new filter onto its support bracket, hand-tighten it only and lock it with
a quarter-turn.
CLEANING THE METAL OIL FILTER
- Unscrew the filter 4.
- Clean the filter with a compressed air jet.
- Refit the unit.
FILLING WITH OIL
- Fill up with oil (
 LUBRICANTS AND FUEL) through filler port 5.
- Wait a few minutes to allow the oil to flow into the sump.
- Reinsert dipstick 1 and remove it again.
- Check the correct level between the two marks on the dipstick.
- Start the engine and let it run for a few minutes.
- Check for possible leaks.
- Stop the engine, wait a few minutes and check the level on the dipstick.
- Top up the level if necessary.
3 - 31
7
6
5
6
2
3
4
5
1
647650 (19/02/2018)
M
I-X 50L/60/70 D C ST3A S2 / MI 50L/60/70 D ST3B S2 / MI 50L/60/70 G S2
