10
R8 PRO SERVICE GUIDE
4
5

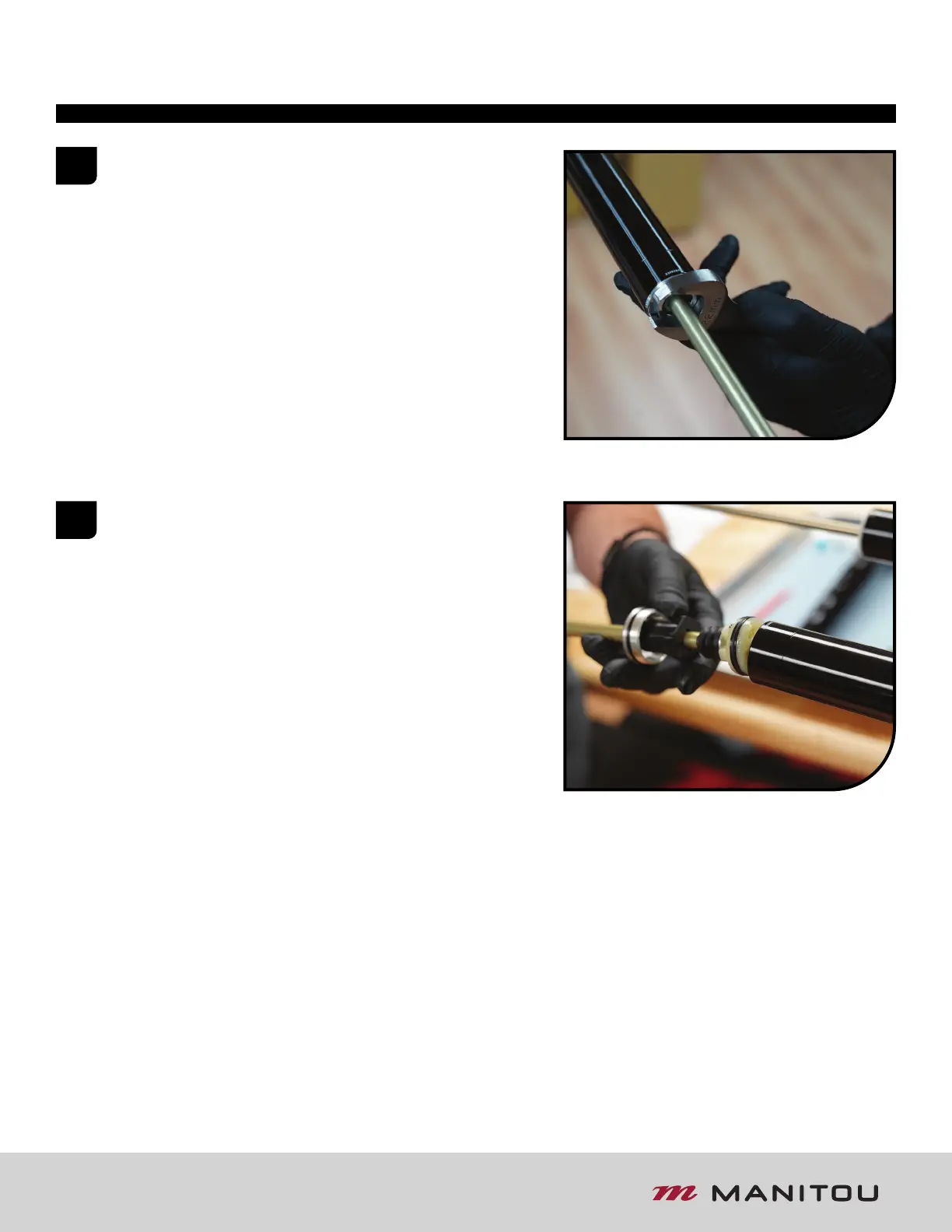

Invert the fork and use 22mm box end wrench to unthread
the air spring assembly from the stanchion.OR depress
valve on end of comp-rod with 2mm hex and stroke rod
to bottom. Slide 22mm deep-bore socket over threaded
adapter and unthread the air spring assembly
from the stanchion.
Remove Air Spring Assembly, clean with isopropyl, Inspect
seal for damage. Replace air piston seal 141-32155-K012. If
Travel change is need see page 27 before moving on.
AIR SPRING SERVICE
