R8 PRO CASTING INSTALLATION

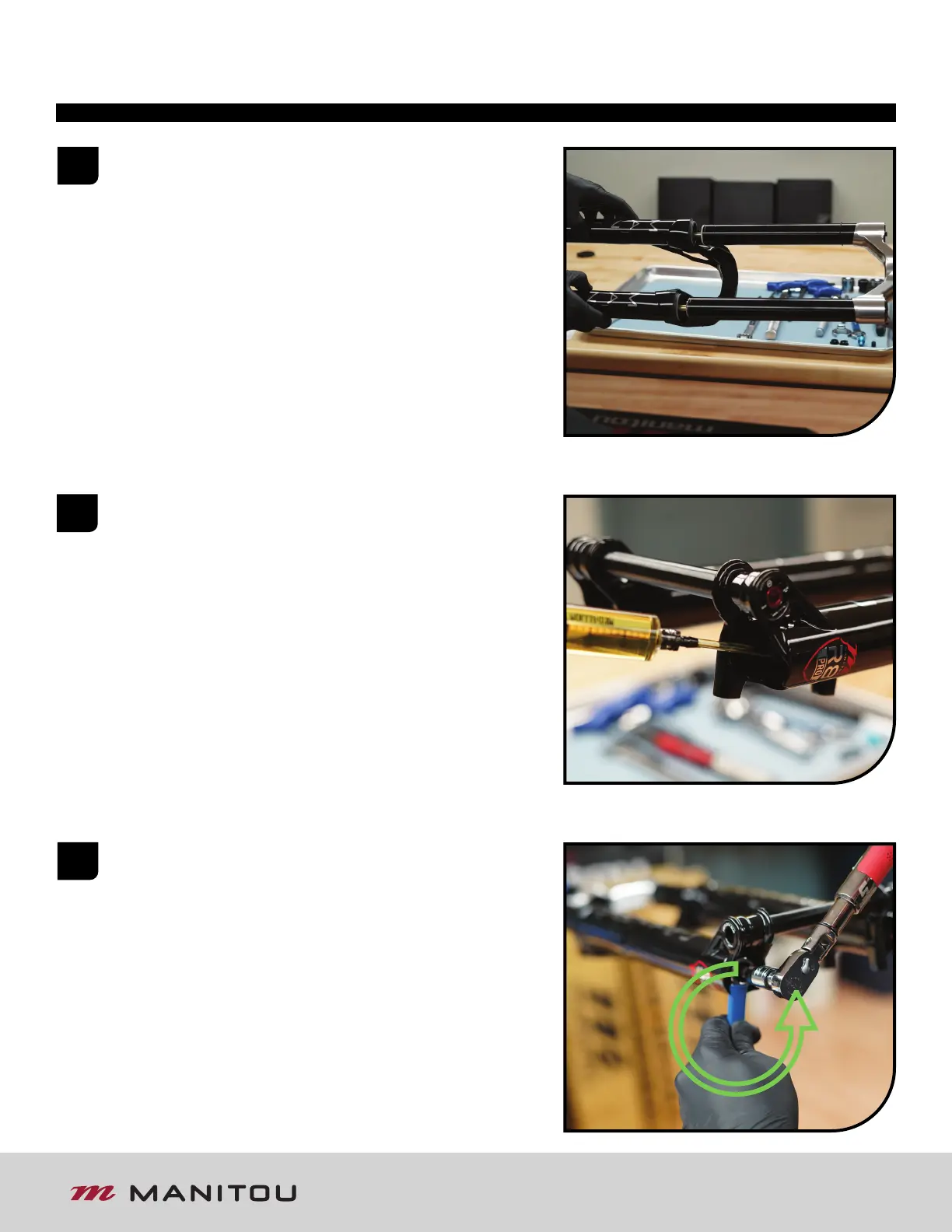

Slide casting onto the stanchion assembly. Only slide the
casting down about halfway at this point. Take care that
the seal lips do not fold over upon installation.
Insert 14cc of semi-bath (85-0022) into each casting leg.
Once the semi-bath is in the legs slide the casting the rest
of the way onto the stanchion assembly until the damper
and spring shaft adapters pass thru the end of the casting.
Some manual alignment may be needed.
Thread the lock-nut onto the damper shaft adapter. Holding
the lock-nut with a 14mm box wrench, use an 8mm Hex
wrench to tighten the rebound damper adapter to 35–40
in-lb [3.95–4.5 Nm] by turning them counter-clockwise.
Do not overtighten, doing so can damage the threads.
