25
R8 PRO SERVICE GUIDE
4

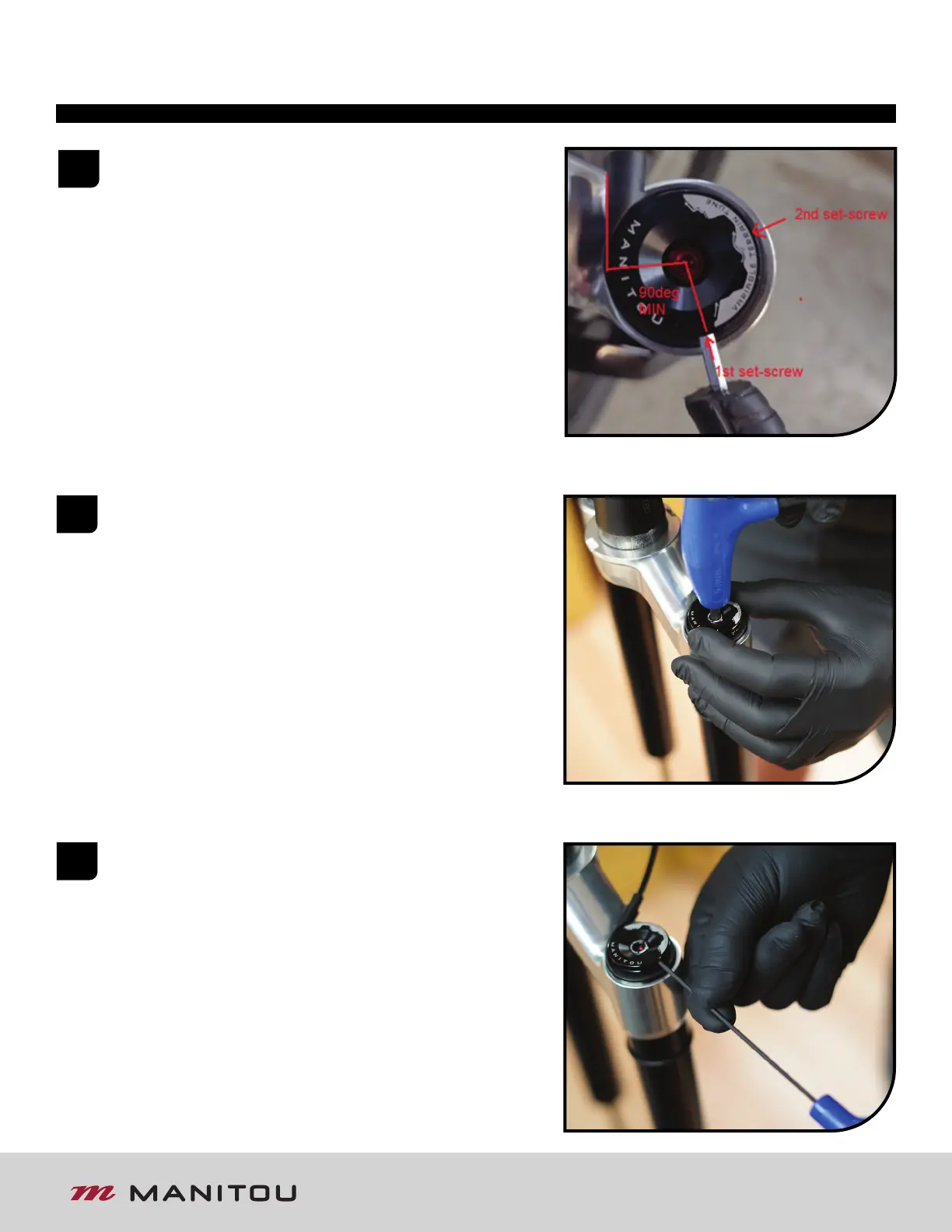

Check that there is 90 degree MIN between 1st set screw
and point perpendicular to the cable stop housing.
90 degrees is require for the knob to rotate MAX-to-MIN
5
6
Using 5mm hex wrench install and torque the retainer
nut to 0.5-0.7 N-M [4-6 lb-in].
Before assembling the remote cable, rotate the knob fully
CLOCKWISE using the 5mm hex wrench, compress the fork
to ensure the lock-out is functioning correctly.
Insert the remote cable thru the cable stop housing and
along the knob track. Using a 2mm hex partially insert
a set-screw into the first threaded hole on the remote
knob. Tension the cable then torque the set screw to
0.5-0.7 N-M [4-6 lb-in].
R8 PRO REMOTE KNOB INSTALL
