31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
4
22

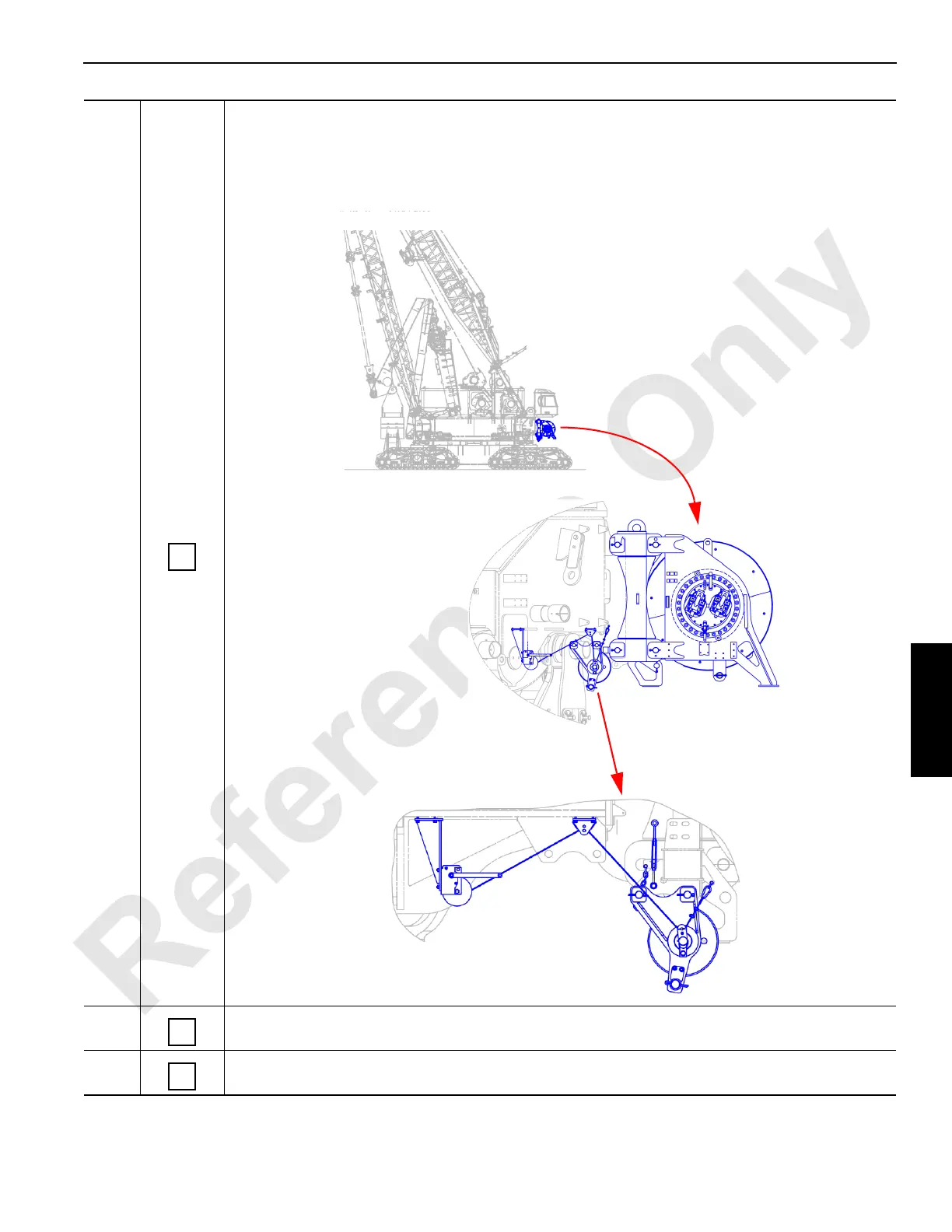

Information below from drawing A19443, Sheet 7:
Drum 5 (A) attached to the crane.
Drum 6 (rigging winch) (B) relocated to the Drum 5 frame.
If either of the above has not been done, then see Section 4 of the 31000 Operator Manual for
instructions.
23
Remove block from the lower point. See Section 4 of the 31000 Operator Manual for instructions.
24
Remove upper boom point. See Section 4 of the 31000 Operator Manual for instructions.
A
B
A
B
FIGURE 4-1
