31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
4
Relocate the Strut Cap from the Jib Strut to the Main Strut
Step Action
27
Information below from drawing A19443, Sheet 15:

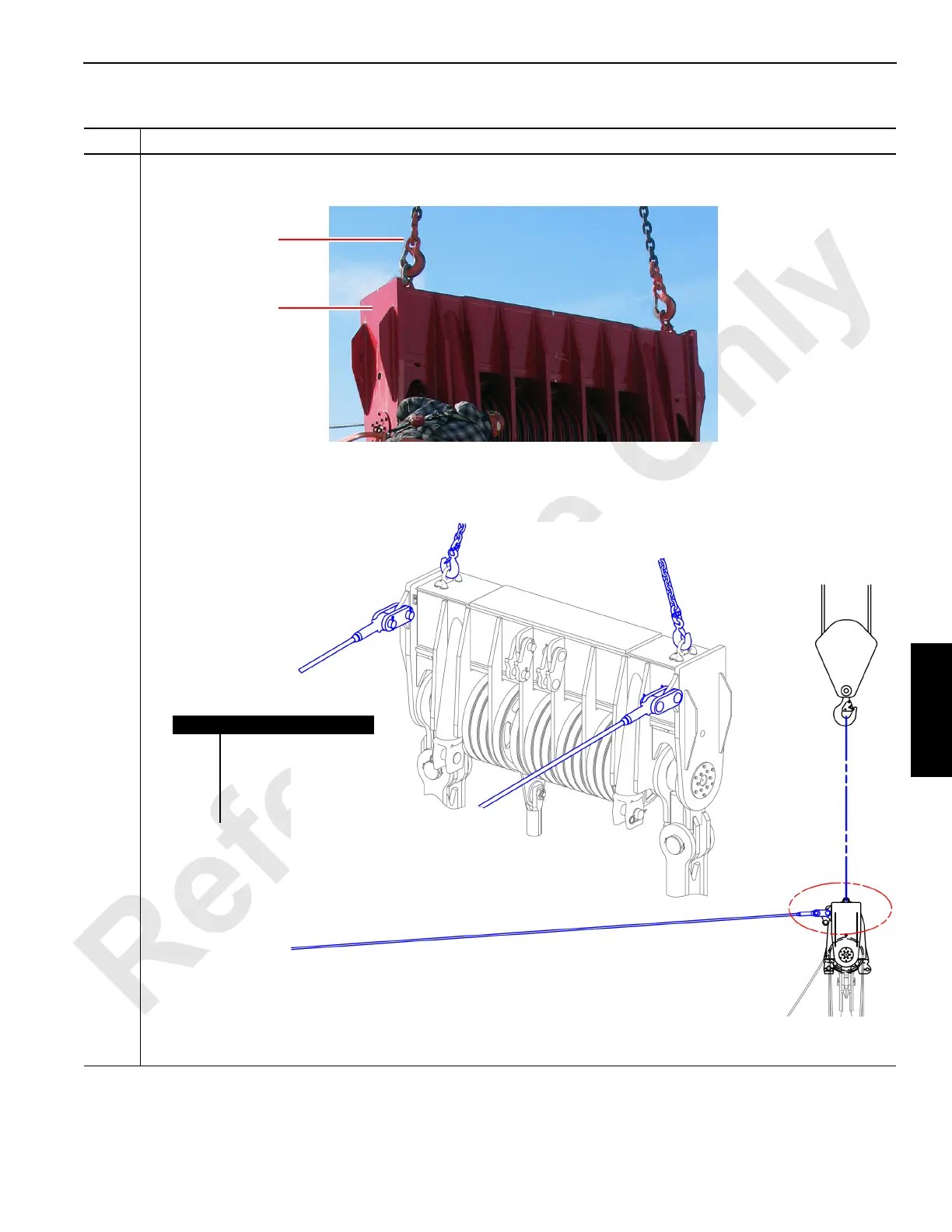

• Attach an assist crane to the top of the strut cap (A) using a 2-point chain sling (B):
• Connect the lifting links on the strut raising pendant (C) to the strut raising links (D) on the strut cap (A):
FIGURE 4-27
A
B
FIGURE 4-28
Item Description
A Strut cap.
B 2-point chain sling.
C Strut raising pendant.
D Strut raining link.
E Assist crane.
A
B
C
D
C
D
B
E
A
