Manitowoc Published 07-23-15, Control # 078-03 4-11
31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
Assemble and Attach the Jib Strut
Step Action
10
Information below from drawing A19443, Sheet 8:
Assemble the jib strut:
•Block (D) the jib strut butt (C) as shown below.
• Using an assist crane (A), attach the jib strut insert (E) to the jib strut butt (C) with connector and safety pins (I).
NOTE: If straps (H) are stored on the jib strut insert (E), then the jib strut butt (C) can be attached to the jib strut
insert (E) and no blocking (D) is necessary.
• Using an assist crane (A), attach the jib strut top (F) to the jib strut insert (E) with connector and safety pins (I).
A
D
F
G

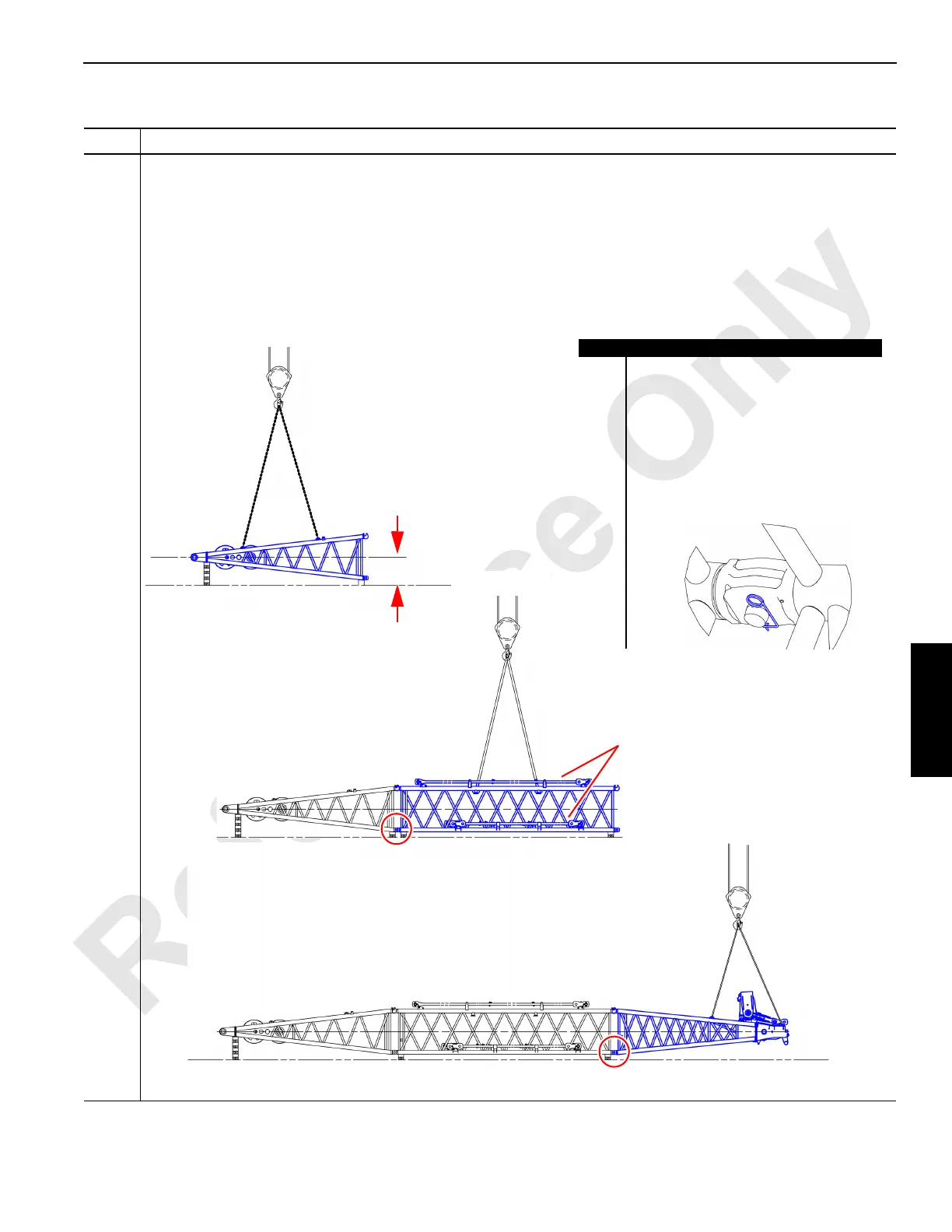

FIGURE 4-11
E
D
I
A
H
Item Description
A Assist crane.
B Approximately 157.5 cm (62.0 in).
C Jib strut butt.
D Blocking.
E Jib strut insert.
F Jib strut top.
G Strut cap.
H Strap.
I Insert joint with safety pin:
B
C
I
D
A
