Reference Only
Manitowoc Published 07-23-15, Control # 078-03 4-39
31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
4
40
Information below from drawing A19443, Sheet 20:
Connect the hydraulic lines (A) from the hose reel (B) to the jib backstay spreader (C):
Uncoil the hydraulic lines (A) from the hose reel (B).
Run the hydraulic lines (A) over the top of the sheave (E) on the main transition insert (D).
Continue running the hydraulic lines (A) to the jib backstay spreader (C) as shown in Figure 4-38
.
Support the hydraulic lines (A) with hangers (F).
Connect the hydraulic lines (A) to the hydraulic connection (G) on the jib backstay spreader (C).
Step Action

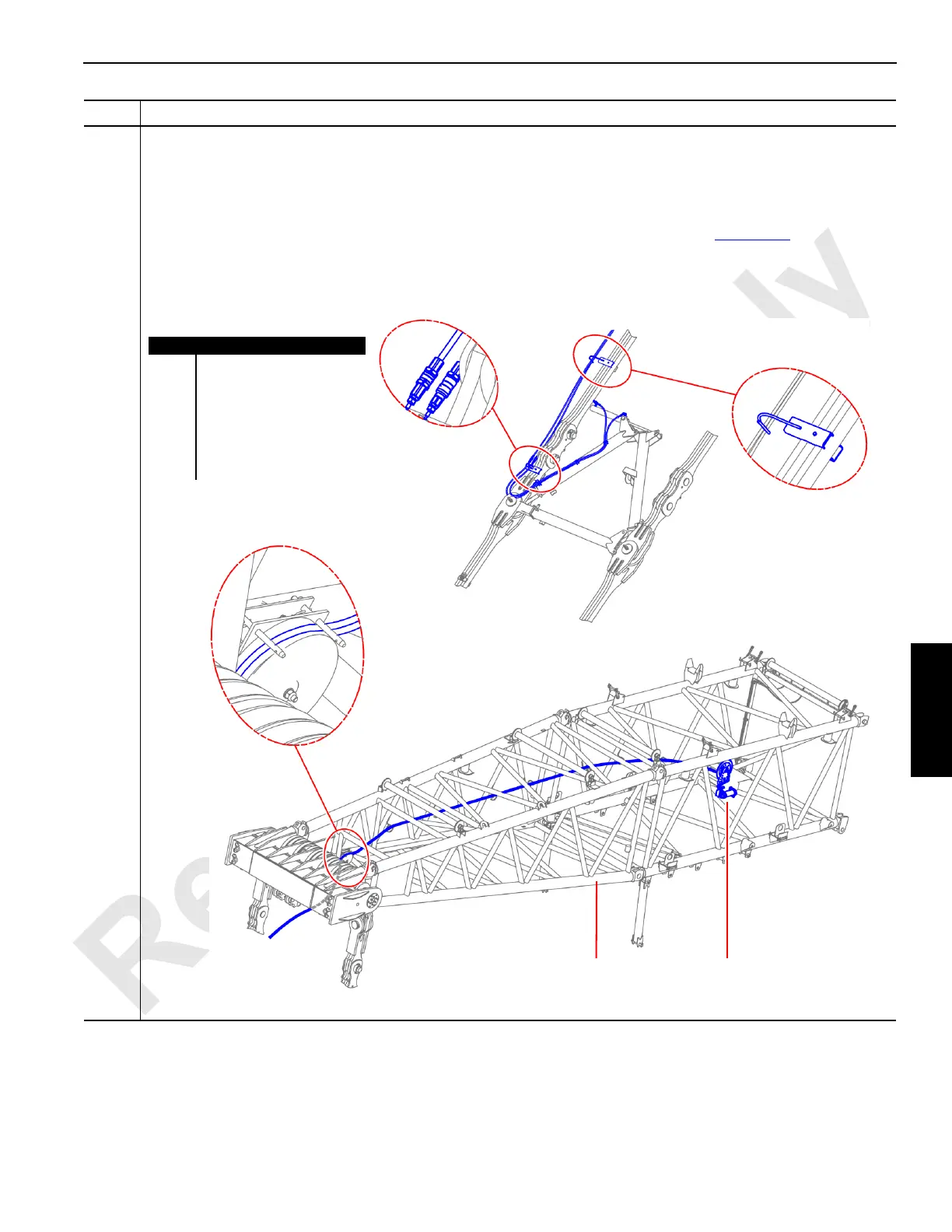

FIGURE 4-40
Item Description
A Hydraulic lines.
B Hose reel.
C Jib backstay spreader.
D Main strut transition insert.
E Sheave.
F Hanger.
G Hydraulic connection.
A
C
D
E
F
G
B
