HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL
4-42 Published 10-21-2010, Control# 198-04

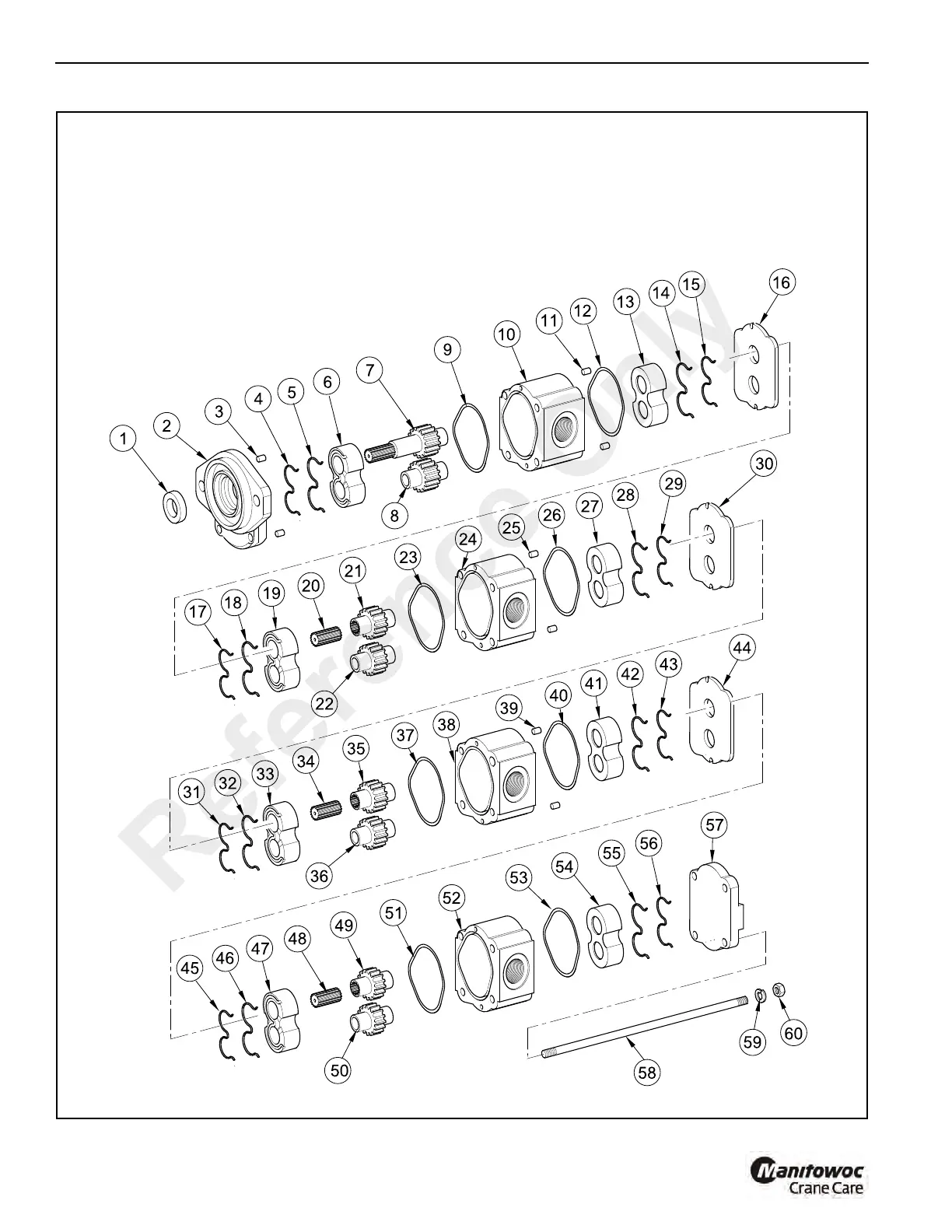

FIGURE 4-41
a1591
Hydraulic Pump
1. Lip Seal
2. End Cover
3. Dowel (2)
4. Plastic Seal
5. Rubber Seal
6. Thrust Block
7. Drive Gear
8. Driven Gear
9. O-Ring
10. Gear Housing
11. Dowel (2)
12. O-Ring
13. Thrust Block
14. Rubber Seal
15. Plastic Seal
16. Spacer Plate
17. Plastic Seal
18. Rubber Seal
19. Thrust Block
20. Connecting Shaft
21. Gear
22. Gear
23. O-Ring
24. Gear Housing
25. Dowel (2)
26. O-Ring
27. Thrust Block
28. Rubber Seal
29. Plastic Seal
30. Spacer Plate
31. Plastic Seal
32. Rubber Sea
33. Thrust Block
34. Connecting Shaft
35. Gear
36. Gear
37. O-Ring
38. Gear Housing
39. Dowel (2)
40. O-Ring
41. Thrust Block
42. Rubber Seal
43. Plastic Seal
44. Spacer Plate
45. Plastic Seal
46. Rubber Seal
47. Thrust Block
48. Connecting Shaft
49. Gear
50. Gear
51. O-Ring
52. Gear Housing
53. O-Ring
54. Thrust Block
55. Rubber Seal
56. Plastic Seal
57. End Cover
58. Stud (4)
59. Lockwasher (4)
60. Nut (4)
Reference Only
