HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL

4-60 Published 10-21-2010, Control# 198-04

a0432

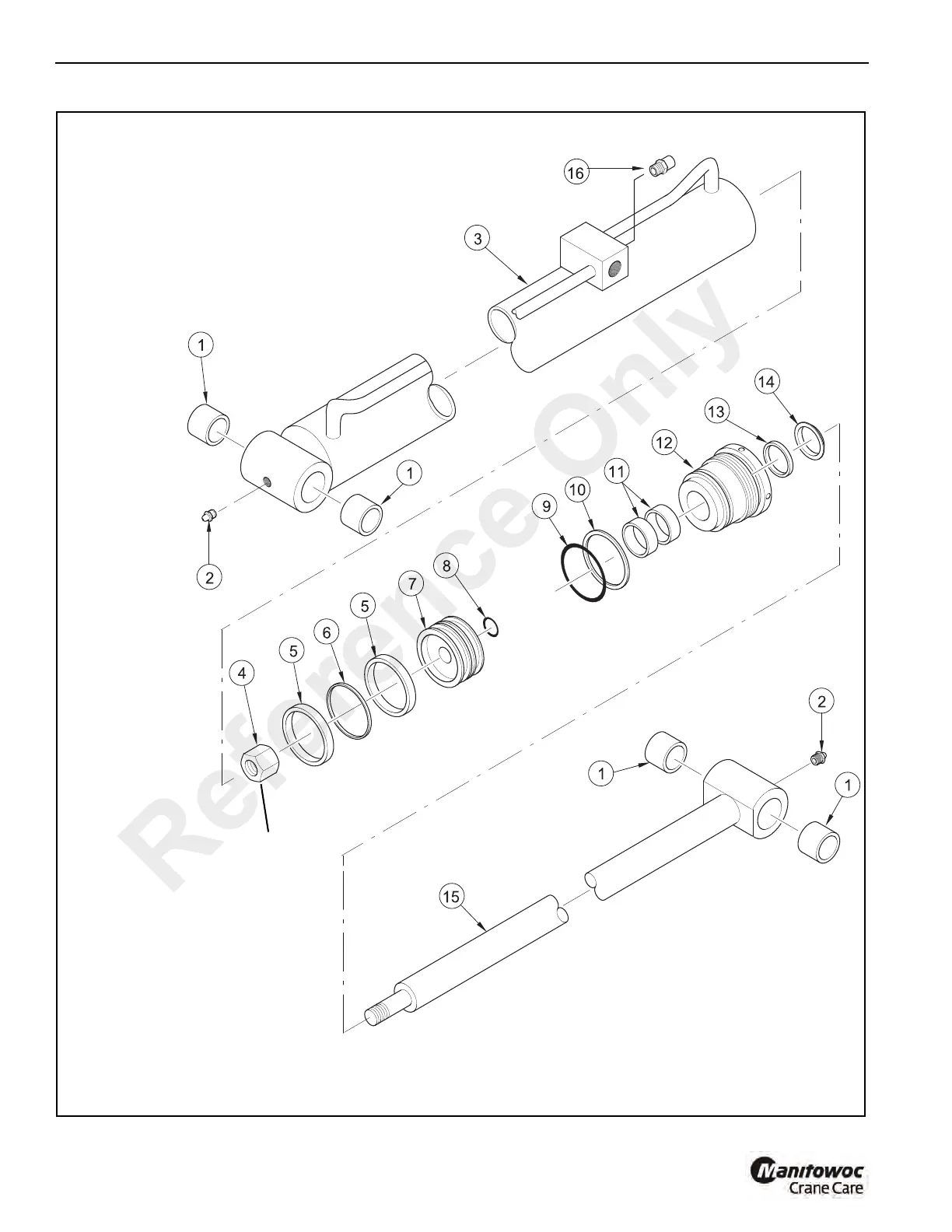

FIGURE 4-62

1. Bushing (4)

2. Grease Fitting

3. Cylinder Tube

4. Piston Nut

5. Wear Ring (2) *

6. Piston Seal *

7. Piston

8. O-Ring *

9. O-Ring *

10. Back Up Ring *

11. Wear Ring *

12. Gland Head

13. Rod Seal *

14. Rod Wiper *

15. Cylinder Rod

16. Counterbalance

Valve Cartridge

17. Rod Wiper*

18. Cylinder Rod

19. Plug

20. Fitting

* = Seal Kit Parts

Tighten nut to a

torque of 1200 lb-ft

(1632 Nm)

Lift Cylinder



Reference Only
