HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL

4-62 Published 10-21-2010, Control# 198-04

Tighten nut to a

torque of 3900 lb. ft

(5304 Nm)

a0440

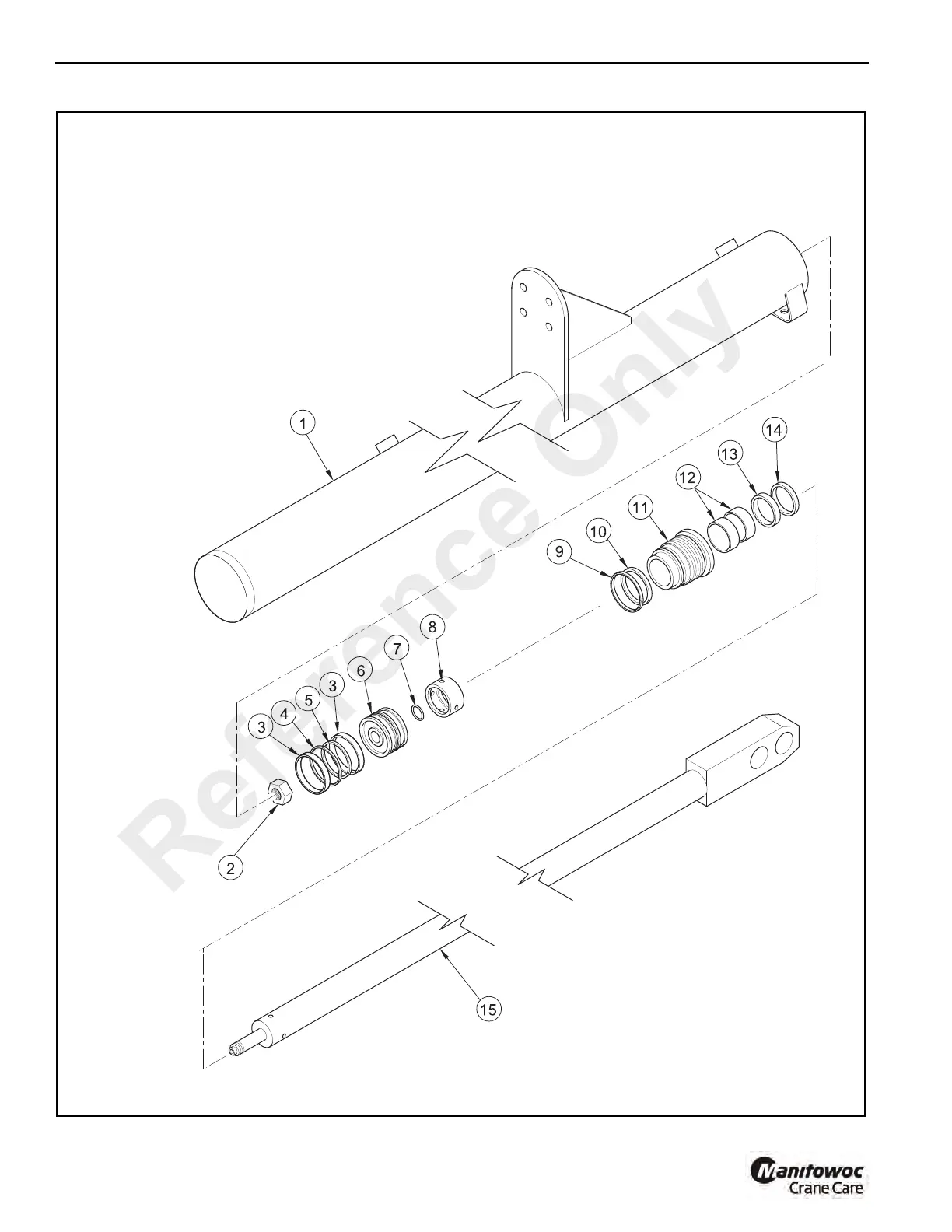

FIGURE 4-64

Lower Crowd Cylinder

1. Cylinder Tube

2. Piston Nut

3. Piston Wear Ring (2) *

4. Piston Seal *

5. O-Ring *

6. Piston

7. O-Ring *

8. Tube Stop

9. O-Ring *

10. Ring *

11. Gland

12. Gland Wear Ring (2) *

13. Rod Seal

14. Wiper *

15. Rod

* = Seal Kit Parts


