HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL

4-64 Published 10-21-2010, Control# 198-04

a0439

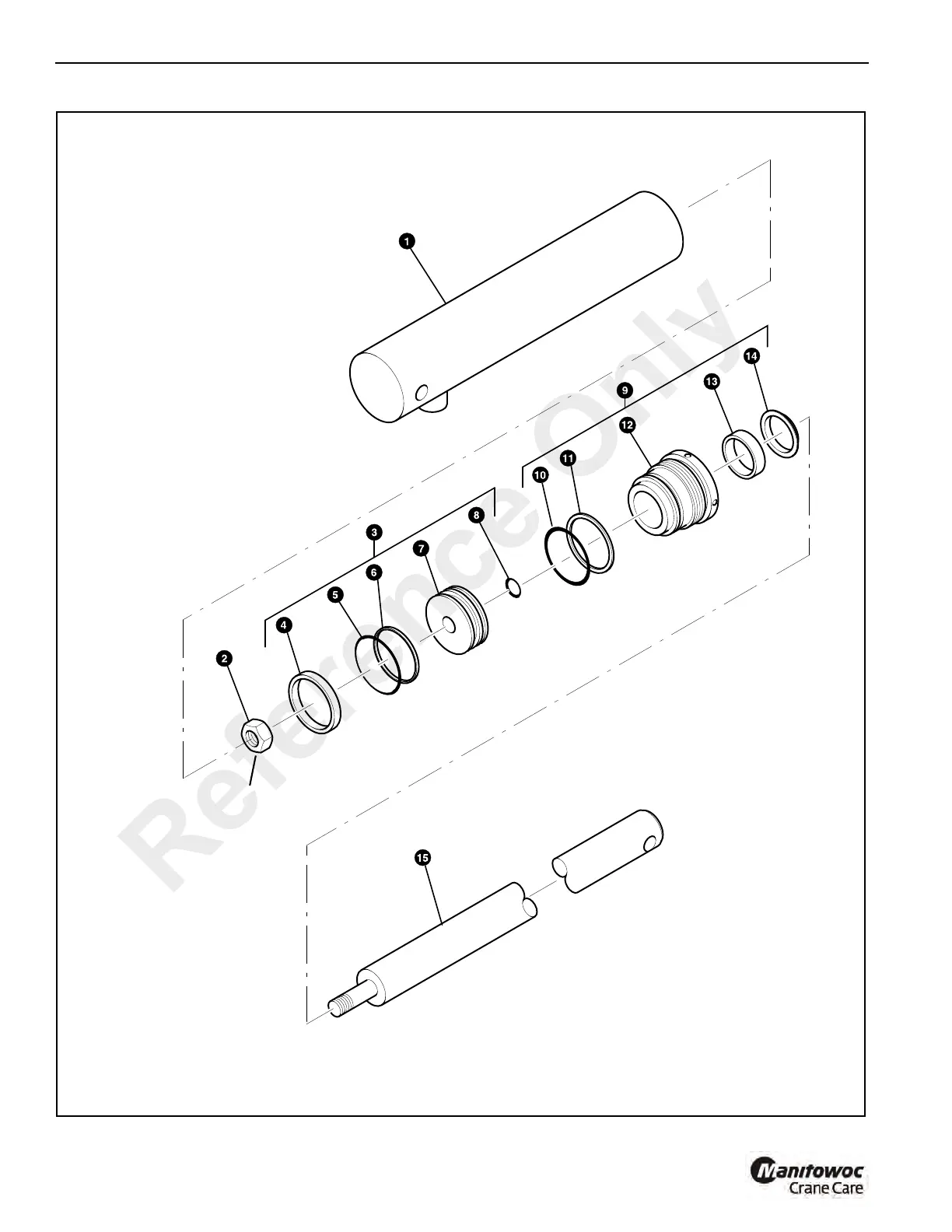

FIGURE 4-66

1. Cylinder Tube

2. Piston Nut

3. Piston Assembly

4. Wear Ring*

5. O-Ring*

6. Piston Seal*

7. Piston

8. O-Ring*

9. Gland Head Assembly

10. O-Ring*

11. Back-Up Ring*

12. Gland Head

13. Rod Seal*

14. Rod Wiper*

15. Cylinder Rod

*= Seal Kit

Tighten nut to a torque

of 25 lb-ft (34 Nm)

Axle Oscillation Lockout Cylinder



Reference Only
