PREVENTATIVE MAINTENANCE 5540F/YB5515 SERVICE MANUAL
5-6 Published 10-21-2010, Control# 198-04
p1638

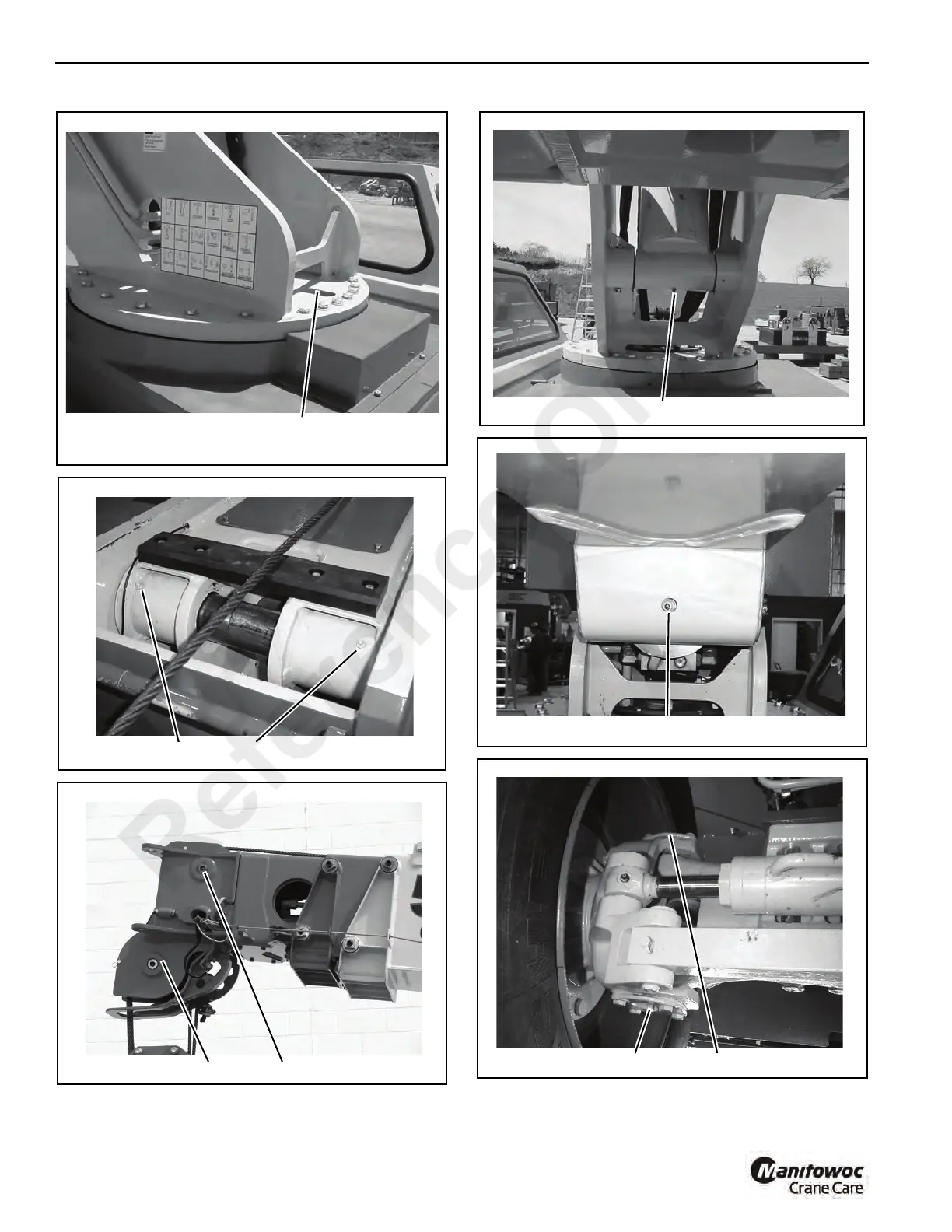

Mast Bearing Lubrication Point
Two Fittings Located On Inside Surface or Bearing Ring
FIGURE 5-1
p1663
Boom Pivot Lubrication Points
FIGURE 5-2
p1622
Boom Head Sheaves and Pivot Lube Points
FIGURE 5-3
p1639
Lift Cylinder Pivots Lube Points (Base End)
FIGURE 5-4
p1664
Lift Cylinder Pivots Lube Point (Rod End)
FIGURE 5-5
p0417
Steering Knuckle Lube Points (Front Axle)
FIGURE 5-6
