Manitowoc Grove 5540F

AXLES/DRIVE SHAFTS/WHEELS AND TIRES 5540F/YB5515 SERVICE MANUAL
8-8 Published 10-21-2010, Control# 198-04

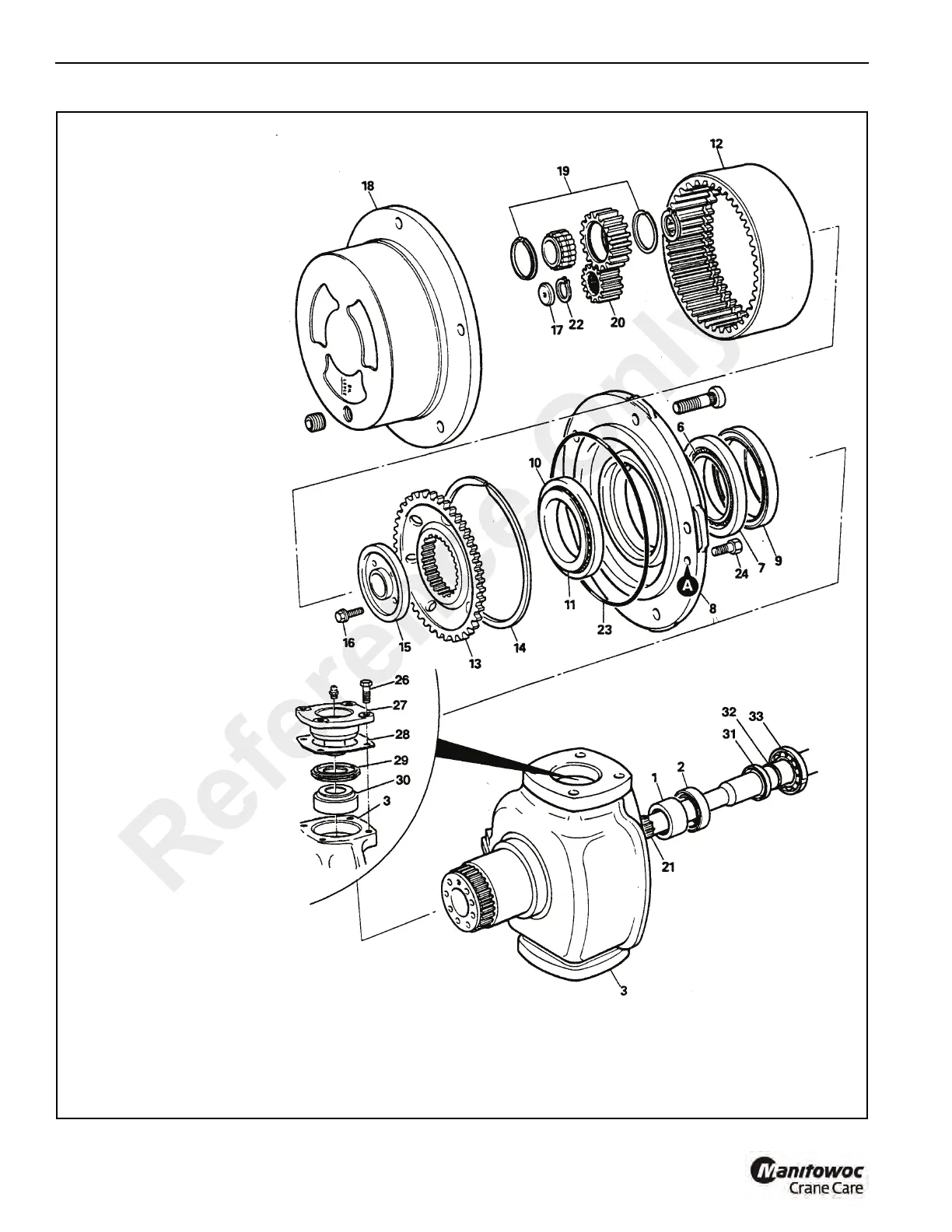

FIGURE 8-8
a0181
1. Bearing
2. Oil Seal
3. Hub Swivel
4. Snap Ring
6. Wheel Bearing Cone
7. Wheel Bearing Cup
8. Bearing Carrier
9. Combination Seal
10. Wheel Bearing Cone
11. Wheel Bearing Cup
12. Annulus Ring
13. Brake Carrier
14. Retaining Ring
15. Retainer Plate
16. Verbus Ripp Bolts (4)
17. Thrust Pad
18. Planetary Gear Carrier
19. Planet Gear Assembly (3)
20. Sun Gear
21. Drive Shaft
22. Snap Ring (3)
23. O-Ring
24. Capscrew (2)
26. Trunnion Bolts (8)
27. Trunnion (2)
28. Shim
29. Seal (2)
30. Bearing (2)
31. Oil Seal
32. Retaining Ring
33. Bearing



























Reference Only
