ELECTRIC SYSTEM 5540F/YB5515 SERVICE MANUAL
3-10 Published 10-21-2010, Control# 198-04
To LMI
System
Duel Fuel
Enging
Malfunction
Indicator
Relay Box
Return to
Center Steering
Fuse Block
Fuse
Relays
Turn Signal
Flashers
Turn Signal
Switch
To Main Frame
Harness
a1636

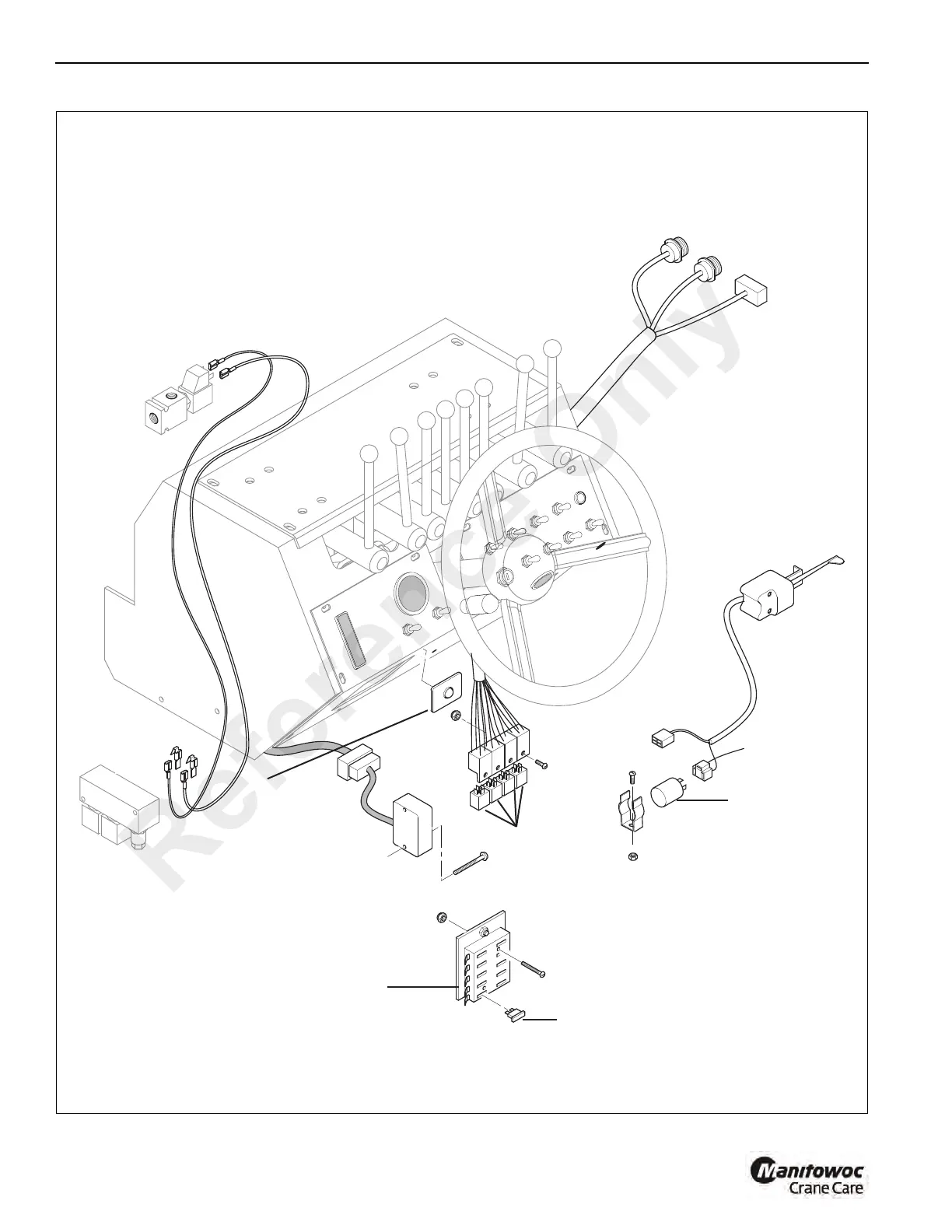

FIGURE 3-5
Instrument Panel Wire Harnesses



























Reference Only
