ELECTRIC SYSTEM 5540F/YB5515 SERVICE MANUAL
3-12 Published 10-21-2010, Control# 198-04
Trip Arm
Limit
Switch
Swivel
Cable Reel
Relay
Anti-Double
Blocking Solenoid
Valves
a1630

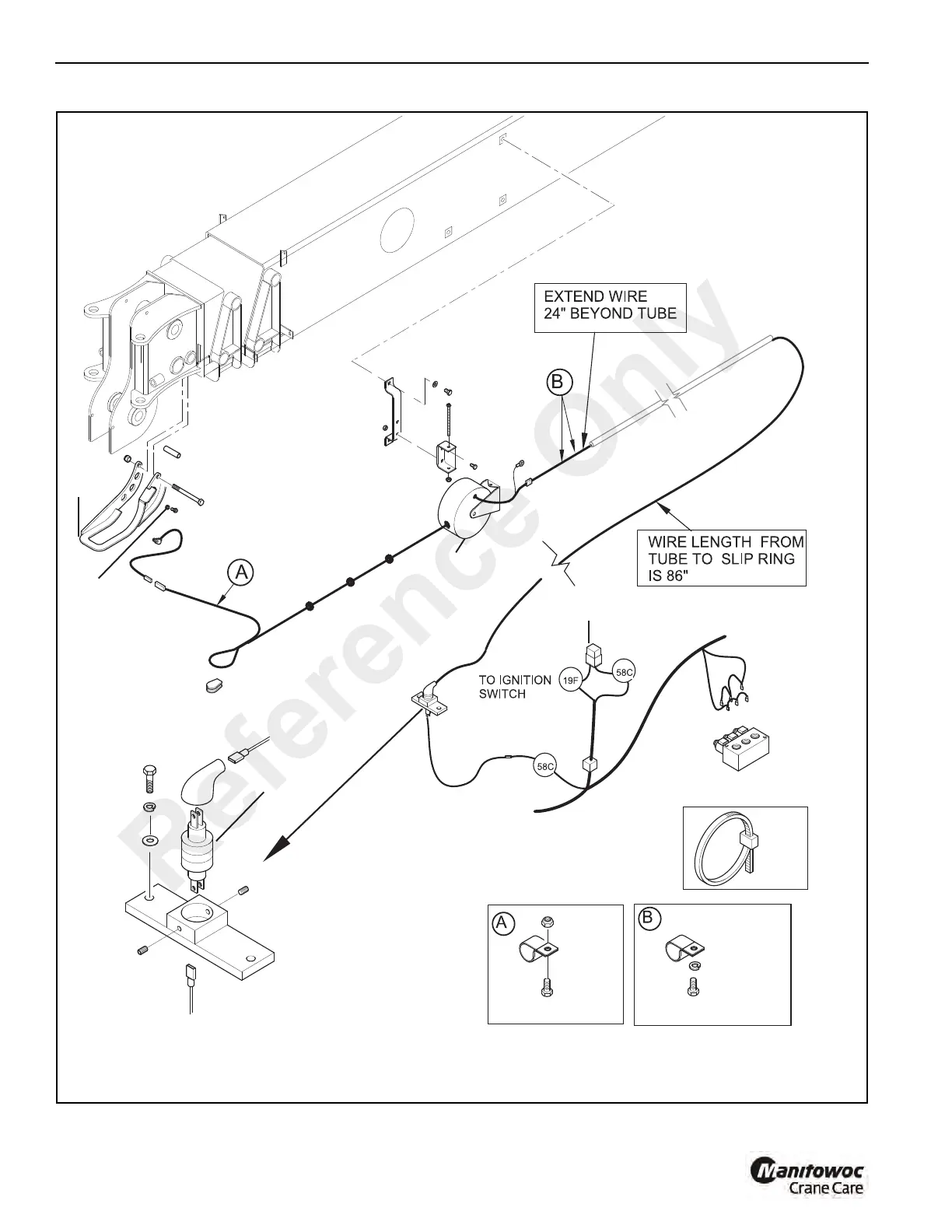

FIGURE 3-6
Typical Anti-Double Blocking Arrangement
Reference Only
