GRT880 SERVICE MANUAL ELECTRICAL SYSTEM
3
GROVE

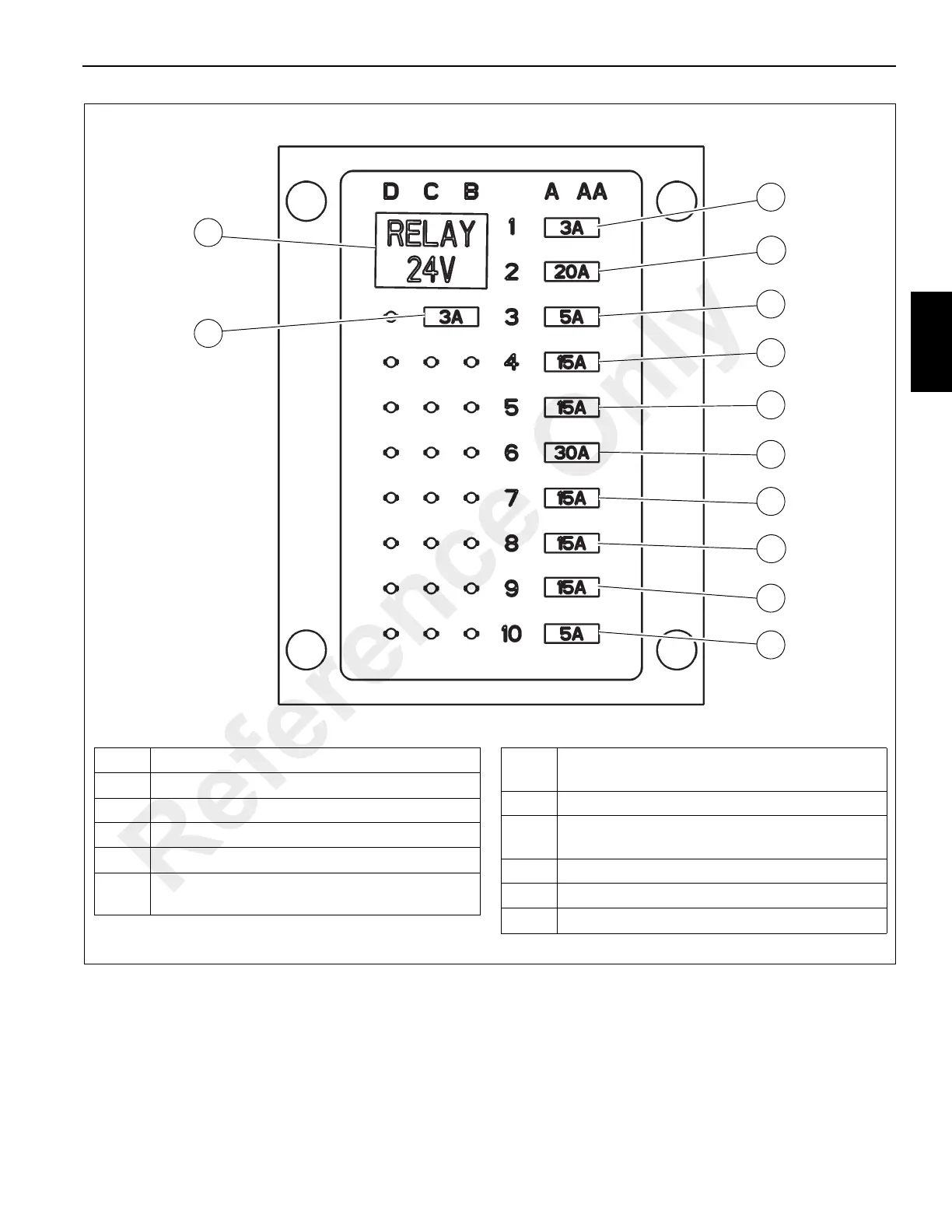

FIGURE 3-8
Carrier Fuse and Relay Box 1
2
1
3
4
9
10
7
5
8
6
11
12
1 K108 - 24V Starter Lockout Relay
2 F11 - Retarder Option Power
3 F1 - Refinery Option Power
4 F2 - Fused Battery Power
5 F3 - Diagnostic Tool Power
6
F4 - UB + Carrier CCM11/IOL31 Module Battery
Power
7
F5 - UB + Carrier CCM11/IOL31 Module Battery
Power
8 F6 - Engine ECM Power
9
F7 - UE +Carrier CCM11/IOL31 Module Battery
Power
10 F8 - Cold Weather Power
11 F9 - Cold Weather Power
12 F10 - Starter Lockout Fused Relay Power
Reference Only
