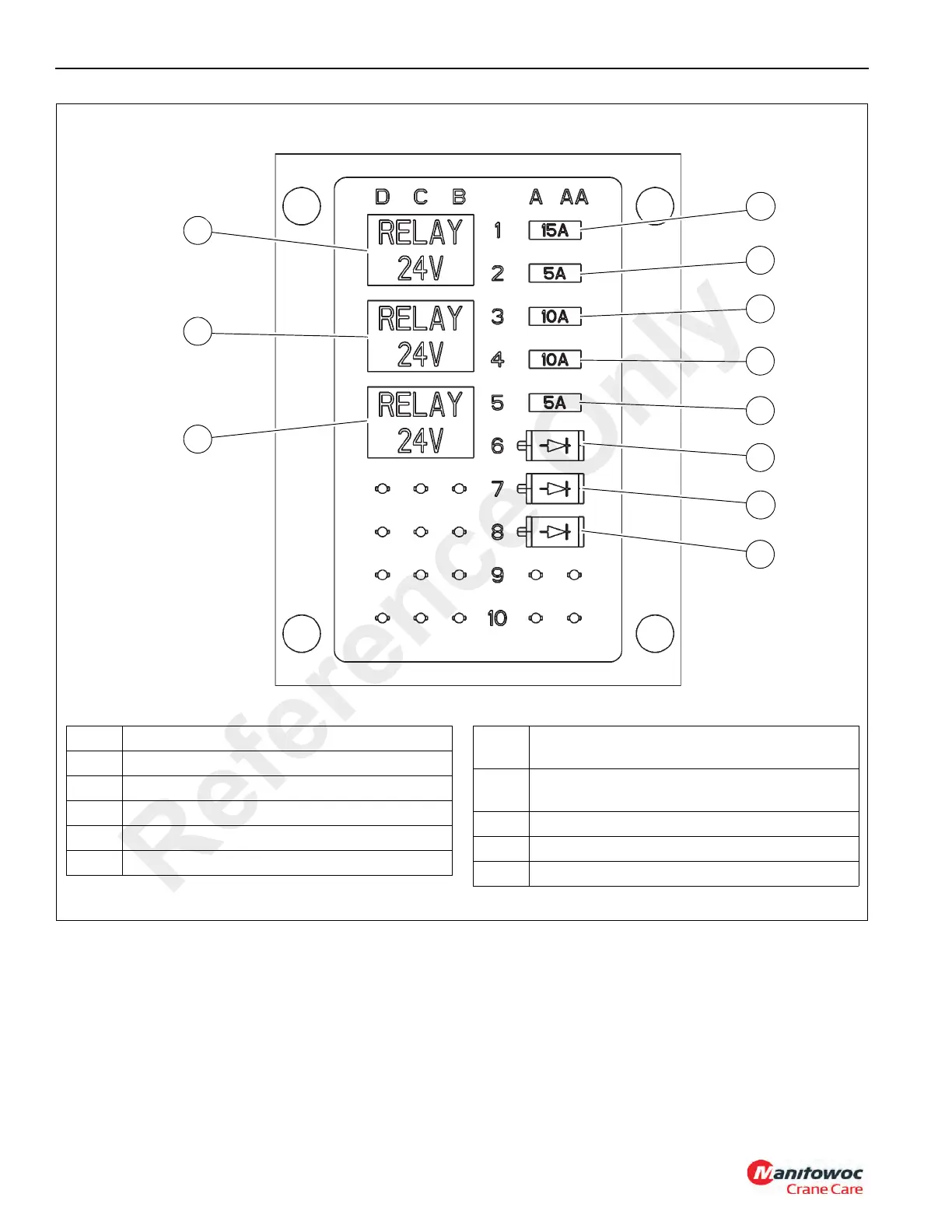

FIGURE 3-9
2
1
3
4
9
10
7
5
8
6
11
1 K109 - DEF Lines Heater Relay
2 K110 - DEF Supply Module
3 K111 - After-treatment Sensors Power Relay
4 F1 - DEF Lines Heater Fused Relay Power
5 F2 - DEF Lines Heater Fused Relay Coil Power
6 F3 - DEF Supply Module Fused Relay Power
7
F4 - After-treatment Sensors Fused Relay
Power
8
F5 - After-treatment Sensors Fused Relay Coil
Power
9 D1 - Pressure Line Heater
10 D2 - Return Line Heater
11 D3 - Suction Line Heater
Carrier Fuse and Relay Box 2
