Manitowoc Grove GRT880 Service Manual

BOOM GRT880 SERVICE MANUAL
4-16
Published 10/19/2017, Control # 618-00
5. Remove six bolts (134) and washers (119) from left and
right sides of base (101) (see Figure 4-129).
6. Pull tele 1 (201) out of base (101) several feet.
7. Remove bolts, washers, lock washers, and nuts (130,
124, 125, 136) securing bottom left and right (as
oriented) side stop plates (113) to front of base (101)
(see Figure 4-4).
8. Remove bolts (141) securing top left and right (as
oriented) side shims (128) and stop blocks (124) to front
of base (101) (see Figure 4-4).
9. Remove left and right side bottom and middle wear pad
adjusting bolts (132) and twelve set screws (128) from
front of base (101).
10. Remove shims (110), flexible wear pads (105, 106, 109),
and bars (111, 112) from between base (101) and tele 1
(201) (see Figure 4-5).
11. Slightly raise tele 1 (201), then remove left and right side
wear pads (103, 104) from between base (101) and tele
1 (201) (see Figure 4-5).
12. Pull tele 1 (201) out of base (101) until wear pads at rear
of tele 1 (201) are exposed. Wrap ratchet strap (S)
around wear pads to prevent them from falling upon the
removal of tele 1 (201) from base (101) (see Figure 4-6).
Remove tele 1 (201) from base (101).

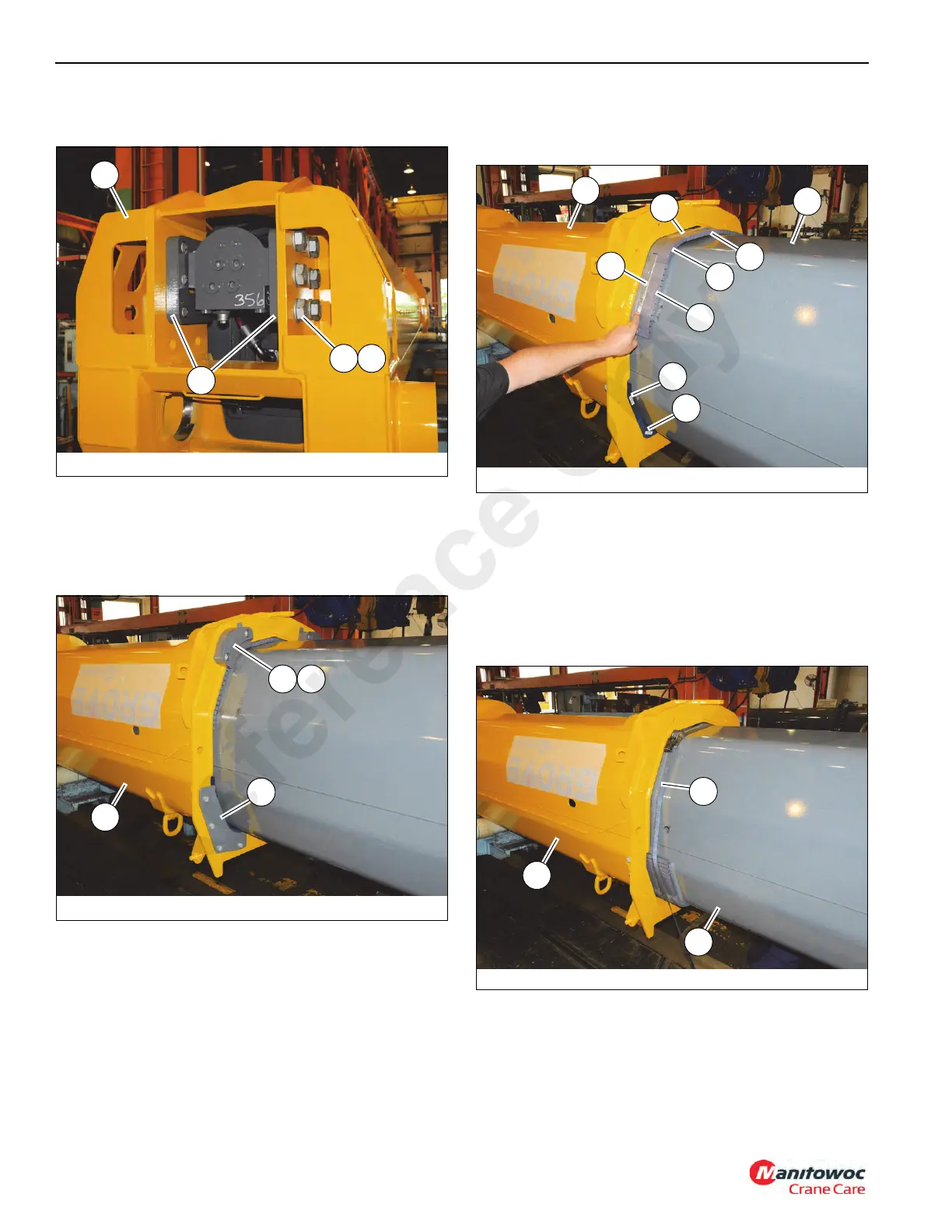

FIGURE 4-3
9044-73
134119
101
513
FIGURE 4-4
9044-71
128
113
124
101
FIGURE 4-5
9044-70
109
101
105
201
106
111
112
104
103
FIGURE 4-6
9044-68
201
101
S
Reference Only
