Manitowoc Grove GRT880 Service Manual

4-23
Published 10/19/2017, Control # 618-00
GRT880 SERVICE MANUAL BOOM
4
GROVE
43. Remove bolts (349) securing top left and right side
shims (320) and stop blocks (316) to front of tele 2 (301)
(see Figure 4-31).
44. Remove left and right side bottom and middle wear pad
adjusting bolts (348) and twelve set screw (341) from
front of tele 2 (301).
45. Remove shims (318), flexible wear pads (308, 309,
310), and bars (311, 312) from between tele 2 (301) and
tele 3 (401) (see Figure 4-32 and Figure 4-33).
46. Slightly raise tele 3 (401), then remove left and right side
wear pads (306, 307) from between tele 2 (301) and tele
3 (401) (see Figure 4-34).
47. Pull tele 3 (401) out of tele 2 (301) until wear pads at rear
of tele 3 (401) are exposed. Wrap ratchet strap (G)
around wear pads to prevent them from falling upon the

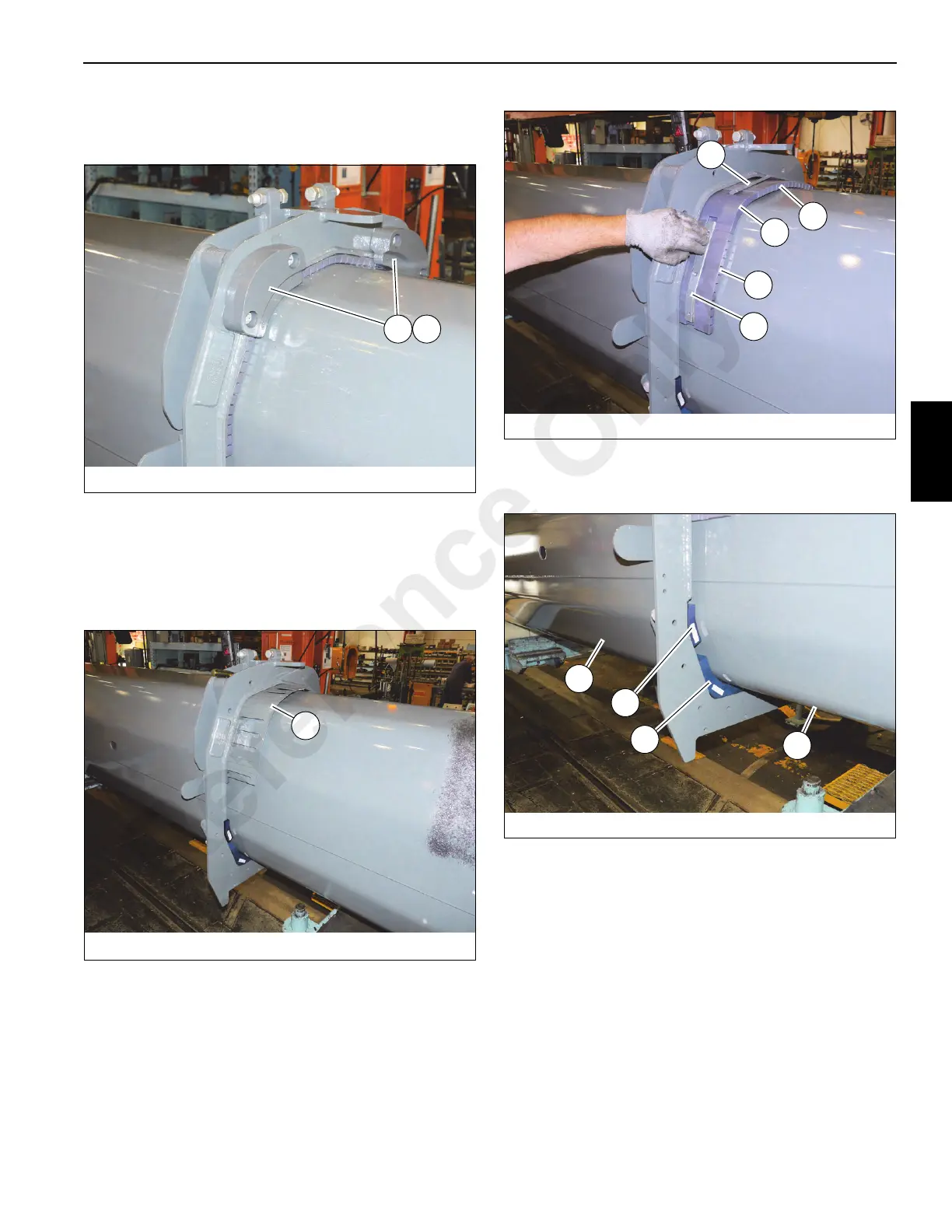

FIGURE 4-31
9044-43
320316
FIGURE 4-32
9044-42
318
FIGURE 4-33
9044-39
312
310
308
309
311
FIGURE 4-34
9044-38
401
301
306
307
Reference Only
