Manitowoc Grove GRT880 Service Manual

4-27
Published 10/19/2017, Control # 618-00
GRT880 SERVICE MANUAL BOOM
4
GROVE

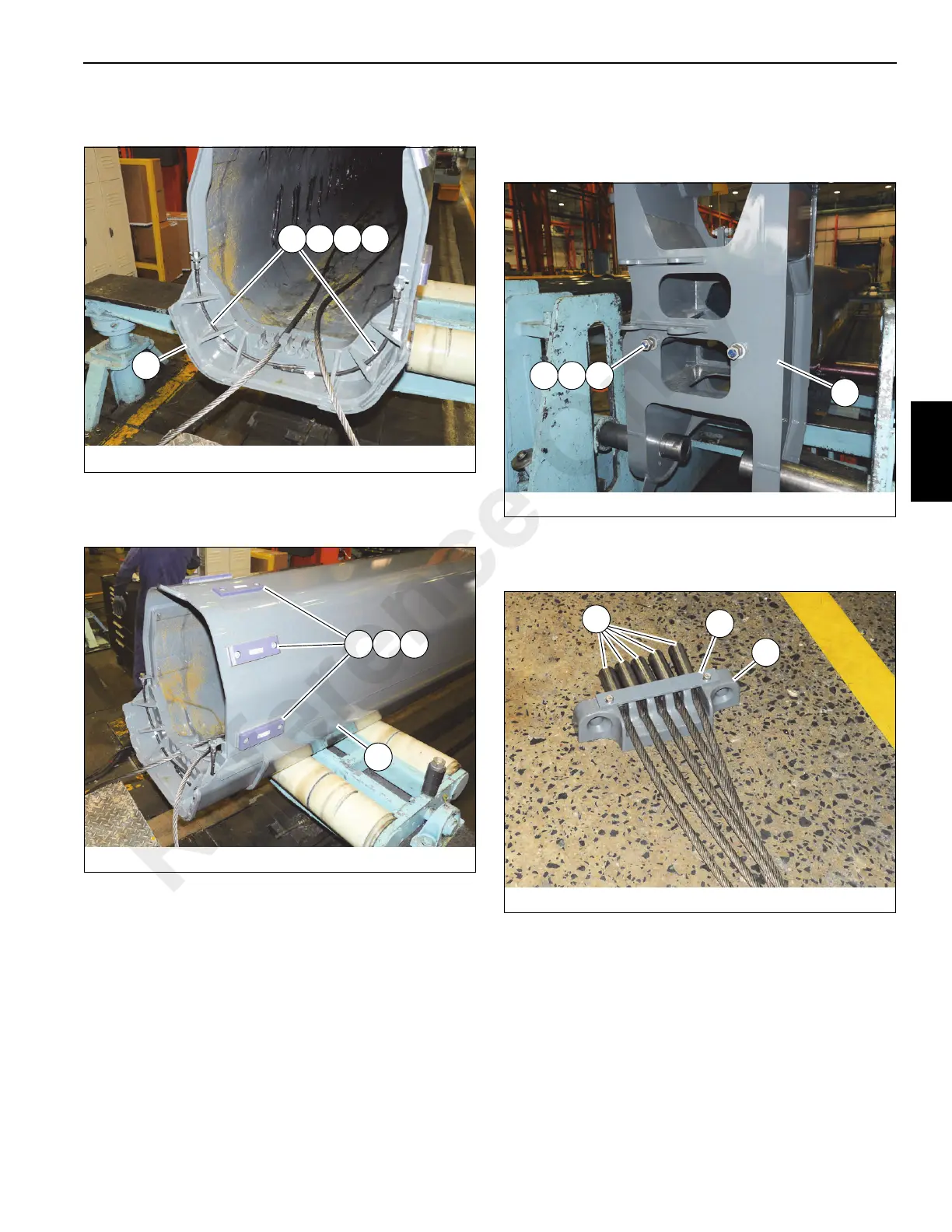

64. Remove grease hose (402) and fittings (410, 411, 412)
from rear of tele 3 (401) (see Figure 4-47).
65. Remove two bolts (414) from each of the six wear pads
(407) and shims (408, 409) at rear of tele 3 (401) (see
Figure 4-48).
66. Remove two nuts (8) and washer (9) from each of the
two retract cables (7) at front of tele 3 (401) (see
Figure 4-49). Remove two retract cables (7) from inside
of tele 3 (401).
67. Remove two bolts, washers, lock washers (537, 531,
530), and plate (519) securing ends of the five extend
cables (6) in cable keeper (518) (see Figure 4-50).
FIGURE 4-47
9044-10
412410 411
401
402
FIGURE 4-48
9044-9
408 409407
401
FIGURE 4-49
9044-1
7 8
401
9
FIGURE 4-50
9044-8
6
518
519
