22. Insert telescope cylinder #1 (502) into rear of tele 3 (401)
such that the cylinder head sheave (509) is inside tele 3
(401) (see Figure 4-71).
23. Seat the ends of the five extend cables (6) into the
pockets at rear of tele 3 (401). Secure cable ends in
place using plate (404) and two bolts, washers, and lock
washers (417, 416, 415) (see Figure 4-72).
24. Insert telescope cylinder #1 (502) further into tele 3
(401). Install one wear pad (523) onto the two brackets
(507) using bolts and washers (537, 531), then install
brackets (507) onto the left and right sides of sheave
head weldment (506) (see Figure 4-73).
25. Insert telescope cylinder #1 (502) further into tele 3
(401) until the keeper (518) with the five extend cables
(6) attached is near the rear of tele 3 (401) (see
Figure 4-74).

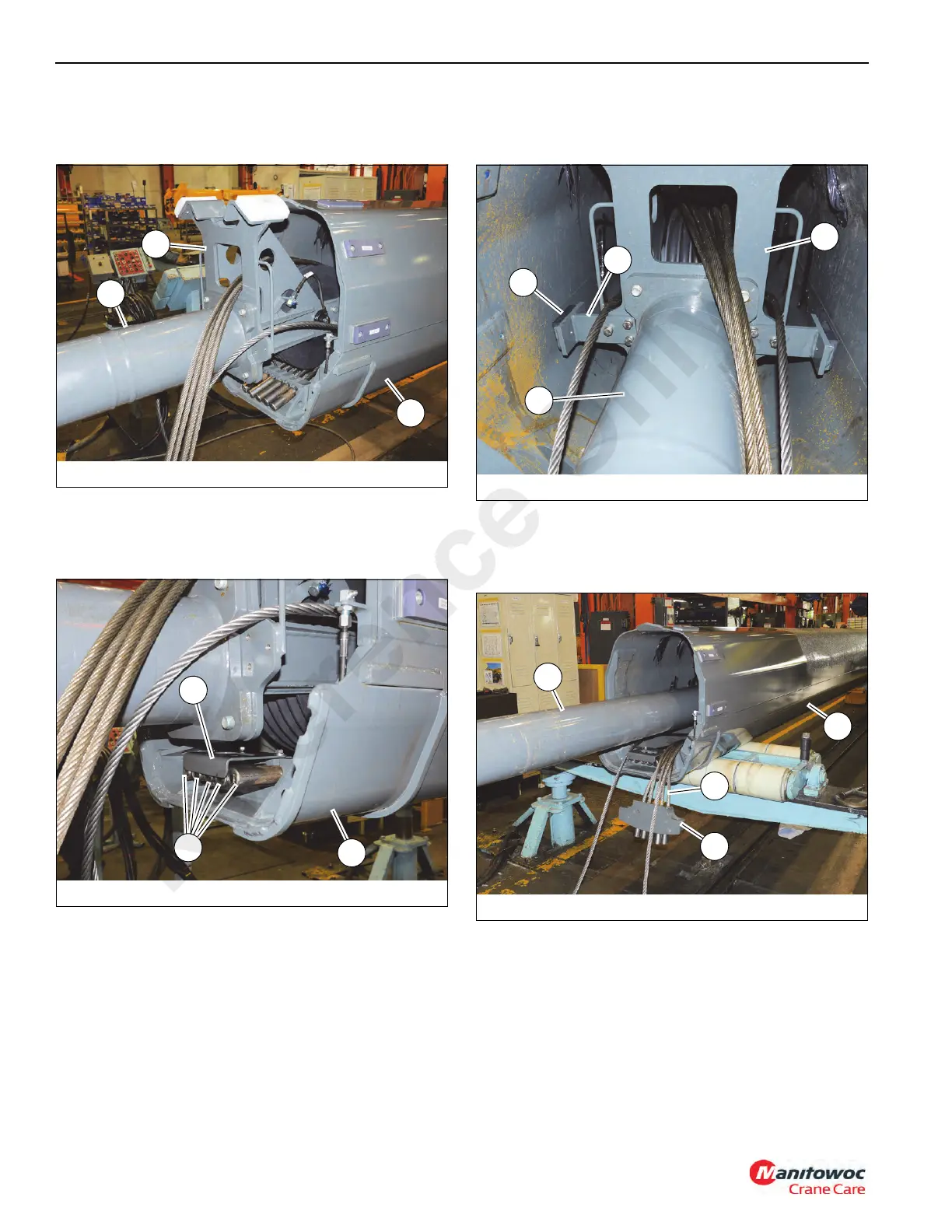

FIGURE 4-71
9044-16
502
509
401
FIGURE 4-72
9044-17
6
404
401
FIGURE 4-73
9044-18
523
502
507
506
FIGURE 4-74
9044-19
6
502
518
401
