Manitowoc Grove GRT880 Service Manual

4-39
Published 10/19/2017, Control # 618-00
GRT880 SERVICE MANUAL BOOM
4
GROVE
bolts and nuts (348, 353) on each side of tele 2 (301),
but do not tighten.

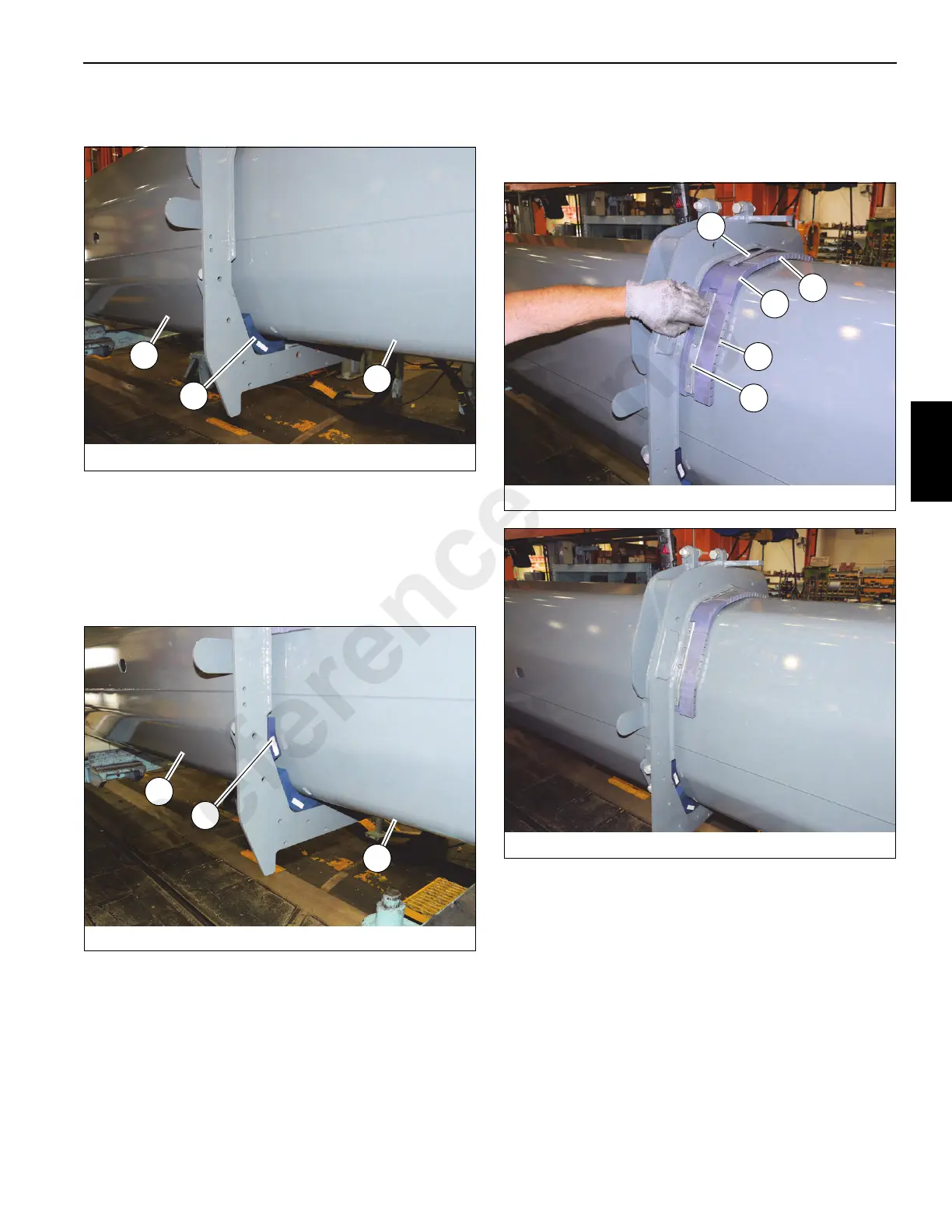

40. Continue to insert tele 3 (401) into tele 2 (301) until front
tip of tele 2 is at the area of tele 3 which is free of grease.
41. Install a wear pad (306) in the left and rights sides,
between tele 2 (301) and tele 3 (401) (see Figure 4-92).
Install wear pad adjusting bolts and nuts (348, 353) on
each side of tele 2 (301), but do not tighten (see
Figure 4-92).
42. Set flexible wear pads (308, 309, 310) with bars (311,
312) on top of tele 3 (401) and tap into place between
tele 2 (301) and tele 3 (401) (see Figure 4-93,
Figure 4-94, and Figure 4-95).
FIGURE 4-91
9044-37
301
401
307
FIGURE 4-92
9044-38
401
301
306
FIGURE 4-93
9044-39
312
310
308
309
311
FIGURE 4-94
9044-40
Reference Only
