Manitowoc Grove RT530E-2 Service And Maintenance Manual

Published 4-22-15, Control # 556-00 6-15
RT530E-2 SERVICE MANUAL SWING SYSTEM
GROVE
6

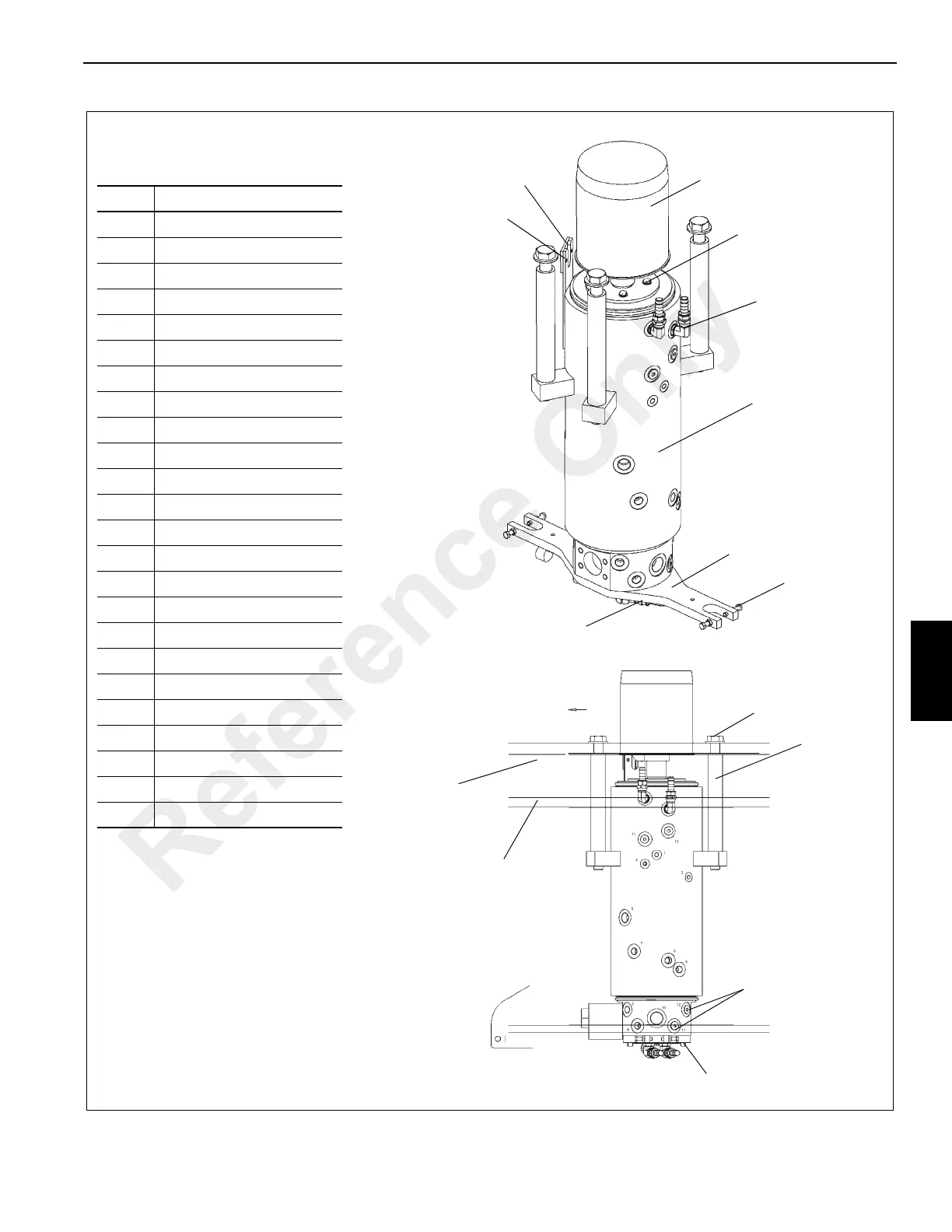

FIGURE 6-5
1
2, 3
4
5
6, 7
11
6733-1
Item Description
1 Slip Ring Assembly
2 Capscrew
3 Washer
4 Hydraulic Swivel
5 Retaining Plate
6 Capscrew
7Hex Nut
8 Adapter
9 Hose Nipple
10 Adapter
11 Plate
12 Capscrew
13 Jam Nut
14 Flatwasher
15 Capscrew
16 Hose Nipple
17 Adapter
18 Turntable Base Plate
19 Carrier Top Plate
20 Capscrew
21 Washer
22 Bushing
23 Plug
24 Retaining Plate
6752-2
16, 17
12, 13, 14, 15
8, 9, 10
20, 21
22
18
19
23
24
Forward
Reference Only
