Published 4-22-15, Control # 556-00 8-29
RT530E-2 SERVICE MANUAL UNDERCARRIAGE
GROVE
8
2, 3
2, 3
7
1
4, 5, 6

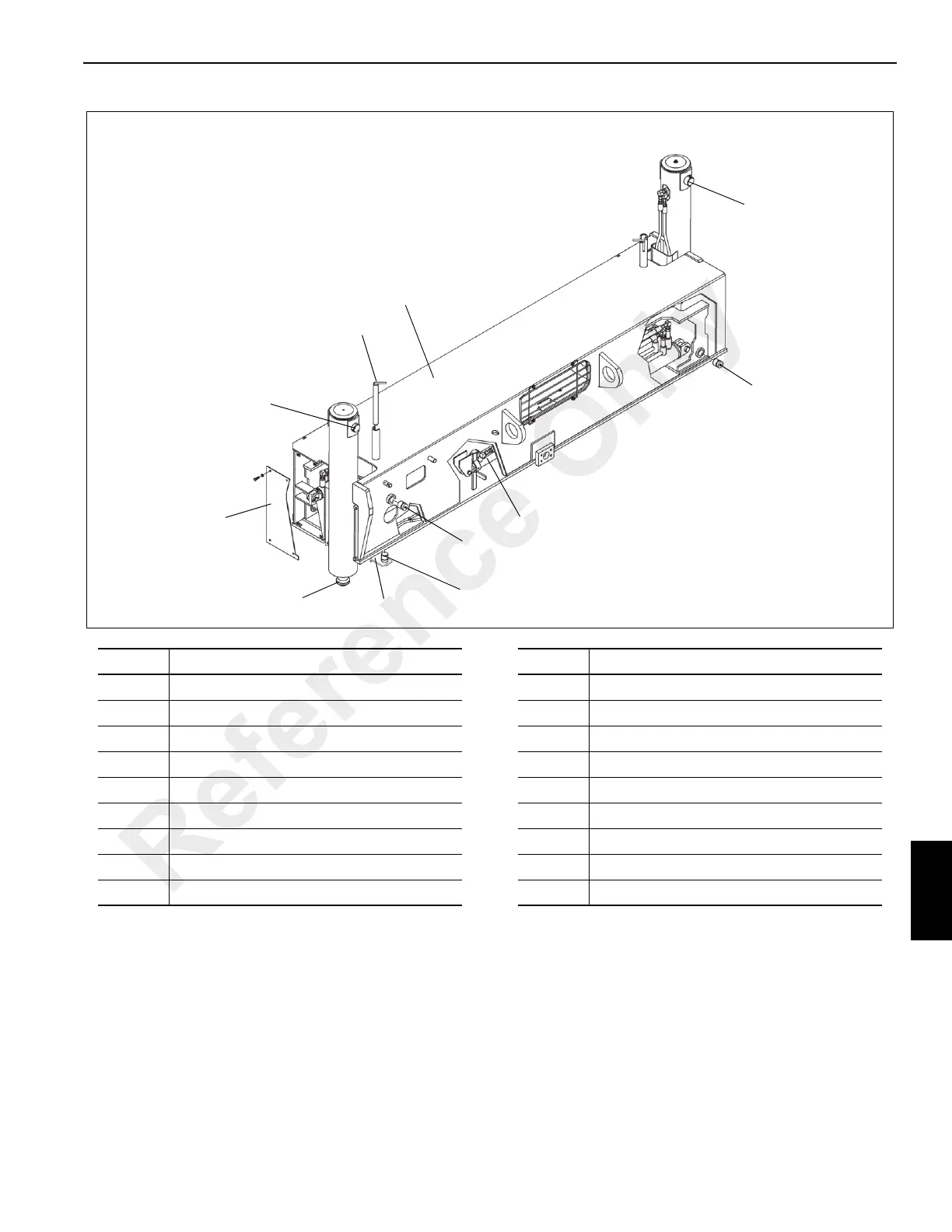

FIGURE 8-20
8, 9, 10, 11, 12, 13
14, 15
14, 15
18
17
16
6759-3
Item Description
1 Outrigger Box Assembly
2Hex Nut
3 Capscrew
4Pin
5Hex Nut
6 Capscrew
7 Adjusting Plate
8Hex Nut
9 Setscrew
Item Description
10 Capscrew
11 Plate
12 Wear Pad
13 Flatwasher
14 Cotter Pin
15 Clevis Pin
16 Extension Cylinder
17 Cover
18 Jack Cylinder
Reference Only
