UNDERCARRIAGE RT530E-2 SERVICE MANUAL
8-30 Published 4-22-15, Control # 556-00
6
2
4
5
7
3
1

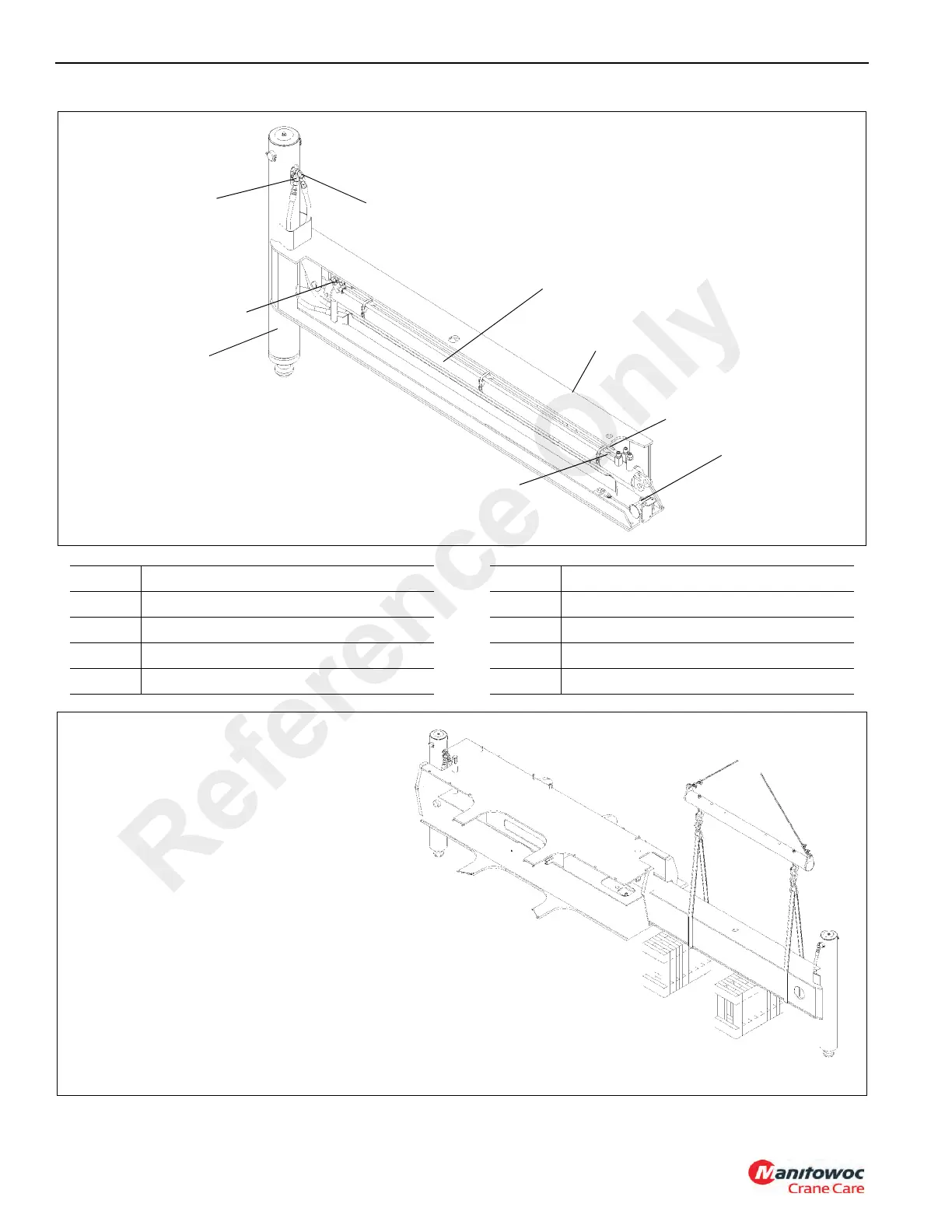

FIGURE 8-20 continued
6
8
8487
Item Description
1 Jack Cylinder
2 Extension Cylinder
3 Outrigger Beam
4 Jack Cylinder Extend Port
Item Description
5 Jack Cylinder Retract Port
6 Extension Cylinder Retract Port
7 Extension Cylinder Extend Port
8 OMS Potentiometer
NOTE: Outrigger removal and
installation similar for
both front and rear
outriggers.
NOTE: Lifting belts or straps
should be used for lifting
purposes so as to avoid
nicking or scratching the
bottom edges of the
outrigger beam.
FIGURE 8-21
8486
Reference Only
