Manitowoc Grove RT530E-2 Service And Maintenance Manual

Published 4-22-15, Control # 556-00 2-31
RT530E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE

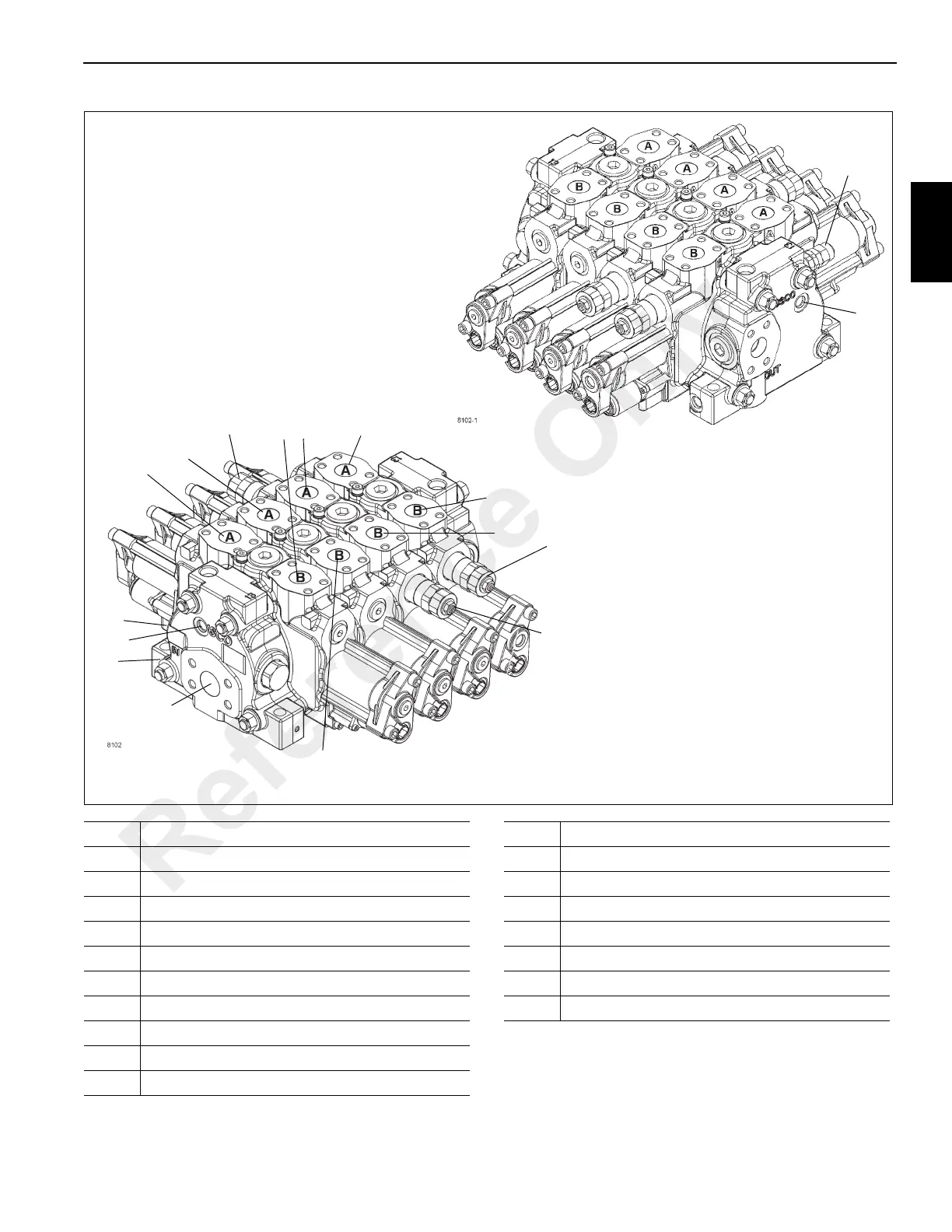

FIGURE 2-15
4
6
15
14
5
9
11
13
8
10
2
12
3
17
7
1
16
Item Description
1 Port 1A -Main Hoist Up
2 Port 1B - Main Hoist Down
3 Port 2A - Aux Hoist Up
4 Port 2B - Aux Hoist Down
5 Port 3A - Telescope Extend
6 Port 3B - Telescope Retract
7 Port 4A - Lift Up
8 Port 4B - Lift Down
9 Load Sense - Outlet Port
10 Port P1 - From Swivel Port 6
Item Description
11 Load Sense - Inlet Port
12 Port PS - Pilot Supply
13 Gauge Port
14 Relief Valve - Telescope Extend
15 Relief Valve - Telescope Retract
16 Relief Valve - Lift
17 Relief Valve - Load Sense
Reference Only
