HYDRAULIC SYSTEM RT530E-2 SERVICE MANUAL
2-42 Published 4-22-15, Control # 556-00

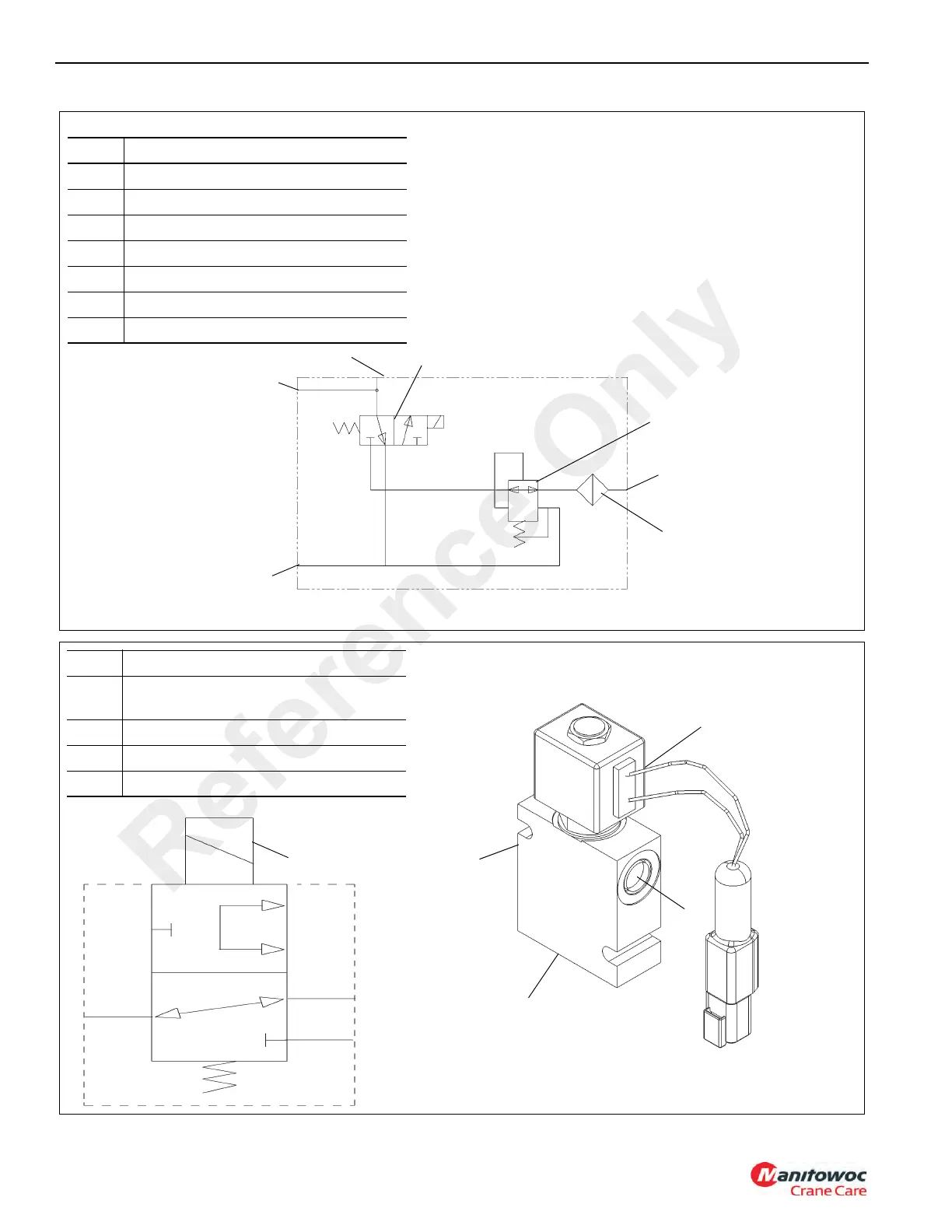

FIGURE 2-20
1
4
3
Item Description
1 Three-Way Solenoid Valve
2 Pressure Reducing Valve
3 Port P - From Pressure Port On Trans
4 Port C - To Diff Lock Actuator On Axles
5 Port T - To Tank Port On Transmission
6 Port G - Gauge Port
7 100 Mesh Screen
2
6718-2
Hydraulic Schematic
6
5
7
FIGURE 2-21
1
4
3
4
2
1
Item Description
1
Port 1 to Front and Rear Axle Differential
Lock Actuators
2 Port 2 to Park Brake/Shift Valve Port T
3 Port 3 to Park Brake/Shift Valve Port P
4 Solenoid Valve (Connector not shown)
2
8473
7011-2
Hydraulic Schematic
3
Reference Only
