OPERATING CONTROLS AND PROCEDURES RT530E-2 OPERATOR’S MANUAL
3-16 Published 5-3-2016, Control # 555-02
Pedal is not depressed prior to shifting to a gear, the
gear selection will flash in the CCS Display until the
Transmission Shift Lever is returned to the neutral (N)
position, and the transmission will not shift.
6. Release the Service Brake Foot Pedal and depress the
Foot Throttle Pedal until maximum first gear speed is
attained, then rotate the Transmission Shift Lever Knob
to the second (II) gear position to continue to increase
speed. For additional speed, continue shifting to a
higher gear.
Traveling — Reverse
Traveling in reverse is accomplished the same way as
traveling forward, except for shifting the Transmission Shift
Lever to reverse (R). Refer to Traveling — Forward, page 3-
15.
Steering
Steering is accomplished by the steering wheel and the rear
steer control. These controls, used singly or together,
provide front wheel steering, rear wheel steering, four-wheel

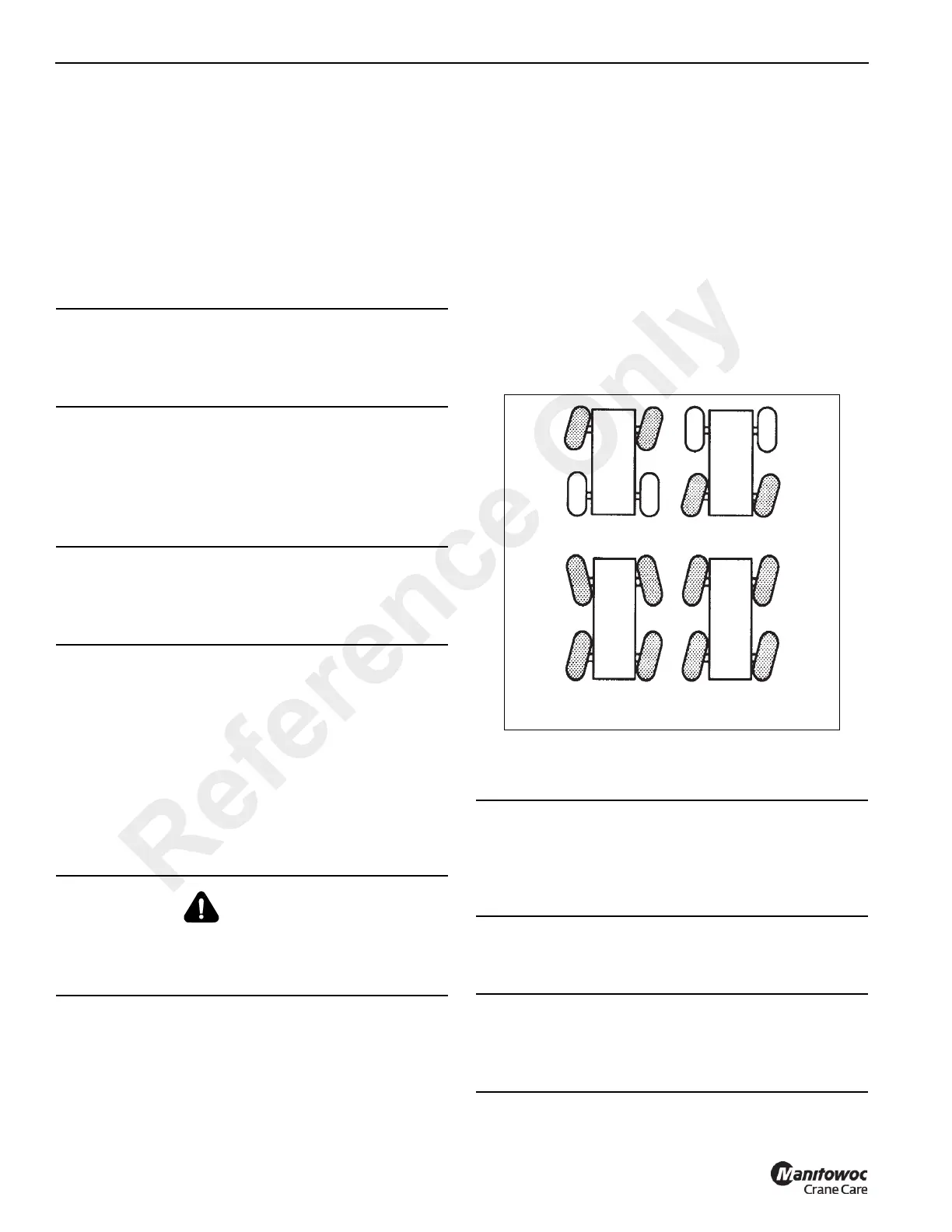

steering, and crabbing capabilities (Figure 3-8).
Front Wheel Steering
Conventional front wheel steering is accomplished with the
steering wheel. This method of steering should always be
used when traveling at higher speeds.
Rear Wheel Steering
Rear wheel steering is controlled by the Rear Steer Control
Switch. Moving the control switch to the desired position
activates the rear steer cylinders, thereby steering the crane
in the selected direction.
Four Wheel Steering
Four wheel steering is accomplished with the steering wheel
and the Rear Steer Control Switch. Depending upon which
direction the operator wishes to travel, the steering wheel is
turned opposite direction of the Rear Steer control position.
This allows the crane to turn or maneuver in close, restricted
areas.
Crabbing
Crabbing is accomplished with the steering wheel and the
Rear Steer Control Switch. Depending upon which direction
the operator wishes to travel (crab), the steering wheel is
turned in the same direction as the Rear Steer Control
Switch. This permits driving the crane forward or backward in
a crabbing manner.
Four-Wheel Drive Operation
If more traction is required due to slipping or spinning
wheels, engage the front axle drive as follows:
CAUTION
Possible Machine Damage!
Do not downshift to a lower gear if the road speed is
greater than the maximum speed of the lower gear.
CAUTION
Possible Machine Damage!
Apply service brakes and bring crane to a complete stop
before shifting transmission into reverse.
WARNING
Unexpected Operation Hazard!
Operate the rear steer ONLY at slow speeds for added job
site maneuverability.
CAUTION
Machine Damage Hazard!
Do not tow or pull in 1st gear with the Drive Axle Selector
Switch in two-wheel drive position. Severe damage to the
drive train will result. Always engage four-wheel drive.
CAUTION
Possible Machine Damage!
Before shifting from two-wheel drive to four-wheel drive
(or from four back to two), crane travel must be stopped.
Front-Wheel
Rear Wheel
Four-Wheel Crabbing
FIGURE 3-8
6402-1
6402-2
Reference Only
