SET-UP AND INSTALLATION PROCEDURES RT530E-2 OPERATOR’S MANUAL
4-2 Published 5-3-2016, Control # 555-02
CABLE REEVING
NOTE: The type of cable (wire rope) available on this
crane is 35 x 7 (non-rotating).
Within the limits of the load and range charts and permissible
line pull, multi-part lines allow the operator to raise a greater
load than can be raised with a single part line. Various cable
reeving (part line) is possible with the boom nose and hook
block. This reeving should be accomplished by a qualified
rigger using standard rigging procedures (Figure 4-3).

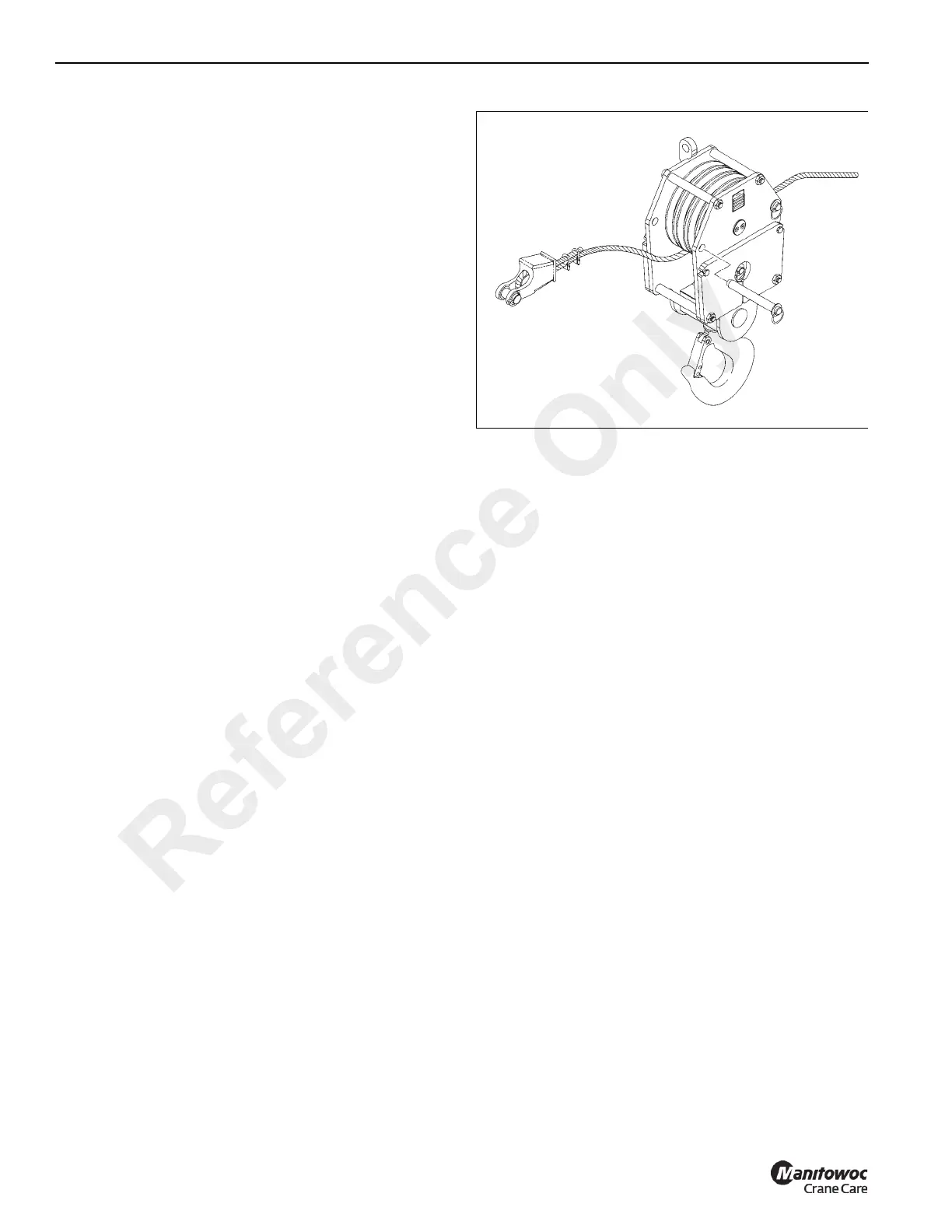

In order to quick reeve the hook block without removing the
wedge socket on the end of the cable, see (Figure 4-2).
