Published 5-3-2016, Control # 555-02 4-17
RT530E-2 OPERATOR’S MANUAL SET-UP AND INSTALLATION PROCEDURES
COUNTERWEIGHTS
Fixed Counterweight Description
The counterweight is pinned to the rear of the turntable and
weighs approximately 3817 kg (8416 lb). For cranes without
an auxiliary hoist, an additional 350.6 kg (773 lb)
counterweight is bolted to the hoist mounting area in lieu of
the auxiliary hoist.
Fixed Counterweight Removal
NOTE: Use of a forklift to remove/install the fixed
counterweight is not recommended.
NOTE: Refer to (Figure 4-15) for fabricated counterweight
and refer to (Figure 4-16) for cast counterweight
configurations.
DANGER
Death or serious injury could result from being crushed by
a falling counterweight.
DANGER
Ensure the primary retainer pin assembly is properly
installed to secure the counterweight.
6830

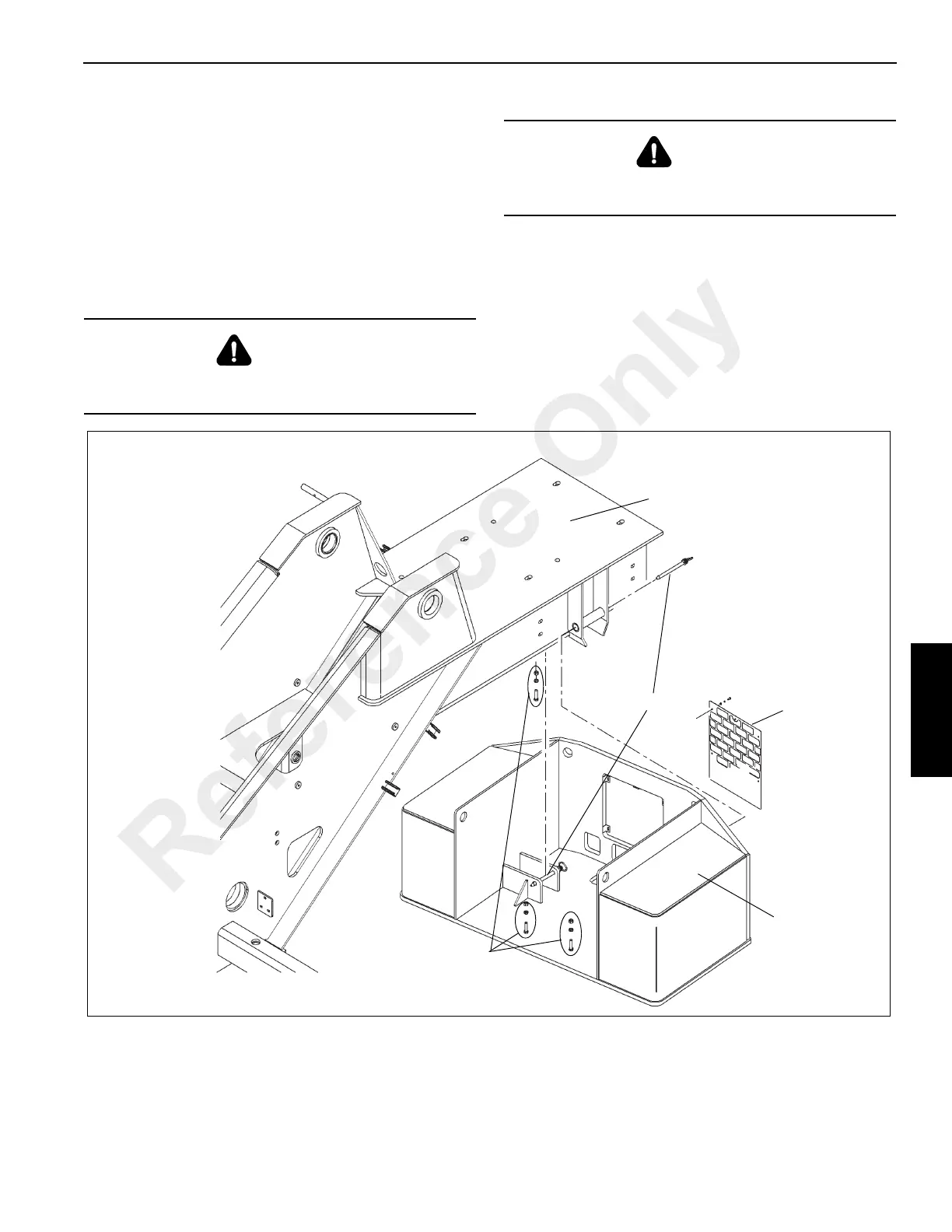

FIGURE 4-15
5
5
1
2
4
3
Fabricated Counterweight
6830-2
Reference Only
