GROVE Published 05-02-2018 Control # 088-10 1-3

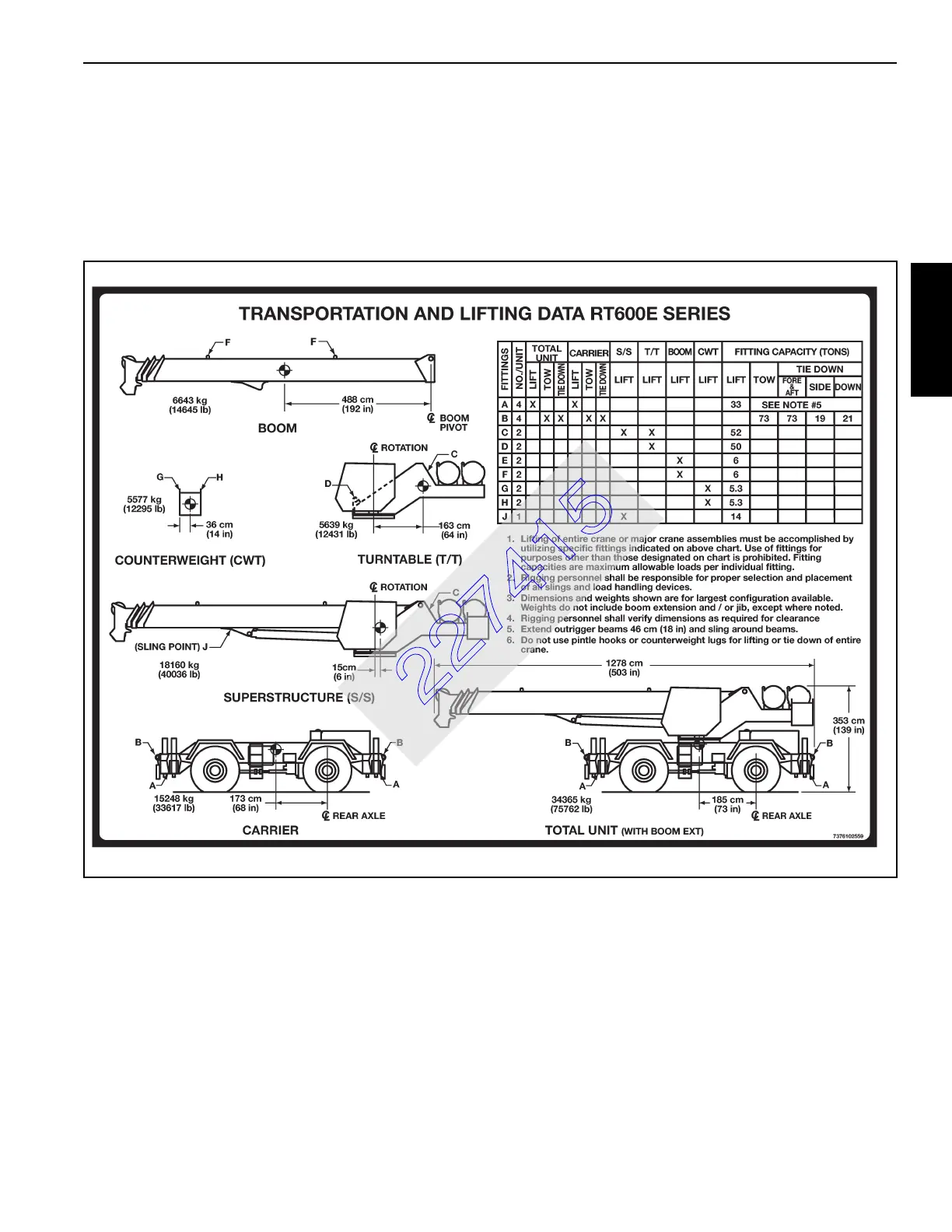

RT600E OPERATOR MANUAL INTRODUCTION
1
Pump #3
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gear
Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Output - @ 2781 rpm w/no load
Section 1 . . . . . . . . . . . . . . .102 l/min (27 gpm)
Hoists
Drum Dimensions
Diameter . . . . . . . . . . . . . . . . . . . 38 cm (15 in)
Length. . . . . . . . . . . . . . . . .46.7 cm (18-3/8 in)
Cable
Diameter . . . . . . . . . . . . . . . . . . 19 mm (3/4 in)
Length. . . . . . . . . . . . . . . . . . . . .137 m (450 ft)
Max. Permissible Line Pull (6x36)
. . . . . . . . . . . . . . . . . . . . . . . . . 74.7 kN (16,800 lb)
Max. Single Line Speed . . . .180.7 m/min (593 fpm)
Hoist Motor Displacement
. . . . . . . . . . . . . . 106.5 cm
3
(6.5 in
3
) per revolution
NOISE/VIBRATION TEST RESULTS
Noise Level Test Results
• When equipped with the CE certification package, the
guaranteed sound power level is L
wa
105 dB(A) as
measured by Directive 2000/14/EC and 80 db(A) at the
crane operator position as measured by Annex G.1 of
EN 13000:2010+A1:2014.
Vibration Level Test Results
• At the operator’s station with closed cab operation,
vibration levels are less than 0.5 m/s/s for Whole Body
Vibration exposure and are less than 2.5 m/s/s for Hand
Arm Vibration exposure when measured according to
89/392/EEC Community Legislation on Machinery per
standard ISO 2631/1 - Evaluation of Human Exposure to
Work Body Vibration, ISO 5349 - Guidelines for the
Measurement and Assessment of Human Exposure to
Hand Transmitted Vibrations, and ISO/DIS 8041 -
Human Response Vibration Measuring Instrumentation.
