RT765E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 9-04-2014, Control # 422-08

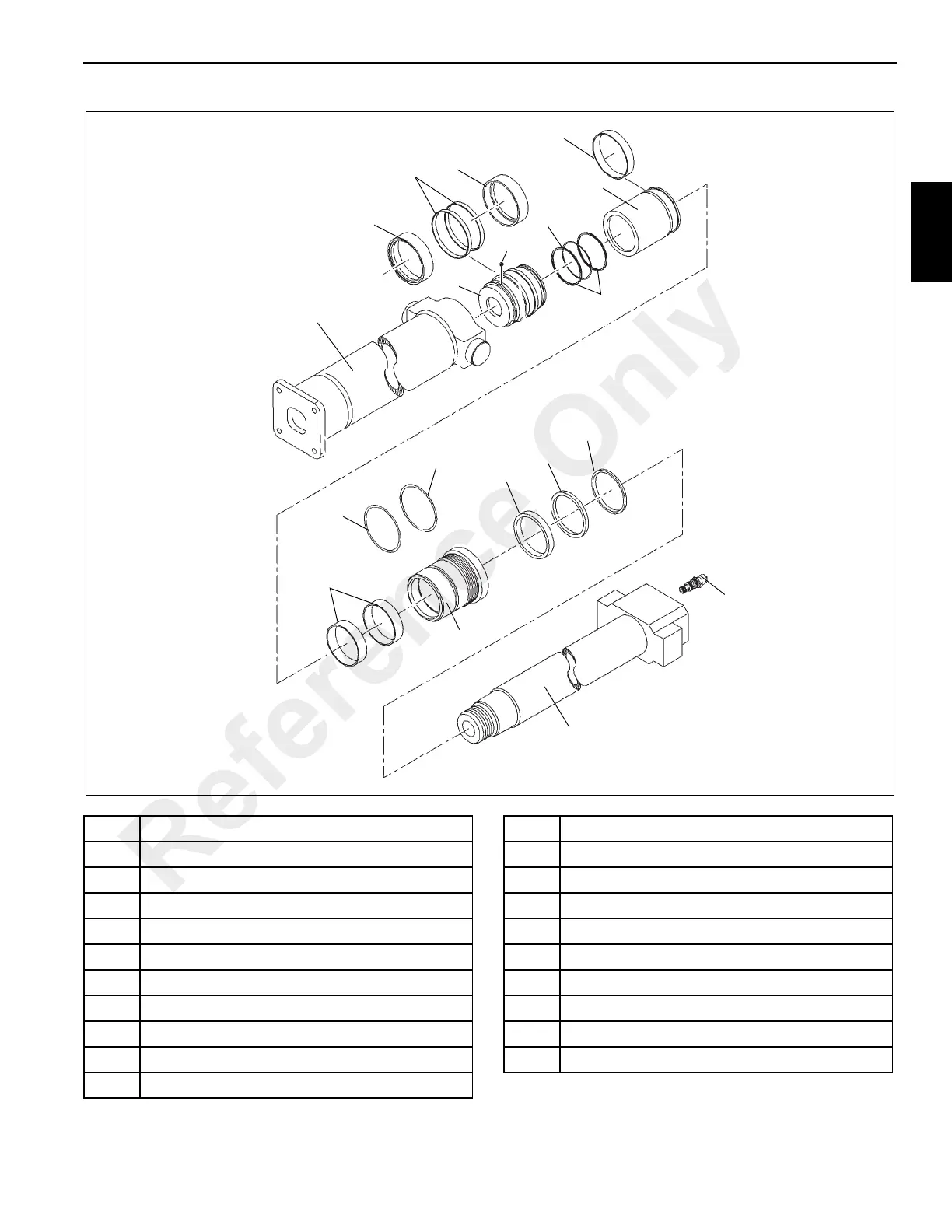

FIGURE 2-43
16
14
17, 18
13
12
11
10
9
15
8
6
5
3
4
2
1
7
4
19
8186-1
Item Description
1 Barrel
2Piston
3 Setscrew
4 Seal Assembly
5 Wear Ring
6O-ring
7 Backup Ring
8Spacer
9 Wiper Ring
10 Rod
Item Description
11 Head
12 Wear Ring
13 O-ring
14 Backup Ring
15 Backup Ring
16 Rod Seal
17 Counterbalance Valve
18 Adapter
19 Wear Ring
Reference Only
