Hoists
Drum Dimensions
Diameter . . . . . . . . . . . . . . . . . 15 in (381 mm)
Length (Standard) . . . . . . . .18.38 in (467 mm)
Cable
Diameter . . . . . . . . . . . . . . . . .0.75 in (19 mm)
Length-Main. . . . . . . . . . . . . . . . 650 ft (198 m)
Length-Aux. . . . . . . . . . . . . . . . . 653 ft (199 m)
Max. Permissible Line Pull (6x36)
. . . . . . . . . . . . . . . . . . . . . . . . . 16,800 lb (74.7 kN)
Max. Single Line Speed . . . . .500 fpm (153 m/min)

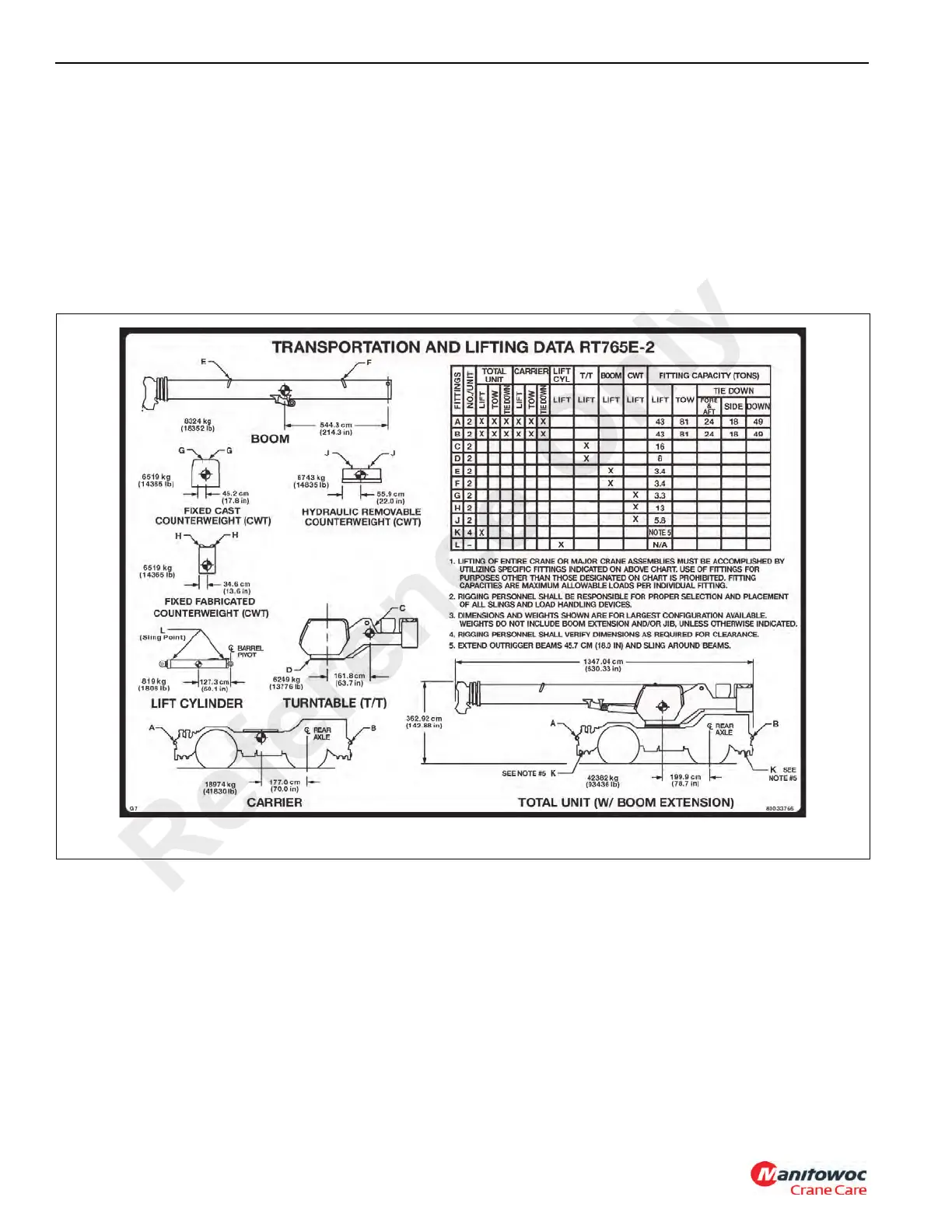

FIGURE 1-1
7919
