HYDRAULIC SYSTEM RT765E-2 SERVICE MANUAL
2-76
Published 9-04-2014, Control # 422-08

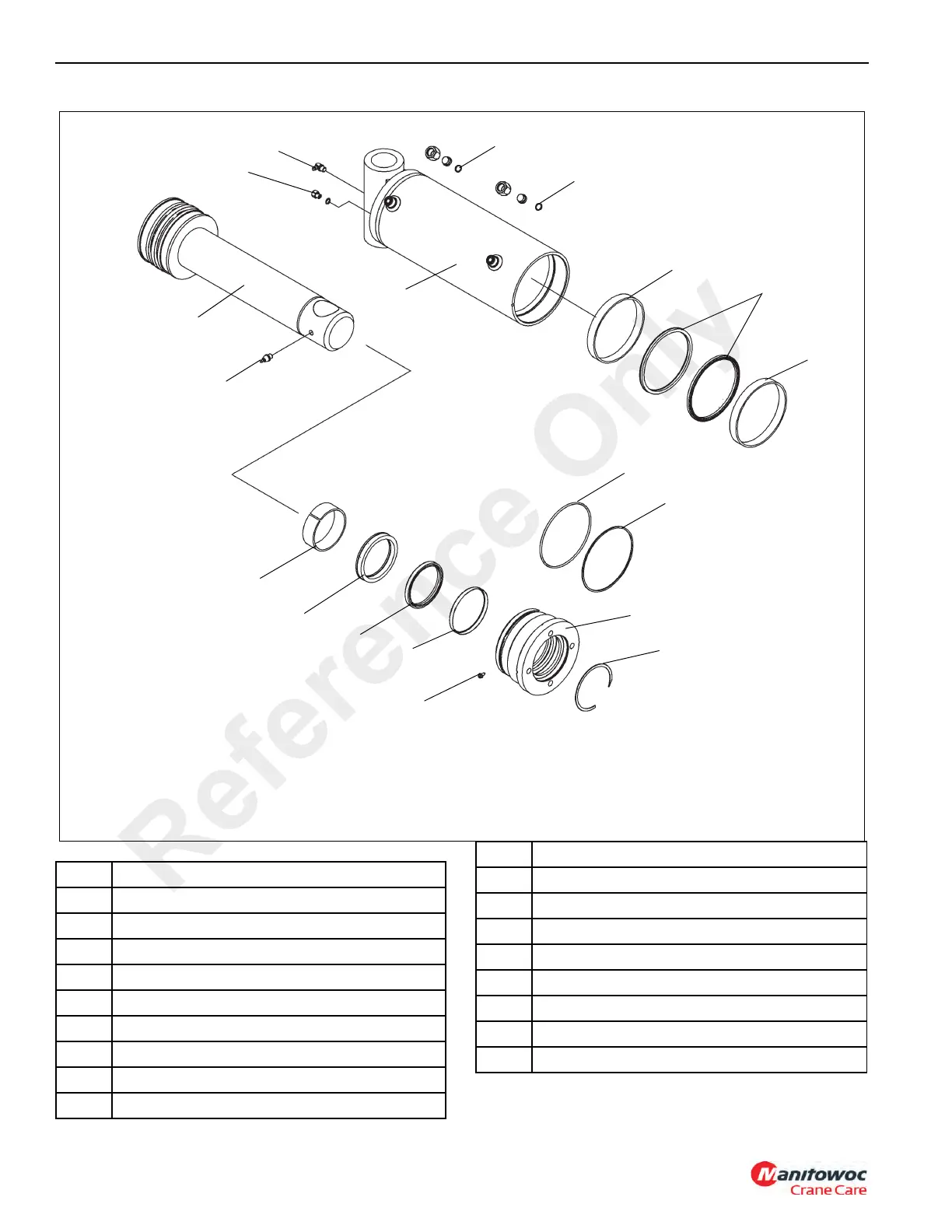

FIGURE 2-46
6731
3
7
8
4
6
2
9
17
10
5
11
1
12
13
14
15
16
17
5
Item Description
1 Barrel
2Rod
3 Head
4 Lip Seal
5 Wear Ring
6O-ring
7 Backup Ring
8 Wear Ring
9 Buffer Seal
Item Description
10 Lip Seal
11 Wiper Ring
12 Retainer Ring
13 Bleeder Plug
14 Grease Fitting
15 Grease Fitting
16 Setscrew
17 O-ring
