HYDRAULIC SYSTEM RT765E-2 SERVICE MANUAL
2-82
Published 9-04-2014, Control # 422-08

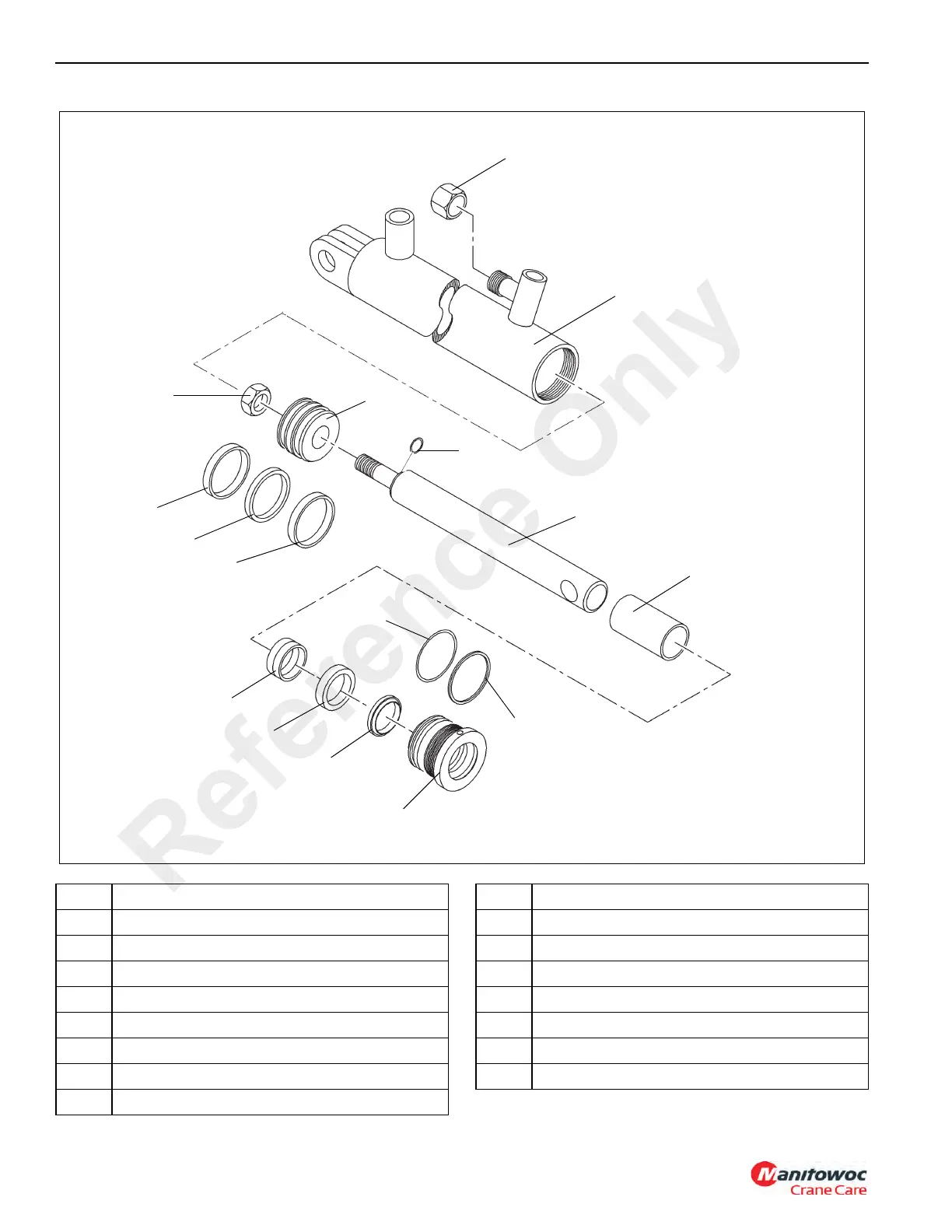

FIGURE 2-48
14
13
12
11
10
8
9
1
2
3
4
5
6
7
6931
15
8
Item Description
1 Barrel
2Rod
3Piston
4 Head
5Spacer
6Nut
7 Piston Seal
8 Wear Ring
Item Description
9O-ring
10 O-ring
11 Backup Ring
12 Rod Seal
13 Wiper Ring
14 Wear Ring
15 Cap
Reference Only
