Page #123 background image
2-85
GROVE
RT765E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
Published 9-04-2014, Control # 422-08

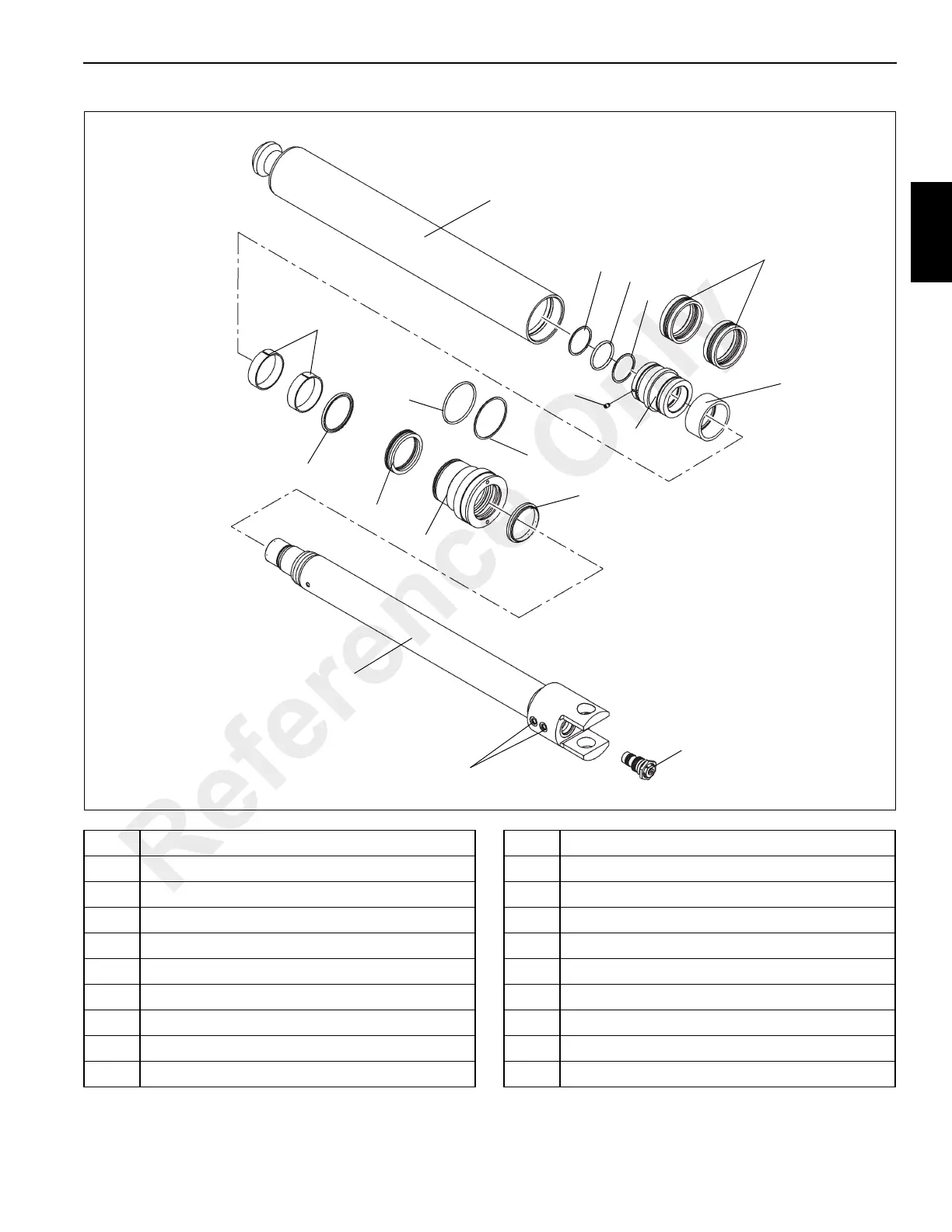

FIGURE 2-49
6801
4
3
1
6
2
5
9
16
12
15
14
13
18
10
10
11
17
7, 8
Item Description
1 Barrel
2Rod
3 Head
4Piston
5Spacer
6 Check Valve
7 Setscrew
8 Nylon Insert
9Plug
Item Description
10 Backup Ring
11 O-ring
12 Wiper Ring
13 Rod Seal
14 Buffer Seal
15 Wear RIng
16 O-ring
17 Backup Ring
18 Seal
Reference Only
