HYDRAULIC SYSTEM RT765E-2 SERVICE MANUAL
2-88
Published 9-04-2014, Control # 422-08

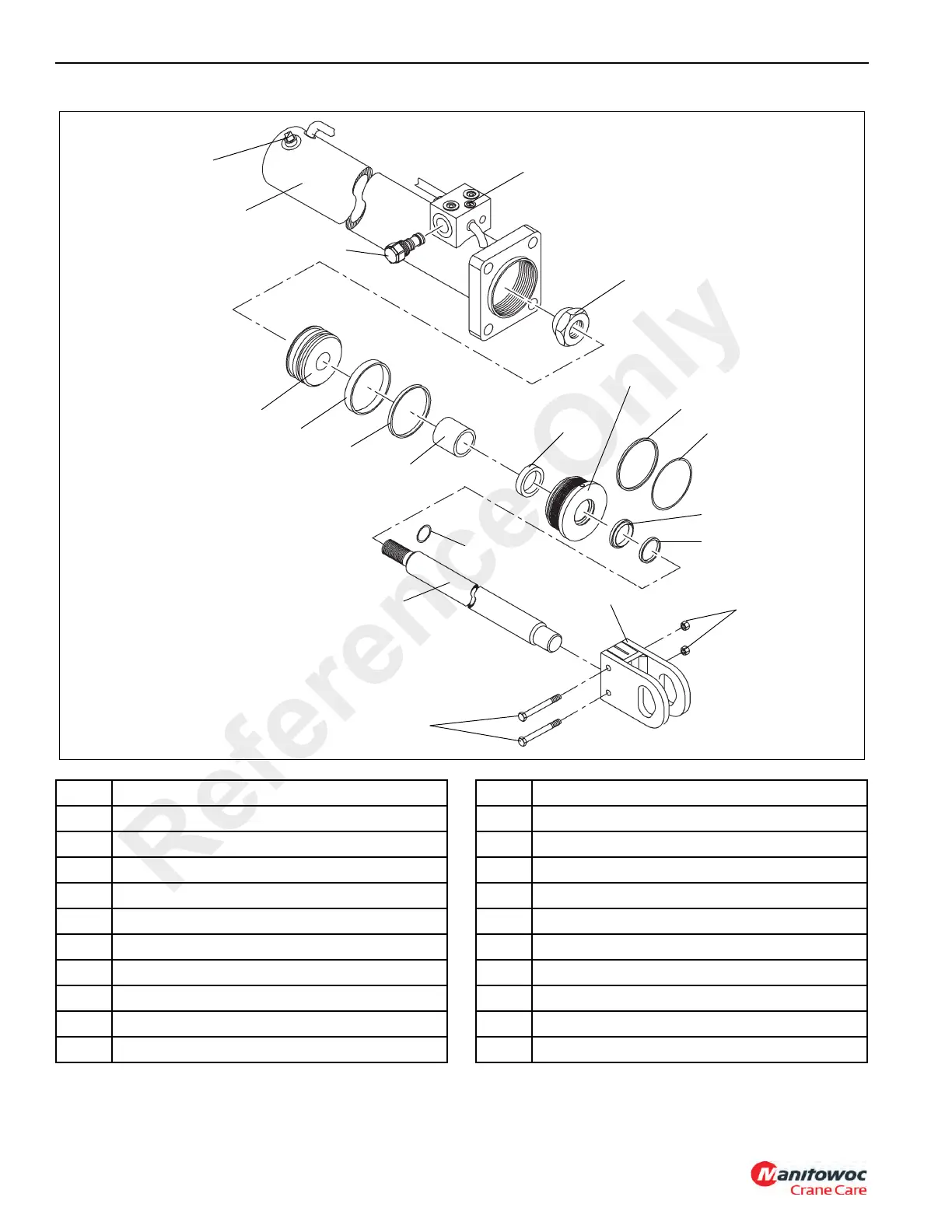

FIGURE 2-50
17
18
1
7
19
8
5
10
11
12
14
13
15
16
2
4
6
9
7347
20
3
Item Description
1 Barrel
2Rod
3 Head
4 Lug
5Piston
6Spacer
7Nut
8Bolt
9 Locknut
10 Holding Valve
Item Description
11 O-ring
12 Wear Ring
13 Piston Seal
14 O-ring
15 Backup Ring
16 Rod Seal
17 Wiper Ring
18 Bleeder Plug
19 Plug
20 O-ring
Reference Only
