POWER TRAIN RT765E-2 SERVICE MANUAL
7-10
Published 9-04-2014, Control # 422-08

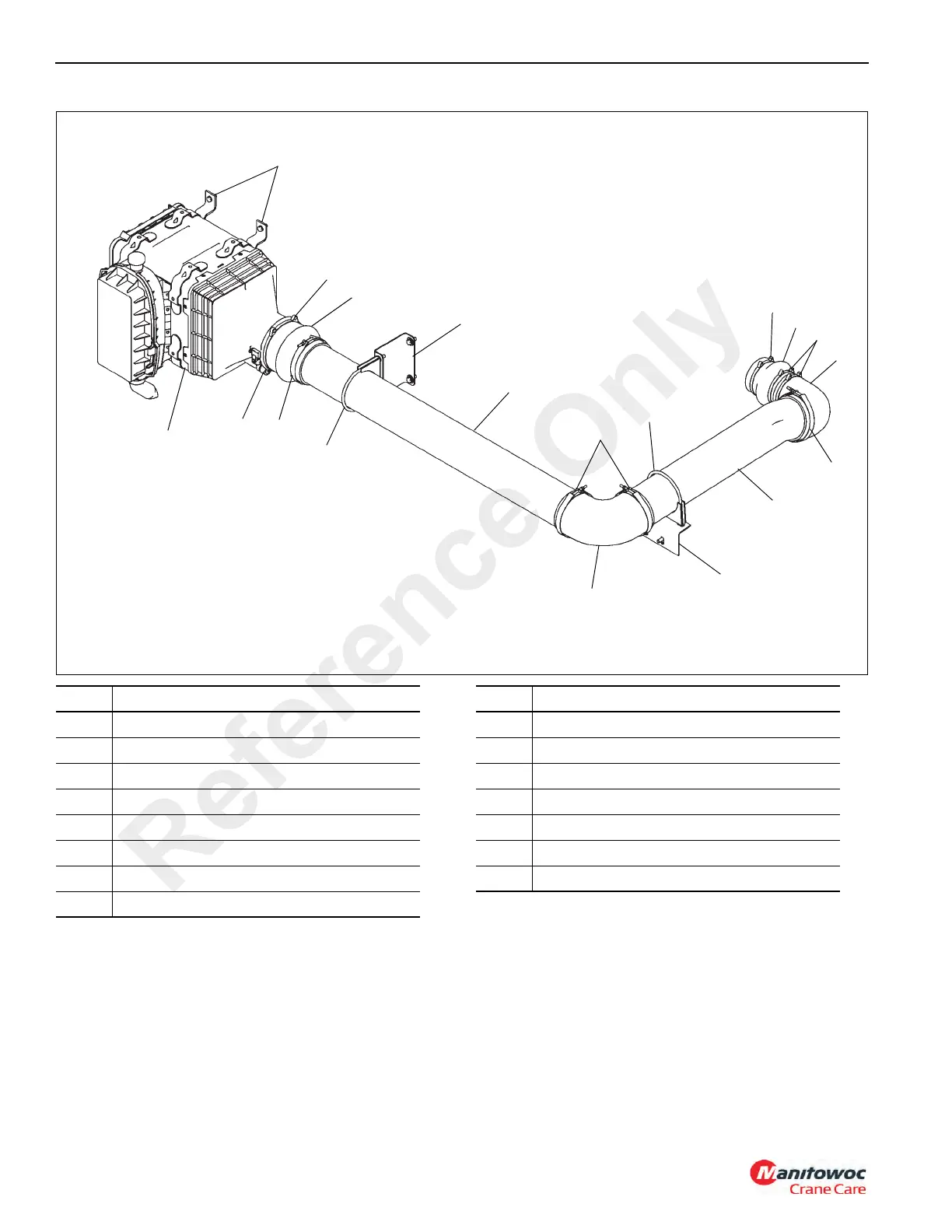

Air Intake Installation - Typical
FIGURE 7-3
6
10
7
11
14
15
8
12
9
13
1
5
2
3
4
6
7
6
14
7841
Item Description
1 Air Cleaner Assembly
2 Mounting Bracket
3Clamp
4 Service (Restriction) Indicator
5 Reducer
6Clamp
7 Muffler Clamp
8 Mounting Bracket
Item Description
9 5 in Air intake Tube
10 Adapter
11 Bracket
12 Air Intake Tube
13 Elbow
14 T-bolt clamp
15 Adapter
Reference Only
